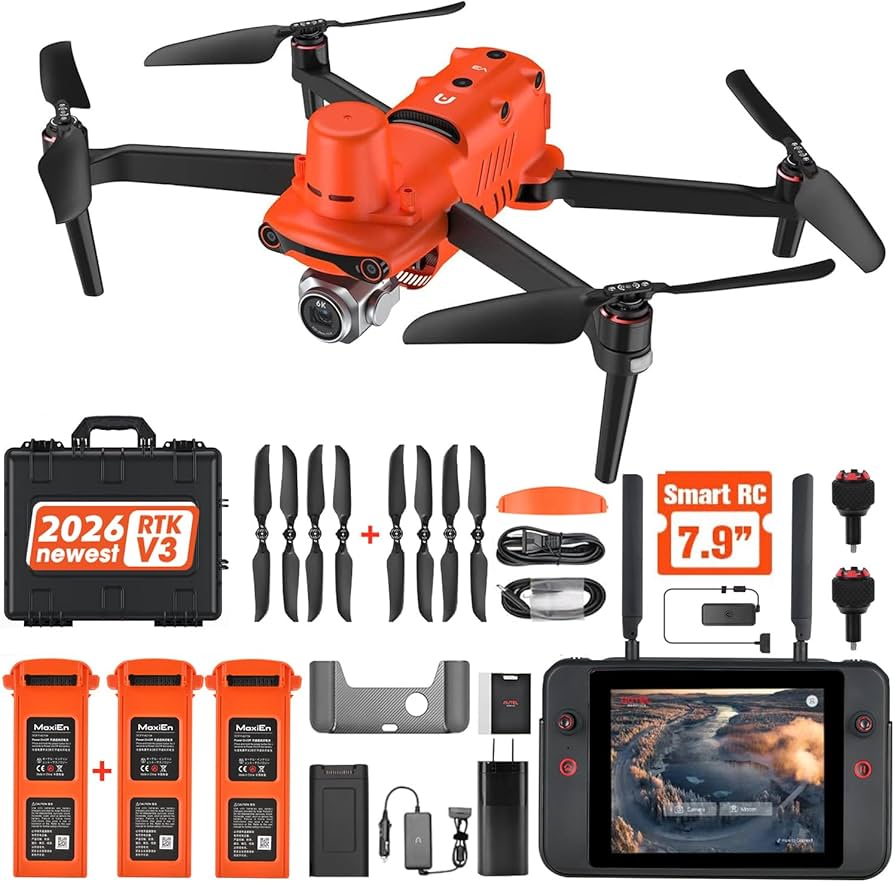

Autel Robotics EVO II RTK V3 Drone

The Autel Robotics EVO II RTK Series V3 is a drone from Autel Robotics — known for its RTK Positioning System and 1-Inch CMOS Sensor. Check GearFocus for current availability, with buyer protection on every purchase.

Autel Robotics EVO II RTK V3 Drone

Autel Robotics EVO II RTK V3 Drone

Get notified when one lists.

We'll text or email you the moment a Autel Robotics EVO II RTK V3 Drone is listed on GearFocus.

Have a Autel Robotics EVO II RTK Series V3 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Autel Robotics EVO II RTK Series V3 on GearFocus

Drone Overview — Autel Robotics EVO II RTK Series V3

The Autel Robotics EVO II RTK V3 is a professional-grade drone built around a 1-inch sensor capable of capturing 20MP stills and 6K video. The imaging system supports an ISO range of 100 to 44000, giving shooters considerable flexibility across varied lighting conditions. Video recording tops out at 6K with frame rate options of 24fps, 30fps, and 60fps at 8-bit color depth, with color profile support for Standard.

Footage and stills are stabilized by a 3-axis mechanical gimbal, providing smooth aerial imagery without relying on digital correction. The drone weighs 1,237g and measures 457×558×143mm when unfolded, folding down to a more portable 230×130×143mm. The composite body carries a Weather Sealed rating, making it suitable for demanding field conditions.

Power comes from a Li-Po 5,800mAh battery. The included remote controller features a built-in 7.9-inch touch screen display running at 2048×1536 resolution and a 60Hz refresh rate, eliminating the need for a separate mobile device. Connectivity options include Wi-Fi, USB, and HDMI output.

Storage is handled via internal storage, and shooting modes include Burst shooting, AEB, Time Lapse, and HDR.

Key Features — Autel Robotics EVO II RTK Series V3

RTK Positioning System: Centimeter-level GPS accuracy makes this drone suitable for surveying, mapping, and precision aerial data collection.

1-Inch CMOS Sensor: Larger sensor area captures more light and detail than typical drone sensors, improving image quality across a range of conditions.

6K Video Recording: Records up to 6K resolution video with multiple frame rate options, providing high-resolution footage with flexibility for post-production cropping and stabilization.

Wide ISO Range: Broad sensitivity range gives shooters usable exposure options from bright daylight through low-light environments.

3-Axis Mechanical Gimbal: Hardware-based stabilization keeps footage smooth during flight without the field-of-view crop that digital stabilization introduces.

Built-In Controller Display: The remote controller includes a large integrated touch screen so no separate mobile device or mount is needed in the field.

Drone Specifications — Autel Robotics EVO II RTK Series V3

Autel Robotics EVO II RTK Series V3 full specifications
SpecDetail
Use CasesReal Estate, Documentary, Aerial / Drone
Iso min100
Iso max44000
Flash SystemNone
Display size7.9-inch
Display typeTouch Screen
Display resolution2048x1536
TypeDrone
Autofocus systemAutofocus
Autofocus eye TrackingNo
Autofocus focus Points0.5m to infinity
Autofocus subject TrackingNo

Description — Autel Robotics EVO II RTK Series V3

The Autel Robotics EVO II RTK V3 pairs a 1-inch sensor with 20MP photo resolution and 6K video capability, making it a capable tool for professional aerial imaging work. The camera's ISO 100–44000 range provides broad exposure flexibility, while video can be captured at 24fps, 30fps, or 60fps in 8-bit depth. Stabilization is handled entirely in hardware via a 3-axis mechanical gimbal, ensuring smooth footage without relying on digital processing.

The drone's composite body is rated Weather Sealed and weighs 1,237g, unfolding to 457×558×143mm for flight and collapsing to 230×130×143mm for transport. The remote controller integrates a 7.9-inch touch screen with 2048×1536 resolution at 60Hz, so operators have a clear, responsive view without needing a separate device. Connectivity includes Wi-Fi, USB, and HDMI output.

The Li-Po 5,800mAh battery powers extended sessions, and shooting flexibility is expanded through Burst shooting, AEB, Time Lapse, and HDR modes. Storage is managed via internal storage.

Pros — Autel Robotics EVO II RTK Series V3

  • ✓1-inch sensor delivers 20MP stills and 6K video resolution
  • ✓Wide ISO range of 100–44000 for flexible exposure control
  • ✓3-axis mechanical gimbal provides hardware-based stabilization without digital cropping

Cons — Autel Robotics EVO II RTK Series V3

  • ✗Video is limited to 8-bit color depth, with only a Standard color profile available
  • ✗No Bluetooth connectivity on the remote controller
  • ✗Storage relies solely on internal storage with no mention of external card slot support

Videos — Autel Robotics EVO II RTK Series V3

DJI Mavic 3 vs Autel EVO II Pro in the Colorado Winter Mountains — Ed Ricker

Resources & Downloads — Autel Robotics EVO II RTK Series V3

Manuals & Guides

Frequently Asked Questions — Autel Robotics EVO II RTK Series V3

What video resolutions and frame rates does the EVO II RTK V3 support?+
The drone records up to 6K maximum resolution. Supported frame rates are 24fps, 30fps, and 60fps. All video is captured at 8-bit color depth with a Standard color profile.
Does the remote controller require a smartphone or tablet?+
No. The remote controller includes a built-in 7.9-inch touch screen display with a 2048×1536 resolution and 60Hz refresh rate, so no additional device is needed for operation.
Is the drone suitable for use in rain or dusty environments?+
The EVO II RTK V3 body is rated Weather Sealed and constructed from composite material, making it designed to handle challenging field conditions. Always consult Autel Robotics guidelines for specific environmental limits.
What is the ISO range on the camera?+
The sensor supports an ISO range from 100 to 44000, providing flexibility for shooting in both bright daylight and lower-light environments.
What shooting modes are available for photos?+
Photo shooting modes include Burst shooting, AEB (Auto Exposure Bracketing), Time Lapse, and HDR. The camera also supports Autofocus with a focus range of 0.5m to infinity.
How does the drone handle image stabilization?+
The EVO II RTK V3 uses a 3-axis mechanical gimbal for stabilization. Digital image stabilization is not employed, meaning the full sensor output is used without any digital crop.
