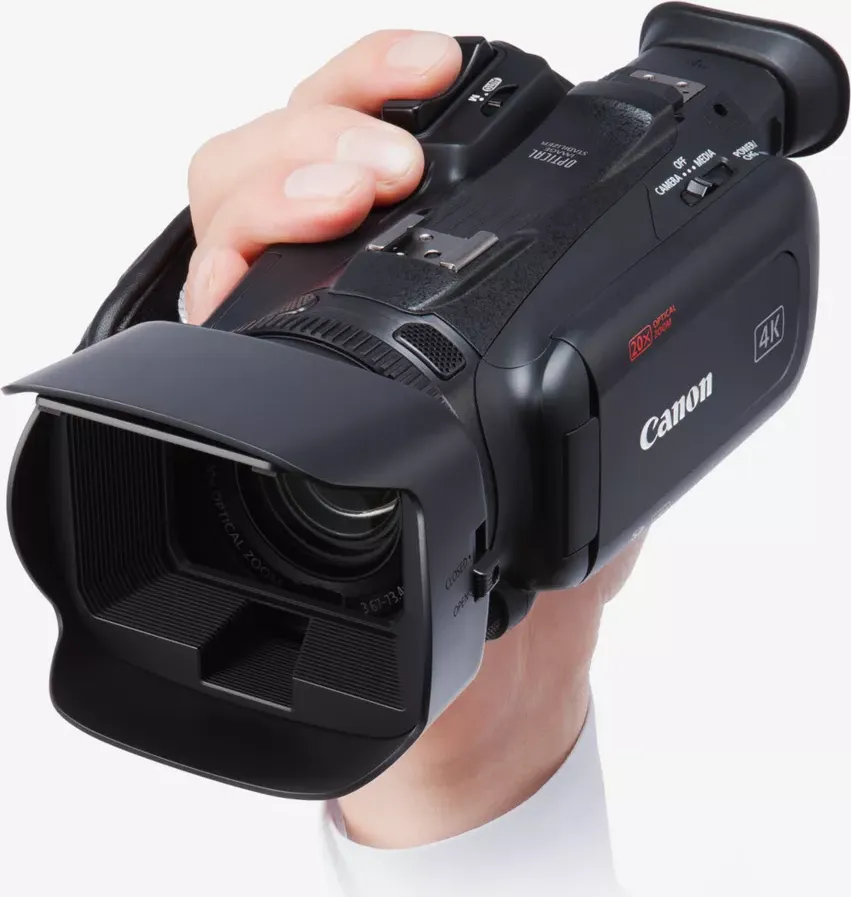

Canon XA40 Professional Camcorder
The Canon XA40 is a 8.29 MP effective 1/2.3 inch cinema camera — with 4K video. Check GearFocus for current availability, with buyer protection on every purchase.
Canon XA40 Professional Camcorder
Get notified when one lists.
We'll text or email you the moment a Canon XA40 Professional Camcorder is listed on GearFocus.
Have a Canon XA40 sitting in your bag?
You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.
Available Now on GearFocus
Canon EOS C300 Mark II Cinema Package w/ Rokinon Cine DS 4-Lens Set & Jason Case
Camera Overview — Canon XA40
Key Features — Canon XA40
UHD 4K Video Recording: Records at up to 3840x2160 resolution; available frame rates include 23.976, 25, 29.97, 50, and 59.94fps depending on region and mode.
1/2.3-Inch CMOS Sensor: 8.29MP effective resolution sensor paired with a DIGIC DV 6 processor handles the full video pipeline from capture to encoding.
Dual XLR Inputs with Phantom Power: Two XLR ports with 48V phantom power support professional condenser microphones and balanced audio sources directly without an external preamp.
Optical Image Stabilization: Built-in OIS compensates for camera shake during handheld shooting, with an additional Dynamic IS mode for more aggressive stabilization while walking.
Hybrid Autofocus System: Combines Phase Detection and Contrast Detection AF with Face Detection and subject tracking for reliable focus during run-and-gun and event shooting.
High-Resolution EVF: 0.24-inch electronic viewfinder at 1,560,000 dots provides a detailed monitoring option when shooting in bright outdoor conditions.
Camera Specifications — Canon XA40
| Spec | Detail |
|---|---|
| Use Cases | Documentary |
| Type | Other |
| Sensor | 1/2.3 inch |
| Resolution | 8.29 MP effective |
| Processor | DIGIC DV 6 |
| ISO Range | 100 – 3200 |
| AF System | Hybrid (Phase + Contrast), Face Detection AF |
| AF Points | Touchscreen selectable |
| Max Video Resolution | 4K |
| Max Frame Rate | 59.94fps |
| Bit Depth | 8-bit |
| Video Color Profiles | Standard |
Description — Canon XA40
The Canon XA40 Professional Camcorder pairs a 1/2.3-inch sensor producing 8.29 MP effective resolution with the DIGIC DV 6 image processor to deliver 4K video across a versatile range of frame rates: 23.976fps, 24fps, 25fps, 29.97fps, 50fps, and 59.94fps. Video is captured at 8-bit color depth with a Standard color profile. The Hybrid autofocus system — combining Phase Detection and Contrast Detection — works alongside Face Detection AF and subject tracking for confident focus in dynamic shooting situations, with focus points selectable on the 3.0-inch capacitive touchscreen LCD (460,000 dots).
A 0.24-inch electronic viewfinder at 1,560,000 dots gives videographers a high-resolution eye-level monitoring option. Image stabilization is available through Optical (OIS) and Digital IS modes. For audio, the XA40 provides two XLR inputs with phantom power and a 3.5mm stereo microphone jack, paired with a 3.5mm headphone jack for monitoring.
Video output runs through Micro HDMI. The plastic composite body weighs 730g and measures 109 x 84 x 182 mm, with storage handled by SD, SDHC, and SDXC cards.
Pros — Canon XA40
- ✓4K maximum video resolution with a broad frame rate selection including 23.976fps, 24fps, 25fps, 29.97fps, 50fps, and 59.94fps
- ✓Dual XLR inputs with phantom power plus a 3.5mm mic jack provide flexible professional audio connectivity
- ✓Hybrid autofocus (Phase + Contrast Detection) with Face Detection AF and subject tracking for reliable focus acquisition
Cons — Canon XA40
- ✗No weather sealing, limiting use in challenging outdoor environments
- ✗8-bit color depth and a single Standard color profile restrict grading flexibility in post-production
- ✗1/2.3-inch sensor size is relatively small, which can affect low-light performance; ISO tops out at 3200
