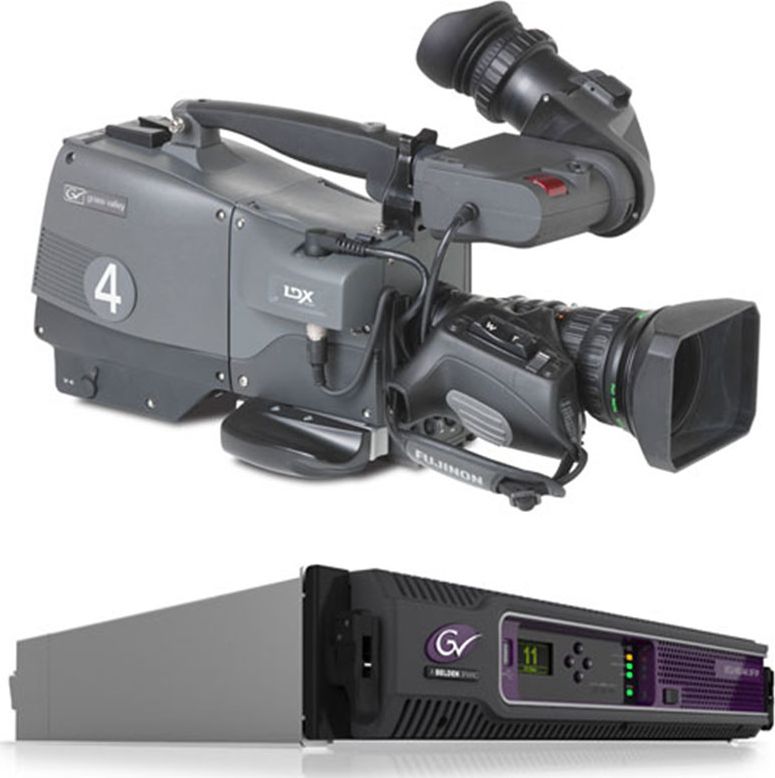

Grass Valley LDX 80 Professional Studio Camera

The Grass Valley LDX 80 is a 1920x1080 (Full HD, 2.07 megapixels per sensor, 3 sensors) 2/3 inch cinema camera — with 1920x1080 video. Check GearFocus for current availability, with buyer protection on every purchase.

Grass Valley LDX 80 Professional Studio Camera

Grass Valley LDX 80 Professional Studio Camera

Get notified when one lists.

We'll text or email you the moment a Grass Valley LDX 80 Professional Studio Camera is listed on GearFocus.

Have a Grass Valley LDX 80 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Grass Valley LDX 80 on GearFocus

Camera Overview — Grass Valley LDX 80

The Grass Valley LDX 80 is a professional studio camera built for broadcast and studio production environments. At its core is a three-sensor configuration, with each 2/3-inch sensor delivering 1920x1080 resolution — totaling 2.07 megapixels per sensor across the three-sensor array. Image processing is handled by Grass Valley's Xensium-FT processor, which drives the camera's TrueTexture color profile for consistent, broadcast-ready imagery.

The LDX 80 supports full HD video output at 1920x1080, with frame rate options covering 1080i50, 1080i59.94, 720p50, and 720p59.94 — a range that covers the major international broadcast standards. The camera connects to an optional external viewfinder via a 20-pin or HDMI connector, giving operators flexibility in how they configure their rig. Power comes from a standard 12V DC supply over a 4-pin XLR connector, accepting a range of 11–17V for compatibility with typical broadcast power systems.

USB connectivity is included. The lens mount uses a Bayonet-style fitting, standard for broadcast studio lenses. Dimensions are 170mm (W) x 200mm (D) x 180mm (H) and the body weighs 2.5 kg, making it a compact but capable studio head.

Key Features — Grass Valley LDX 80

Three 2/3-Inch Sensors: A dedicated 2/3-inch sensor per color channel delivers 1920x1080 resolution per sensor, meeting broadcast-grade image quality standards.

Xensium-FT Image Processor: Grass Valley's Xensium-FT processor handles real-time image processing for consistent, production-ready output.

TrueTexture Color Profile: Grass Valley's TrueTexture rendering maintains natural skin tones and color accuracy across varying studio lighting conditions.

International Broadcast Frame Rates: Supports 1080i50, 1080i59.94, 720p50, and 720p59.94 to cover major broadcast standards across different regions.

B4 Bayonet Lens Mount: Industry-standard 2/3-inch B4 bayonet mount is compatible with a wide range of broadcast studio lenses from major manufacturers.

4-Pin XLR Power Input: Accepts 12V DC between 11–17V via 4-pin XLR, compatible with standard broadcast power supplies and camera chains.

Camera Specifications — Grass Valley LDX 80

Grass Valley LDX 80 full specifications
SpecDetail
Use CasesSports
TypeOther
Sensor2/3 inch
Resolution1920x1080 (Full HD, 2.07 megapixels per sensor, 3 sensors)
ProcessorXensium-FT
AF SystemManual Focus Only
Max Video Resolution1920x1080
Max Frame Rate60fps
Video Color ProfilesTrueTexture
ViewfinderExternal (optional, via 20-pin or HDMI connector)
HDMIHDMI (for viewfinder)
Battery12V DC (11–17V), 4-pin XLR

Description — Grass Valley LDX 80

The Grass Valley LDX 80 is a professional studio camera designed around a three-sensor, 2/3-inch configuration, with each sensor resolving at 1920x1080 (2.07 megapixels). The Xensium-FT image processor handles signal processing and supports the TrueTexture color profile for accurate, broadcast-ready color reproduction. Video output covers the major broadcast standards: 1080i50, 1080i59.94, 720p50, and 720p59.94, with a maximum frame rate of 60fps.

The camera accepts power from a 4-pin XLR 12V DC source in the range of 11–17V, standard across professional broadcast infrastructure. Lens changes are handled via a Bayonet mount. An external viewfinder can be connected via a 20-pin or HDMI connector, with HDMI also listed as a dedicated viewfinder output.

The body measures 170mm x 200mm x 180mm and weighs 2.5 kg. USB connectivity is present, while WiFi and Bluetooth are not included. The LDX 80 is purpose-built for controlled studio production environments requiring reliable HD broadcast output.

Pros — Grass Valley LDX 80

  • ✓Three-sensor 2/3-inch configuration delivers 1920x1080 per sensor (2.07 megapixels per sensor) for dedicated broadcast-grade image capture
  • ✓Xensium-FT image processor with TrueTexture color profile for consistent, production-ready color rendering
  • ✓Broad frame rate support covering 1080i50, 1080i59.94, 720p50, and 720p59.94 for international broadcast compatibility

Cons — Grass Valley LDX 80

  • ✗Maximum video resolution is 1920x1080 Full HD — no 4K or higher resolution output indicated in specifications
  • ✗No built-in viewfinder; external viewfinder is optional and requires additional hardware via 20-pin or HDMI connection
  • ✗No WiFi or Bluetooth connectivity listed in specifications

Videos — Grass Valley LDX 80

Operating Monstrous Broadcast TV Camera and It's AWESOME | by Art Freeman — HUSTL Media Productions

Resources & Downloads — Grass Valley LDX 80

Manuals & Guides

Frequently Asked Questions — Grass Valley LDX 80

What sensor configuration does the Grass Valley LDX 80 use?+
The LDX 80 uses a three-sensor setup, with each sensor being a 2/3-inch type capable of 1920x1080 resolution at 2.07 megapixels per sensor. Image processing across all three sensors is handled by the Xensium-FT processor.
What frame rates does the LDX 80 support?+
The camera supports 1080i50, 1080i59.94, 720p50, and 720p59.94, with a maximum frame rate of 60fps. This covers the primary broadcast frame rate standards used in both PAL and NTSC regions.
How is the LDX 80 powered?+
The camera is powered via a 4-pin XLR connector accepting 12V DC in the range of 11–17V, which is consistent with standard broadcast and studio power distribution systems.
Does the LDX 80 have a built-in viewfinder?+
No, the viewfinder is external and optional. It connects to the camera via either a 20-pin connector or an HDMI output designated for viewfinder use.
What lens mount does the LDX 80 use?+
The LDX 80 uses a Bayonet-style lens mount, which is standard for broadcast studio camera lenses.
What are the physical dimensions and weight of the LDX 80?+
The camera body measures 170mm (W) x 200mm (D) x 180mm (H) and weighs 2.5 kg, making it a relatively compact studio camera head.
