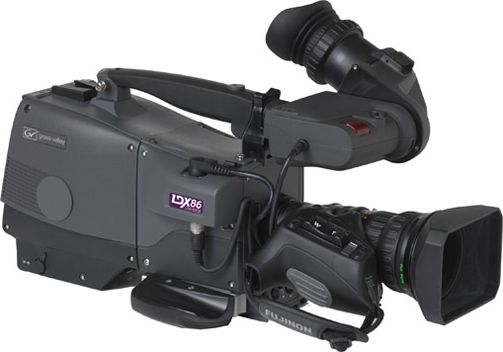

Grass Valley LDX 86 Studio Broadcast Camera

The Grass Valley LDX 86 is a 3840 x 2160 (4K UHD), 1920 x 1080 (HD) 2/3 inch cinema camera — with 4K video. Check GearFocus for current availability, with buyer protection on every purchase.

Grass Valley LDX 86 Studio Broadcast Camera

Grass Valley LDX 86 Studio Broadcast Camera

Get notified when one lists.

We'll text or email you the moment a Grass Valley LDX 86 Studio Broadcast Camera is listed on GearFocus.

Have a Grass Valley LDX 86 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Grass Valley LDX 86 on GearFocus

Camera Overview — Grass Valley LDX 86

The Grass Valley LDX 86 Studio Broadcast Camera is a professional-grade studio camera built for demanding live production environments. At its core is a 2/3-inch sensor capable of capturing at resolutions up to 3840 x 2160 (4K UHD) as well as 1920 x 1080 HD, processed through a DPMUltra image processor featuring 16-bit A/D conversion and 34-bit RGB processing — a processing pipeline that speaks directly to the color precision expectations of broadcast production. The camera supports an extensive range of frame rates, from 50fps all the way up to 600fps, making it capable of extreme slow-motion capture alongside standard broadcast frame rates including 59.94fps and 60fps.

Video output is recorded in 12-bit depth, with color profile support covering ITU-R BT.709, ITU-R BT.2020, HDR, and wide color gamut — giving operators the flexibility to meet modern broadcast and streaming delivery standards. The body is constructed from a professional broadcast-grade metal chassis, carries a weather sealed rating, and measures 183 x 212 x 397 mm (without viewfinder and lens), weighing in at 5.6 kg. Audio connectivity is handled by two XLR inputs for professional audio.

The camera accepts a Bayonet lens mount and is powered via 24V DC input through an external power supply or transmission adapter.

Key Features — Grass Valley LDX 86

2/3-Inch 4K UHD Sensor: Captures at up to 3840 x 2160 resolution with full HD fallback, covering standard broadcast and high-resolution production requirements.

DPMUltra Image Processor: 16-bit A/D conversion paired with 34-bit RGB processing delivers the color precision and dynamic range expected in professional broadcast workflows.

High Frame Rate Capture: Supports frame rates from standard broadcast rates through high frame rate options at lower resolutions, enabling slow-motion capture in production workflows.

12-Bit Video Output: Records at 12-bit depth for smooth gradients and greater latitude in color grading and live broadcast delivery.

Broadcast Color Profile Support: Compatible with ITU-R BT.709, ITU-R BT.2020, HDR, and wide color gamut, meeting current and emerging broadcast and streaming delivery standards.

Bayonet Lens Mount: Industry-standard 2/3-inch bayonet mount accepts a wide range of professional broadcast lenses from Canon, Fujinon, and others.

Camera Specifications — Grass Valley LDX 86

Grass Valley LDX 86 full specifications
SpecDetail
Use CasesStudio
TypeOther
Sensor2/3 inch
Resolution3840 x 2160 (4K UHD), 1920 x 1080 (HD)
ProcessorDPMUltra, 16-bit A/D, 34-bit RGB processing
AF SystemManual Focus Only
Max Video Resolution4K
Max Frame RateOther
Bit Depth12-bit
Video Color ProfilesITU-R BT.709, ITU-R BT.2020, HDR, Wide color gamut
Image StabilizationNone
DisplayExternal viewfinder (various Grass Valley/3rd party options)

Description — Grass Valley LDX 86

The Grass Valley LDX 86 is a studio broadcast camera built around a 2/3-inch sensor delivering resolutions of 3840 x 2160 (4K UHD) and 1920 x 1080 (HD). Its DPMUltra image processor operates with 16-bit A/D conversion and 34-bit RGB processing, providing the color accuracy and signal integrity that professional broadcast production demands. Video is captured at 12-bit depth, with color profile support for ITU-R BT.709, ITU-R BT.2020, HDR, and wide color gamut.

The camera's frame rate capabilities span from 50fps to 600fps, covering a wide range of broadcast and slow-motion production scenarios. The body is constructed from a professional broadcast-grade metal chassis, features weather sealing, and measures 183 x 212 x 397 mm (excluding viewfinder and lens) at a weight of 5.6 kg. Audio is handled via two XLR inputs, and the camera accepts a Bayonet lens mount.

Power is delivered via 24V DC input through an external supply or transmission adapter, consistent with professional broadcast infrastructure requirements.

Pros — Grass Valley LDX 86

  • ✓High-resolution 2/3-inch sensor supports both 3840 x 2160 4K UHD and 1920 x 1080 HD output
  • ✓Extensive frame rate range from 50fps up to 600fps enables extreme slow-motion broadcast capture
  • ✓12-bit video depth with support for ITU-R BT.709, ITU-R BT.2020, HDR, and wide color gamut color profiles

Cons — Grass Valley LDX 86

  • ✗At 5.6 kg (body only, without viewfinder and lens), the camera demands substantial rigging and support infrastructure
  • ✗No internal storage media — relies on external recording or transmission infrastructure typical of studio broadcast setups
  • ✗Viewfinder is entirely optional and external, adding cost and configuration complexity

Videos — Grass Valley LDX 86

LDX 135: Our Newest Single-Speed LDX 100 Series Camera — Grass Valley

Resources & Downloads — Grass Valley LDX 86

Manuals & Guides

Frequently Asked Questions — Grass Valley LDX 86

What video resolutions does the Grass Valley LDX 86 support?+
The LDX 86 supports 3840 x 2160 (4K UHD) and 1920 x 1080 (HD) resolutions via its 2/3-inch sensor. Output is delivered at 12-bit depth across both resolution modes.
What frame rates are available on the LDX 86?+
The camera supports a wide range of frame rates including 50fps, 59.94fps, 60fps, 100fps, 120fps, 150fps, 180fps, 200fps, 240fps, 300fps, and up to 600fps. This broad range covers standard broadcast rates as well as high-speed slow-motion capture.
What color profiles does the LDX 86 support for broadcast delivery?+
The LDX 86 supports ITU-R BT.709, ITU-R BT.2020, HDR, and wide color gamut profiles. This allows the camera to meet both traditional broadcast and modern HDR delivery requirements.
What lens mount does the LDX 86 use?+
The LDX 86 uses a Bayonet lens mount, which is standard in broadcast studio camera systems. This enables compatibility with the range of lenses designed for this mount type.
Does the LDX 86 include a built-in viewfinder?+
No — the LDX 86 uses an external, optional viewfinder. The specifications note compatibility with HD and UHD viewfinders from Grass Valley and select third-party options, but none are included with the camera body itself.
How is the LDX 86 powered?+
The camera requires a 24V DC input, supplied via an external power supply or through a transmission adapter. It does not support standard consumer or prosumer battery systems.
