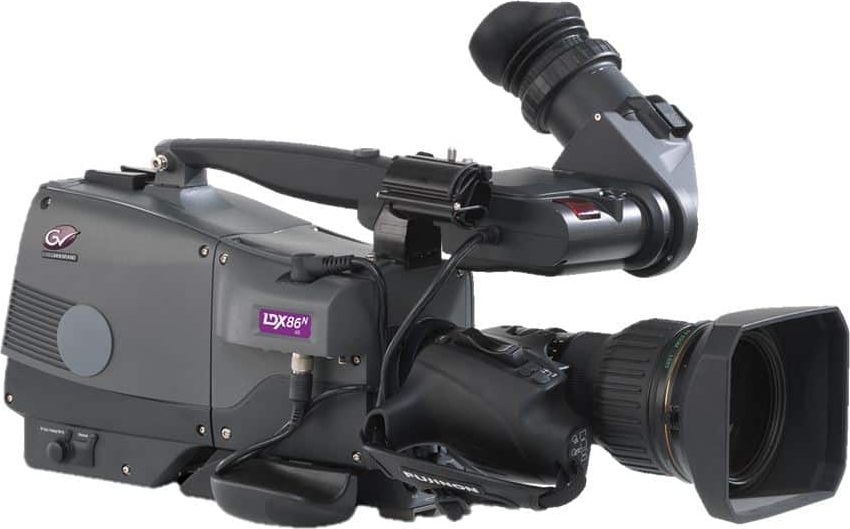

Grass Valley LDX 86N WorldCam Studio Camera

The Grass Valley LDX 86N is a 8.3 MP (per imager, 3x imagers for RGB) 2/3 inch cinema camera — with 4K video. Check GearFocus for current availability, with buyer protection on every purchase.

Grass Valley LDX 86N WorldCam Studio Camera

Grass Valley LDX 86N WorldCam Studio Camera

Get notified when one lists.

We'll text or email you the moment a Grass Valley LDX 86N WorldCam Studio Camera is listed on GearFocus.

Have a Grass Valley LDX 86N sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Grass Valley LDX 86N on GearFocus

Camera Overview — Grass Valley LDX 86N

The Grass Valley LDX 86N WorldCam Studio Camera is a professional broadcast and live production camera built around a triple-imager sensor design, with each of the three imagers delivering 8.3 MP resolution for RGB capture on a 2/3-inch sensor type. The camera uses a B4 lens mount, making it compatible with the wide ecosystem of broadcast lenses built around that standard. Powered by the DPMUltra image processor, it handles 16-bit analog-to-digital conversion with 34-bit internal processing, supporting video output up to 4K UHD (3840 x 2160).

Color science supports ITU-R BT.709, ITU-R BT.2020, Wide Color Gamut, and HDR profiles, covering both standard broadcast and wide-gamut HDR workflows. Frame rate options span 24fps through 59.94fps, covering the full range of broadcast standards across international markets. The ISO range runs from 200 to 3200.

Focus is manual only, with no autofocus system. The camera body is constructed from magnesium alloy and reinforced composite, weighing 2.1 kg and measuring 170 x 200 x 180 mm. Power is supplied externally via DC (11–17V) or through a transmission adapter, with a typical draw of 34–45W.

An optional 7.4-inch LCD external viewfinder with 1024 x 768 resolution is available. Audio and headphone connectivity is routed via a CCU or base station.

Key Features — Grass Valley LDX 86N

Triple 2/3" Imager Design: Three discrete 8.3MP imagers handle dedicated red, green, and blue capture, a hallmark of broadcast cameras that delivers precise color separation and clean chroma for live production.

DPMUltra Image Processor: Handles 16-bit analog-to-digital conversion with 34-bit internal processing, preserving fine tonal and color detail throughout the signal chain.

4K UHD Video Output: Captures up to 3840 x 2160 resolution, meeting current broadcast and live production standards for UHD delivery.

Broad Color Profile Support: Covers ITU-R BT.709, ITU-R BT.2020, Wide Color Gamut, and HDR, making it compatible with both standard broadcast and modern HDR workflows.

B4 Lens Mount: Industry-standard broadcast mount gives access to a wide ecosystem of studio and ENG lenses from manufacturers like Canon, Fujinon, and Angenieux.

Global Frame Rate Coverage: Supports 24, 25, 29.97, 30, 50, and 59.94fps to meet broadcast standards across international markets without format conversion.

Camera Specifications — Grass Valley LDX 86N

Grass Valley LDX 86N full specifications
SpecDetail
TypeOther
Sensor2/3 inch
Resolution8.3 MP (per imager, 3x imagers for RGB)
ProcessorDPMUltra
ISO Range200 – 3200
AF SystemManual Focus Only
AF PointsN/A
Max Photo Resolution3840 x 2160 (UHD video frame, stills not primary function)
Burst Rate0 fps
Max Video Resolution4K
Max Frame Rate59.94fps
Bit Depth16-bit A/D, 34-bit internal processing

Description — Grass Valley LDX 86N

The Grass Valley LDX 86N WorldCam Studio Camera is engineered for demanding broadcast and live production environments. At its core is a triple-imager system using 2/3-inch sensors, with each imager resolving 8.3 MP for dedicated RGB capture — processed by the DPMUltra image processor at 16-bit A/D with 34-bit internal processing. Maximum video output reaches 4K (3840 x 2160), with frame rate support spanning 24fps, 25fps, 29.97fps, 30fps, 50fps, and 59.94fps to cover global broadcast standards.

Color science includes ITU-R BT.709, ITU-R BT.2020, Wide Color Gamut, and HDR, providing flexibility across SDR and HDR workflows. The B4 lens mount connects the camera to the broad broadcast lens ecosystem. The camera body is built from magnesium alloy and reinforced composite, keeping weight to 2.1 kg at dimensions of 170 x 200 x 180 mm.

External power via DC (11–17V) or transmission adapter keeps the system running at a typical draw of 34–45W. An optional 7.4-inch, 1024 x 768 LCD external viewfinder is available for monitoring. The native ISO range spans 200 to 3200, and focus is manual only.

Pros — Grass Valley LDX 86N

  • ✓Triple 2/3-inch imager design with 8.3 MP per imager for dedicated RGB capture
  • ✓16-bit A/D conversion with 34-bit internal processing via the DPMUltra image processor
  • ✓Broad color profile support including ITU-R BT.709, ITU-R BT.2020, Wide Color Gamut, and HDR

Cons — Grass Valley LDX 86N

  • ✗Manual focus only — no autofocus system of any kind
  • ✗No weather sealing, limiting use in outdoor or adverse conditions
  • ✗Requires external DC power (11–17V); no self-contained battery system

Videos — Grass Valley LDX 86N

The LDK 8300 Live Super SloMo Camera with 1X/2X/3X Speeds — Grass Valley

Resources & Downloads — Grass Valley LDX 86N

Manuals & Guides

Frequently Asked Questions — Grass Valley LDX 86N

What lens mount does the Grass Valley LDX 86N use?+
The LDX 86N uses a B4 lens mount, which is the standard for professional broadcast studio and ENG lenses. This allows compatibility with the wide range of B4-mount lenses available in the broadcast industry.
What is the maximum video resolution and which frame rates are supported?+
The camera supports a maximum video resolution of 4K (3840 x 2160). Supported frame rates include 24fps, 25fps, 29.97fps, 30fps, 50fps, and 59.94fps, covering broadcast standards for both 50Hz and 60Hz markets.
How is the LDX 86N powered?+
The camera is powered externally via DC input in the 11–17V range, or through a transmission adapter. Typical power draw is between 34 and 45W depending on configuration and connected accessories.
Does the LDX 86N have a built-in viewfinder?+
No, the camera does not include a built-in viewfinder. An optional external electronic viewfinder is available — a 7.4-inch LCD display with a resolution of 1024 x 768 and a 60Hz refresh rate.
What color profiles does the LDX 86N support for video?+
The camera supports ITU-R BT.709, ITU-R BT.2020, Wide Color Gamut, and HDR color profiles for video, making it suitable for both standard broadcast and modern HDR production workflows.
What is the sensor configuration of the LDX 86N?+
The camera uses three 2/3-inch imagers, each delivering 8.3 MP of resolution, dedicated to red, green, and blue channels respectively. Image processing is handled by the DPMUltra processor with 16-bit A/D conversion and 34-bit internal processing.
