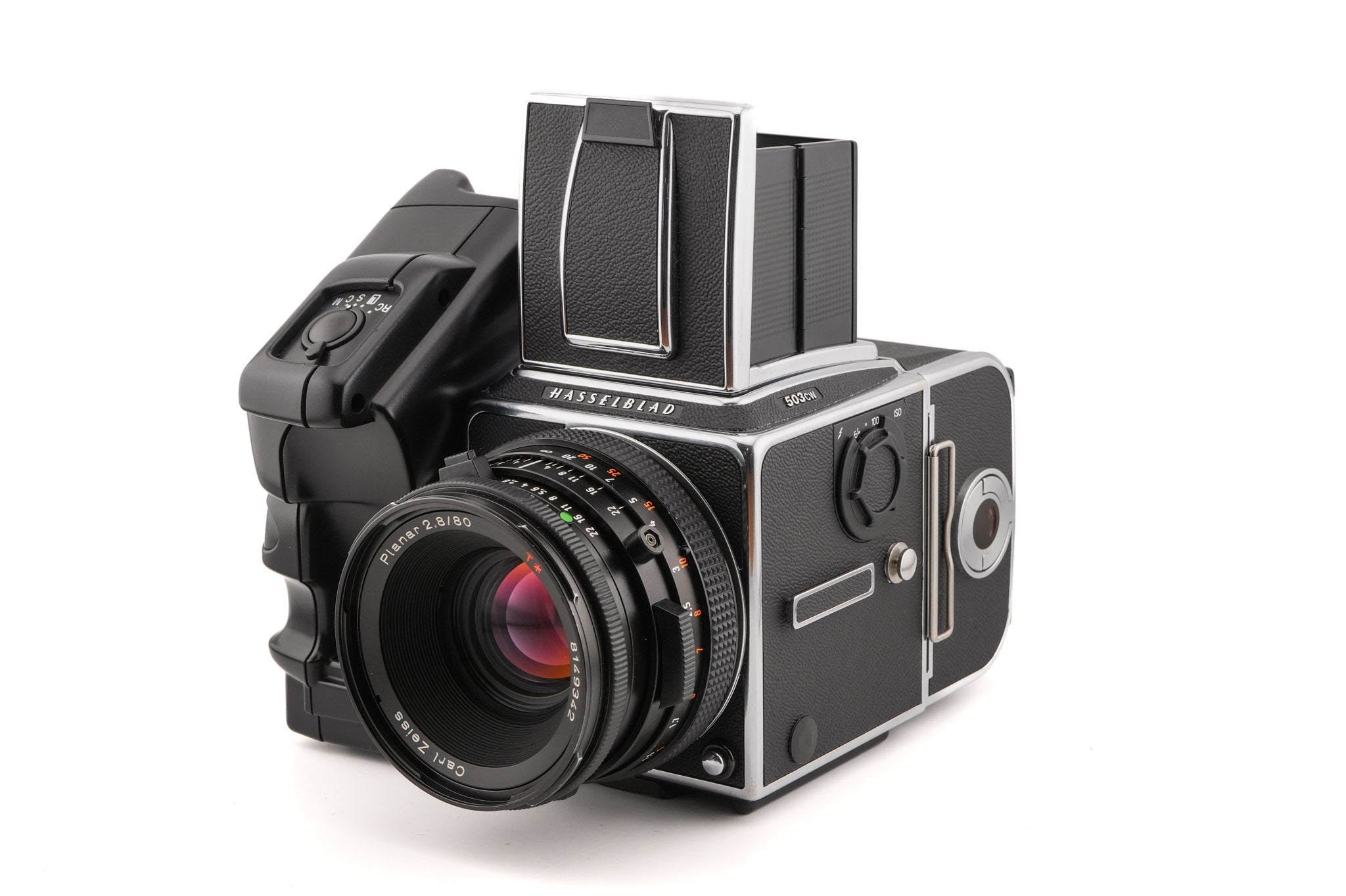

Hasselblad 503CW Medium Format Film Camera

The Hasselblad 503CW is a Medium Format medium format camera — known for its Hasselblad V Lens Mount and Medium Format Film System. Used copies start from $508.98 on GearFocus, with buyer protection on every purchase.

Hasselblad 503CW Medium Format Film Camera

Hasselblad 503CW Medium Format Film Camera

Own One Like This?

Make room for more gear in minutes!

Sell your Hasselblad 503CW on GearFocus

Used Hasselblad 503CW Listings on GearFocus

OverviewHasselblad 503CW

The Hasselblad 503CW is a medium format film camera built around the Hasselblad V lens mount system. Constructed primarily from aluminum alloy, the body is solid and purposeful, weighing 1.5kg with dimensions of 180mm x 114mm x 110mm when configured with an 80mm lens, A12 magazine, and focusing hood. The camera is a film type, placing it squarely in the analog medium format space for photographers who shoot on film.

The viewfinder system is a standout feature — a waist-level finder comes standard, but the design accommodates interchangeable prism finders, giving shooters meaningful flexibility in how they frame and compose. Flash integration is handled via TTL/OTF metering compatible with SCA300 and SCA500 flash systems, with X-sync available at all shutter speeds up to 1/500s — a genuine practical advantage for strobe and location work. A PC sync port is present on the body, and some prism finder options add a standard ISO hot shoe.

The camera has no image stabilization, no wireless connectivity, and no video capability, which is entirely consistent with its identity as a professional analog tool. With a maximum continuous rate of 0.8 frames per second, it is a considered, deliberate shooting experience suited to photographers who prioritize image quality and process over speed.

Key FeaturesHasselblad 503CW

Hasselblad V Lens Mount: Compatible with the full range of Hasselblad V-system lenses, including Carl Zeiss-designed optics spanning wide-angle to telephoto.

Medium Format Film System: Shoots on 120/220 roll film, producing a 6x6cm negative significantly larger than 35mm for exceptional detail and tonal range.

Interchangeable Film Magazines: Modular film back design allows mid-roll magazine swaps, so you can switch between film stocks or move to a digital back without wasting a roll.

Interchangeable Viewfinder System: Standard waist-level finder can be swapped for a range of prism finders, giving photographers flexibility in how they frame and compose.

X-Sync at 1/500s: Leaf shutter design built into V-system lenses syncs with flash at all shutter speeds up to 1/500s, enabling fill-flash in bright conditions without HSS.

TTL/OTF Flash Metering: Compatible with SCA300 and SCA500 flash systems for through-the-lens, off-the-film metering during exposure.

SpecificationsHasselblad 503CW

Hasselblad 503CW full specifications
SpecDetail
Use CasesStudio, Fashion, Documentary
TypeFilm
SensorMedium Format
AF SystemManual Focus Only
Burst Rate0.8 fps
Image StabilizationNone
ViewfinderWaist-level finder (interchangeable, prism finders available)
Weather SealingNone
Dimensions180mm L x 114mm W x 110mm H (with 80mm lens, A12 magazine, and focusing hood)
Weight1.5kg
Lens MountHasselblad V
Flash SystemTTL/OTF flash metering with SCA300/500 compatible flashes; X-sync at all shutter speeds up to 1/500s

DescriptionHasselblad 503CW

The Hasselblad 503CW is a medium format film camera built on the Hasselblad V lens mount, designed for photographers working in the analog medium format space. The body is constructed primarily from aluminum alloy and weighs 1.5kg in a fully configured setup with an 80mm lens, A12 magazine, and focusing hood, measuring 180mm x 114mm x 110mm. The viewfinder setup is notably flexible — a waist-level finder is standard, and the interchangeable system allows prism finders to be swapped in as needed.

For flash work, the 503CW offers TTL/OTF flash metering compatible with SCA300 and SCA500 systems, with X-sync at all shutter speeds up to 1/500s. A PC sync port is built into the body, and select prism finders add a standard ISO hot shoe. The camera has no image stabilization, no weather sealing, and no digital connectivity, making it a purely analog tool with a maximum shooting rate of 0.8 frames per second.

ProsHasselblad 503CW

  • Interchangeable viewfinder system with waist-level finder standard and prism finders available
  • Flash X-sync at all shutter speeds up to 1/500s with TTL/OTF metering
  • Compatible with SCA300 and SCA500 flash systems via onboard TTL/OTF metering

ConsHasselblad 503CW

  • No weather sealing of any kind
  • Maximum burst rate of only 0.8 frames per second
  • No autofocus system

Resources & DownloadsHasselblad 503CW

Frequently Asked QuestionsHasselblad 503CW

What lens mount does the Hasselblad 503CW use?+
The 503CW uses the Hasselblad V lens mount. This is the same mount shared across the Hasselblad V system, giving access to a broad range of V-mount lenses.
What type of viewfinder does the 503CW come with?+
The camera ships with a waist-level finder as standard. The viewfinder system is interchangeable, meaning prism finders can also be mounted depending on shooting requirements.
What flash systems are compatible with the 503CW?+
The 503CW supports TTL/OTF flash metering and is compatible with SCA300 and SCA500 flash systems. X-sync is available at all shutter speeds up to 1/500s, and the body includes a PC sync port.
Is the 503CW weather sealed?+
No. The specifications confirm weather sealing is listed as None, so the camera should not be exposed to rain, dust, or other environmental hazards without appropriate precautions.
What is the shooting speed of the 503CW?+
The maximum burst frame rate is 0.8 frames per second, and burst mode is not a feature of this camera. It is designed for deliberate, single-frame shooting.
How large and heavy is the 503CW?+
When configured with an 80mm lens, A12 magazine, and focusing hood, the camera measures 180mm x 114mm x 110mm and weighs 1.5kg. The body itself is constructed primarily from aluminum alloy.
