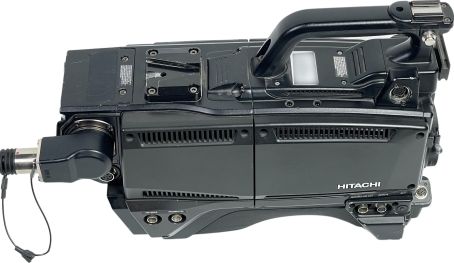

Hitachi SK-HD1000 HDTV Studio Camera

The Hitachi SK-HD1000 is a 2.3 megapixels (1920 x 1080 effective pixels per CCD, 3x RGB) 2/3 inch cinema camera — with 1920 x 1080 (HDTV, 1080i/720p) video. Check GearFocus for current availability, with buyer protection on every purchase.

Hitachi SK-HD1000 HDTV Studio Camera

Hitachi SK-HD1000 HDTV Studio Camera

Get notified when one lists.

We'll text or email you the moment a Hitachi SK-HD1000 HDTV Studio Camera is listed on GearFocus.

Have a Hitachi SK-HD1000 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Hitachi SK-HD1000 on GearFocus

Camera Overview — Hitachi SK-HD1000

The Hitachi SK-HD1000 is a professional HDTV studio and EFP camera built around a 2/3-inch sensor configuration delivering 2.3 megapixels of effective resolution across three RGB CCDs — 1920 x 1080 effective pixels per CCD. At its core is a Hitachi Digital Signal Processor LSI with 14-bit A/D conversion, providing the processing backbone for broadcast-grade image quality. Video output reaches up to 1920 x 1080 in HDTV formats including 1080i and 720p, with frame rate support for 60i, 50i, 30p, 25p, and 24p — covering both international broadcast standards.

The camera records at a 30-bit color depth and supports a comprehensive suite of color profiles: ITU-709, SMPTE-240M, SMPTE-WIDE, NTSC, EBU, and Ultra Gamma, giving operators and colorists significant flexibility across different broadcast pipelines. The camera is powered via SMPTE fiber or an external DC supply — no onboard battery — which reflects its studio-centric design philosophy. It ships with a 9-inch External Studio Viewfinder featuring a TFT-LCD panel at 800 x 450 resolution.

The metal chassis keeps the camera body compact at 124 x 175 x 340 mm and a weight of 1.8 kg. Audio connectivity is handled via XLR through the camera head or studio adapter, with headphone monitoring available through the camera control unit. Storage is via SD media.

There is no built-in image stabilization, no autofocus system, and no wireless connectivity — this is a manual-focus, studio-infrastructure camera designed for fixed and field broadcast workflows.

Key Features — Hitachi SK-HD1000

Three-Chip 2/3" RGB CCDs: Dedicated red, green, and blue CCD sensors each deliver 1920 x 1080 effective pixels for accurate color separation and broadcast-grade image quality.

14-Bit A/D Conversion: Hitachi's Digital Signal Processor LSI with 14-bit analog-to-digital conversion provides high-fidelity signal processing with fine tonal gradation.

1080i/720p HDTV Output: Supports full 1920 x 1080 HDTV output at multiple frame rates including 60i, 50i, 30p, 25p, and 24p for both international broadcast standards.

30-Bit Color Depth: Records at 30-bit color depth for smooth gradients and precise color reproduction across broadcast pipelines.

Six Color Profiles: Supports ITU-709, SMPTE-240M, SMPTE-WIDE, NTSC, EBU, and Ultra Gamma, giving operators flexibility across different broadcast and production workflows.

SMPTE Fiber Power & Signal: Powered via SMPTE fiber or external DC supply, integrating directly into studio and EFP infrastructure without relying on onboard batteries.

Camera Specifications — Hitachi SK-HD1000

Hitachi SK-HD1000 full specifications
SpecDetail
TypeOther
Sensor2/3 inch
Resolution2.3 megapixels (1920 x 1080 effective pixels per CCD, 3x RGB)
ProcessorHitachi Digital Signal Processor LSI, 14-bit A/D conversion
AF SystemManual Focus Only
Max Video Resolution1920 x 1080 (HDTV, 1080i/720p)
Max Frame Rate60fps
Bit Depth30-bit
Video Color ProfilesITU-709, SMPTE-240M, SMPTE-WIDE, NTSC, EBU, Ultra Gamma
Image StabilizationNone
Display9 inches External Studio Viewfinder
Display Resolution800 x 450

Description — Hitachi SK-HD1000

The Hitachi SK-HD1000 is a professional HDTV studio camera designed for broadcast and EFP production. Its sensor is a 2/3-inch three-chip RGB CCD system delivering 2.3 megapixels of effective resolution — specifically 1920 x 1080 effective pixels per CCD — processed through a Hitachi Digital Signal Processor LSI with 14-bit A/D conversion. Video is captured at up to 1920 x 1080 (HDTV 1080i/720p) at a 30-bit color depth.

Supported frame rates include 60i, 50i, 30p, 25p, and 24p, ensuring international broadcast compatibility. Color science is handled via six profiles: ITU-709, SMPTE-240M, SMPTE-WIDE, NTSC, EBU, and Ultra Gamma. The camera body is constructed from a metal chassis, measuring 124 mm (W) x 175 mm (H) x 340 mm (D) and weighing 1.8 kg.

A 9-inch External Studio Viewfinder (TFT-LCD) at 800 x 450 resolution is included. Power is supplied via SMPTE fiber or external DC. Audio input is via XLR (camera head or studio adapter), with headphone access through the camera control unit.

Storage is via SD media. The SK-HD1000 operates with manual focus only and has no image stabilization.

Pros — Hitachi SK-HD1000

  • ✓Three-chip 2/3-inch RGB CCD sensor delivers 2.3 megapixels (1920 x 1080 effective pixels per CCD) for broadcast-standard HD imaging
  • ✓14-bit A/D conversion via Hitachi Digital Signal Processor LSI for high-fidelity signal processing
  • ✓Broad color profile support including ITU-709, SMPTE-240M, SMPTE-WIDE, NTSC, EBU, and Ultra Gamma

Cons — Hitachi SK-HD1000

  • ✗No autofocus system — manual focus only, requiring experienced operators in fast-moving production environments
  • ✗No onboard battery; requires SMPTE fiber or external DC power supply, limiting fully standalone portable use
  • ✗No weather sealing, which restricts outdoor deployment in adverse conditions

Videos — Hitachi SK-HD1000

NAB 2015 Hitachi SK-UHD4000 Studio & Field Production Camera — Good Dog Digital

Resources & Downloads — Hitachi SK-HD1000

Manuals & Guides

Frequently Asked Questions — Hitachi SK-HD1000

What video resolutions and frame rates does the SK-HD1000 support?+
The SK-HD1000 supports a maximum video resolution of 1920 x 1080 in HDTV formats (1080i and 720p). Available frame rates are 60i, 50i, 30p, 25p, and 24p, making it compatible with both North American and European broadcast standards.
What color profiles are available on the SK-HD1000?+
The camera supports six color profiles: ITU-709, SMPTE-240M, SMPTE-WIDE, NTSC, EBU, and Ultra Gamma. This range covers major broadcast standards and provides flexibility for different post-production pipelines.
How is the SK-HD1000 powered?+
The camera is powered via SMPTE fiber or an external DC power supply — there is no onboard battery. This design is suited to studio and tethered EFP workflows where camera control unit infrastructure is available.
What audio connectivity does the SK-HD1000 offer?+
The camera supports XLR audio input via the camera head or a studio adapter. Headphone monitoring is available through the camera control unit (CCU). There is no direct USB, HDMI, WiFi, or Bluetooth connectivity on the camera body itself.
What is the sensor configuration in the SK-HD1000?+
The camera uses a 2/3-inch three-chip RGB CCD configuration, with 2.3 megapixels (1920 x 1080 effective pixels) per CCD. Signal processing is handled by a Hitachi Digital Signal Processor LSI with 14-bit A/D conversion.
What viewfinder does the SK-HD1000 use?+
The SK-HD1000 uses an External Studio Viewfinder with a TFT-LCD panel and a resolution of 800 x 450. The viewfinder measures 9 inches, making it suitable for studio monitoring applications.
