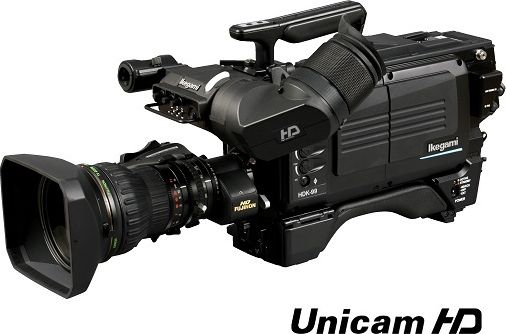

Ikegami HDK-99 Studio Broadcast Camera

The Ikegami HDK-99 is a 2.6 megapixel 2/3 inch cinema camera — with 1920 x 1080 video. Check GearFocus for current availability, with buyer protection on every purchase.

Ikegami HDK-99 Studio Broadcast Camera

Ikegami HDK-99 Studio Broadcast Camera

Get notified when one lists.

We'll text or email you the moment a Ikegami HDK-99 Studio Broadcast Camera is listed on GearFocus.

Have a Ikegami HDK-99 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Ikegami HDK-99 on GearFocus

Camera Overview — Ikegami HDK-99

The Ikegami HDK-99 is a professional studio broadcast camera built around a triple 2/3-inch sensor configuration, each with 2.6 megapixel resolution, processed through Ikegami's proprietary AXII image processor. Designed for high-end live production environments, the HDK-99 supports a comprehensive suite of HD video formats, including 1080i at 59.94 and 50 fields per second, 720p at 59.94 and 50 frames per second, and a full range of 1080p frame rates covering 23.98, 25, 29.97, 50, and 59.94 frames per second. This breadth of format support makes the camera adaptable to broadcast standards across North American, European, and international markets.

The camera accepts Bayonet-mount lenses, consistent with industry-standard 2/3-inch studio lens compatibility. A 7-inch touchscreen LCD display is integrated into the system, providing operators with a large, responsive interface for monitoring and menu navigation. The maximum video output resolution is 1920 x 1080, covering full HD broadcast requirements.

With the AXII processor at its core, the HDK-99 reflects Ikegami's focus on image processing performance for demanding studio and live broadcast applications.

Key Features — Ikegami HDK-99

Triple 2/3-Inch Sensors: Three-chip 2/3-inch sensor configuration delivers accurate color separation and is the established standard for professional broadcast cameras.

Ikegami AXII Processor: Proprietary AXII image processor handles signal processing for consistent, broadcast-grade image quality in live production environments.

Full HD 1920x1080 Output: Maximum video resolution of 1920x1080 meets full HD broadcast delivery requirements for studio and live production.

Multi-Format Frame Rate Support: Supports 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, and 1080p at 23.98 through 59.94fps, covering North American, European, and international broadcast standards.

2/3-Inch Bayonet Lens Mount: Industry-standard 2/3-inch bayonet mount provides compatibility with a wide range of professional broadcast studio lenses.

7-Inch Touchscreen LCD: Large integrated touchscreen display gives operators a responsive interface for monitoring and menu navigation during live production.

Camera Specifications — Ikegami HDK-99

Ikegami HDK-99 full specifications
SpecDetail
Use CasesStudio
TypeOther
Sensor2/3 inch
Resolution2.6 megapixel
ProcessorIkegami AXII
AF SystemOther
Max Photo Resolution1920 x 1080
Max Video Resolution1920 x 1080
Max Frame Rate59.94fps
Display7 inch 7-inch touchscreen LCD
Lens MountBayonet

Description — Ikegami HDK-99

The Ikegami HDK-99 Studio Broadcast Camera is built on a triple 2/3-inch sensor platform, with each sensor delivering 2.6 megapixel resolution. Image processing is handled by Ikegami's AXII processor, the proprietary engine at the heart of the HDK-99's imaging pipeline. Video output maxes out at 1920 x 1080 across a wide array of formats: 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 1080p/29.97, 1080p/25, 1080p/23.98, 1080p/59.94, and 1080p/50, with a maximum frame rate of 59.94fps.

The camera features a Bayonet lens mount, compatible with the standard 2/3-inch professional broadcast lens family. A 7-inch touchscreen LCD is integrated for on-camera monitoring and control. The HDK-99 is designed for structured studio broadcast environments where format flexibility and processor-driven image quality are priorities.

Pros — Ikegami HDK-99

  • ✓Triple 2/3-inch sensors, each at 2.6 megapixel resolution, processed by the Ikegami AXII image processor
  • ✓Extensive frame rate support covering 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, and multiple 1080p options up to 59.94fps
  • ✓Full HD 1920 x 1080 maximum video resolution suitable for broadcast delivery

Cons — Ikegami HDK-99

  • ✗Maximum resolution is 1920 x 1080 — no 4K or higher output based on available specifications
  • ✗No connectivity specifications documented (Wi-Fi, Bluetooth, HDMI, USB, audio jacks) limiting insight into integration options
  • ✗Body weight, dimensions, and material are not specified, making rigging and transport planning difficult without additional research

Videos — Ikegami HDK-99

Ikegami HC-HD300 Full Digital HDTV Studio Camera - Video Review — Take One Broadcast Solutions

Resources & Downloads — Ikegami HDK-99

Manuals & Guides

Frequently Asked Questions — Ikegami HDK-99

What video frame rates does the Ikegami HDK-99 support?+
The HDK-99 supports 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 1080p/29.97, 1080p/25, 1080p/23.98, 1080p/59.94, and 1080p/50. The maximum frame rate is 59.94fps. This range covers both North American and European broadcast standards.
What sensor does the Ikegami HDK-99 use?+
The HDK-99 uses three 2/3-inch sensors, each with a resolution of 2.6 megapixels, paired with Ikegami's AXII image processor. The 2/3-inch sensor size is the established standard for professional studio broadcast cameras.
What lens mount does the HDK-99 use?+
The HDK-99 uses a Bayonet lens mount, which is the standard mount type associated with 2/3-inch professional broadcast lenses. This ensures broad compatibility within the studio broadcast lens ecosystem.
Does the HDK-99 have a built-in display?+
Yes, the HDK-99 includes a 7-inch touchscreen LCD display. This provides operators with a large screen for monitoring and menu interaction during studio production.
What is the maximum video resolution of the HDK-99?+
The maximum video resolution is 1920 x 1080, which is full HD. This applies to both the video specifications and the photo specifications listed for the camera.
