Marshall Electronics CV-505-MB Full HD Mini-Broadcast POV Camera

The Marshall Electronics CV-505-MB is a 1/3 inch camera — with 1080p video. Check GearFocus for current availability, with buyer protection on every purchase.

Marshall Electronics CV-505-MB Full HD Mini-Broadcast POV Camera

Marshall Electronics CV-505-MB Full HD Mini-Broadcast POV Camera

Get notified when one lists.

We'll text or email you the moment a Marshall Electronics CV-505-MB Full HD Mini-Broadcast POV Camera is listed on GearFocus.

Have a Marshall Electronics CV-505-MB sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Marshall Electronics CV-505-MB on GearFocus

Overview — Marshall Electronics CV-505-MB

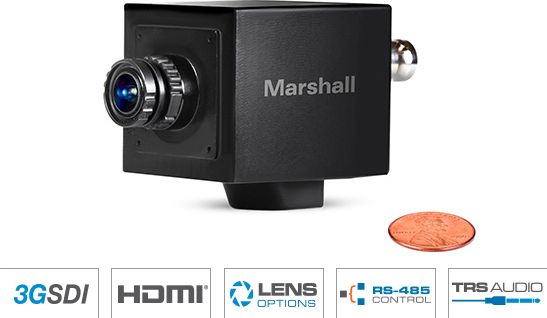

The Marshall Electronics CV-505-MB is a compact Full HD mini-broadcast POV camera built around a 1/3-inch sensor and designed for professional video capture in tight spaces. It outputs up to 1080p video at frame rates including 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps, making it well-suited for broadcast environments that require both 60Hz and 50Hz compatibility. Video is delivered over HDMI v1.3 (full size), providing a straightforward connection to monitors, switchers, and capture devices.

The camera accepts C-Mount lenses, giving operators flexibility in choosing optics for a variety of shooting scenarios. A 3.5mm TRS microphone input — selectable between mic and line level, mono, with 2.5V power — allows for direct audio integration without an external mixer. The CV-505-MB includes Digital/Electronic image stabilization to help smooth out vibration in mounted or handheld POV applications.

The camera supports WDR, BLC, and HLC color profiles for handling challenging lighting conditions. At just 140g and measuring 37mm wide by 37mm high by 35mm deep, this is an exceptionally small and lightweight unit. There is no weather sealing, no built-in wireless connectivity, and no onboard storage, so it is purpose-built as a live-output broadcast camera rather than a standalone recording device.

Key Features — Marshall Electronics CV-505-MB

1/3-Inch Sensor: Compact sensor format well-suited for mini broadcast and POV applications where small body size is a priority.

1080p Full HD Output: Captures and outputs up to 1080p at frame rates including 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps for compatibility with both 60Hz and 50Hz broadcast environments.

Full-Size HDMI Output: HDMI v1.3 full-size connector feeds directly into monitors, switchers, and capture devices without adapters.

C-Mount Lens Compatibility: Accepts C-Mount lenses, giving operators a wide range of optic choices to suit different focal lengths and shooting scenarios.

3.5mm TRS Mic Input: Mono mic/line-selectable input with 2.5V power allows direct audio integration without requiring an external mixer.

WDR, BLC & HLC Profiles: Three exposure compensation modes help maintain usable image quality in high-contrast and unevenly lit environments.

Specifications — Marshall Electronics CV-505-MB

Marshall Electronics CV-505-MB full specifications
SpecDetail
Use CasesStudio
TypeOther
Sensor1/3 inch
Max Video Resolution1080p
Max Frame Rate60fps
Video Color ProfilesWDR, BLC, HLC
Image StabilizationDigital / Electronic IS
HDMIHDMI v1.3 (full size)
Weather SealingNone
Dimensions37(W) x 37(H) x 35(D) mm
Weight140g
Lens MountC-Mount

Description — Marshall Electronics CV-505-MB

The Marshall Electronics CV-505-MB is a purpose-built mini-broadcast POV camera designed for professional live-output video applications. Built around a 1/3-inch sensor, it delivers 1080p full HD video over HDMI v1.3 (full size) at a versatile range of frame rates: 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps. The C-Mount lens system opens up a broad selection of compatible optics to suit different broadcast and production needs.

For audio, a 3.5mm TRS input supports mic or line-level signals (mono, with 2.5V power), integrating directly into production workflows. The camera's WDR, BLC, and HLC color profiles offer tools for managing high-contrast and difficult lighting environments. Digital/Electronic IS helps reduce the impact of vibration in POV or fixed-mount applications. Weighing just 140g and measuring 37 x 37 x 35mm, the CV-505-MB is an exceptionally compact unit with no onboard storage and no wireless connectivity — a straightforward, live-output broadcast tool.

Pros — Marshall Electronics CV-505-MB

  • ✓1080p maximum video resolution with a wide range of frame rates including 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps
  • ✓C-Mount lens compatibility offers flexibility in optic selection for different shooting scenarios
  • ✓HDMI v1.3 (full size) output provides a reliable, standard broadcast connection

Cons — Marshall Electronics CV-505-MB

  • ✗No weather sealing, limiting use in outdoor or harsh environments
  • ✗No onboard storage media — functions only as a live-output camera
  • ✗No Wi-Fi or Bluetooth connectivity

Reviews — Marshall Electronics CV-505-MB

Videos — Marshall Electronics CV-505-MB

Marshall Electronics POV CV502 & CV505 Camera Review from Streaming Idiots — Eastern Shore Broadcasting

Resources & Downloads — Marshall Electronics CV-505-MB

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-505-MB

What lens mount does the Marshall CV-505-MB use?+
The CV-505-MB uses a C-Mount lens system, which is a common standard in broadcast and industrial cameras. This gives users a wide selection of compatible lenses to choose from depending on their application.
What video output options does the CV-505-MB offer?+
The camera outputs video via HDMI v1.3 (full size). It supports resolutions up to 1080p at frame rates of 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps, covering both 60Hz and 50Hz broadcast standards.
Does the CV-505-MB have any audio input?+
Yes, it includes a 3.5mm TRS input that is selectable between mic and line level, mono operation, with 2.5V power supplied. This allows direct connection of a microphone or line-level audio source without additional equipment.
Is the CV-505-MB weather sealed?+
No, the CV-505-MB has no weather sealing according to its specifications. It should be used in controlled indoor environments or protected from moisture and dust when used outdoors.
How big and heavy is the CV-505-MB?+
The camera measures 37mm wide by 37mm high by 35mm deep and weighs 140g. This extremely compact footprint makes it well-suited for POV mounting applications where space is limited.
What image stabilization does the CV-505-MB offer?+
The CV-505-MB features Digital/Electronic image stabilization. There is no in-body optical stabilization, so the digital IS is the sole stabilization system available on this camera.
