Marshall Electronics CV-346 Compact Studio Camera

The Marshall Electronics CV-346 is a 2.5 MP Other cinema camera — with 1080p video. Check GearFocus for current availability, with buyer protection on every purchase.

Marshall Electronics CV-346 Compact Studio Camera

Marshall Electronics CV-346 Compact Studio Camera

Get notified when one lists.

We'll text or email you the moment a Marshall Electronics CV-346 Compact Studio Camera is listed on GearFocus.

Have a Marshall Electronics CV-346 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Marshall Electronics CV-346 on GearFocus

Camera Overview — Marshall Electronics CV-346

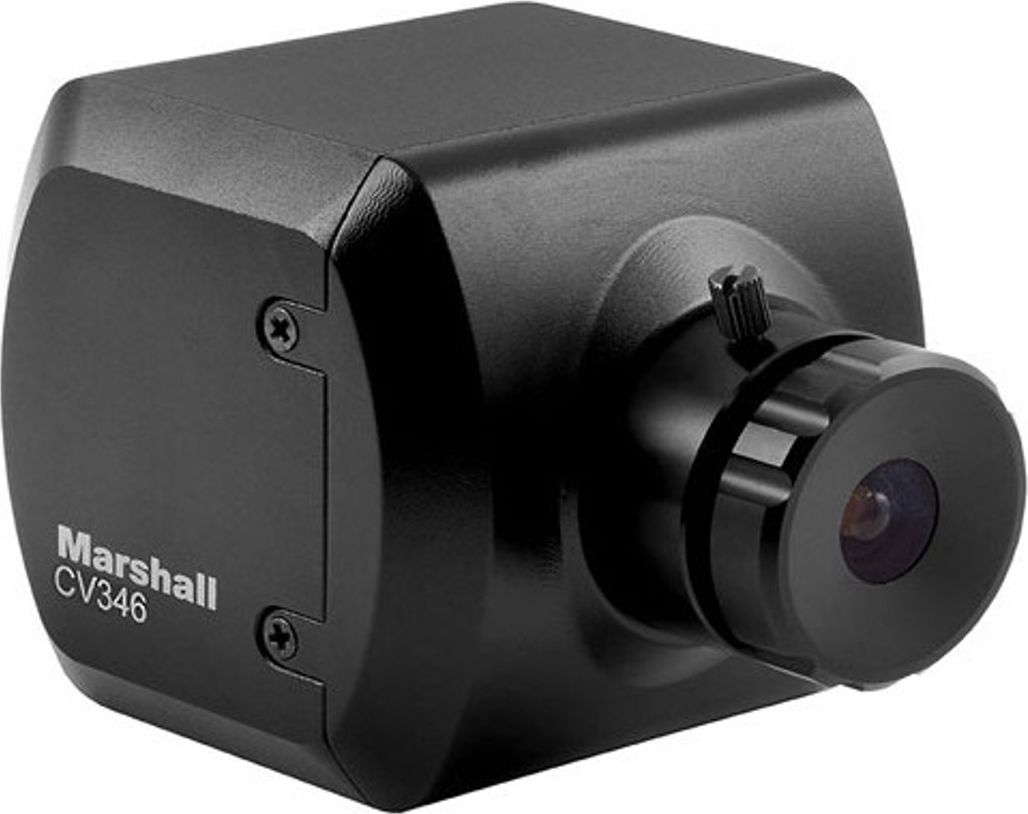

The Marshall Electronics CV-346 Compact Studio Camera is a professional-grade broadcast camera built around a 2.5 MP sensor, delivering full HD video output at resolutions up to 1920 x 1080. Designed for studio, POV, and broadcast environments, the CV-346 offers a compact form factor with dimensions of just 58.6 x 56 x 56 mm, making it easy to integrate into tight production setups where space is at a premium. Video output tops out at 1080p with a maximum frame rate of 60fps, and the camera supports a wide range of frame rates including 59.94fps, 50fps, 30fps, 29.97fps, 25fps, and 24fps — covering both broadcast and cinematic standards across international markets.

Color sampling is handled at 4:2:2, which is a meaningful advantage for professional post-production and chroma keying workflows. The CV-346 accepts C-Mount lenses, giving operators access to a broad ecosystem of glass suited to compact studio applications. Output is via Full HDMI, and audio is handled through a stereo input accessible via a Hirose breakout cable.

The camera is powered by a 12V DC power supply, consistent with fixed studio installations. With no internal storage media, the CV-346 is intended as a live output camera feeding directly into production switchers or capture devices.

Key Features — Marshall Electronics CV-346

1080p Full HD Output: Delivers 1920x1080 video output suitable for broadcast and live production workflows.

4:2:2 Color Sampling: Higher color fidelity than standard 4:2:0 capture, benefiting chroma keying and professional post-production.

Compact Fixed Body: At just 58.6 x 56 x 56 mm, the camera integrates easily into tight studio rigs, robotic heads, and POV mounts.

C-Mount Lens System: Accepts a wide range of C-Mount lenses, giving operators flexibility in focal length and depth of field for studio applications.

Broad Frame Rate Support: Supports 24, 25, 29.97, 30, 50, 59.94, and 60fps to cover both broadcast and cinematic standards across international markets.

Full HDMI Output: Feeds directly into production switchers, monitors, or capture devices for live studio use.

Camera Specifications — Marshall Electronics CV-346

Marshall Electronics CV-346 full specifications
SpecDetail
Use CasesStudio
TypeOther
SensorOther
Resolution2.5 MP
AF SystemManual Focus Only
Max Photo Resolution1920 x 1080
Max Video Resolution1080p
Max Frame Rate60fps
Video Color Profiles4:2:2
Image StabilizationNone
HDMIFull HDMI
Battery12V DC power supply

Description — Marshall Electronics CV-346

The Marshall Electronics CV-346 Compact Studio Camera is engineered for professional broadcast and studio video production in a remarkably small package. With a body measuring just 58.6 x 56 x 56 mm, it fits easily into space-constrained studio builds, POV rigs, and multi-camera broadcast setups. The camera's 2.5 MP sensor drives full HD output at up to 1920 x 1080, with a maximum frame rate of 60fps and additional support for 59.94fps, 50fps, 30fps, 29.97fps, 25fps, and 24fps — ensuring compatibility across broadcast and international production standards.

Video is output in 4:2:2 color sampling, offering the color fidelity expected in professional production environments. The C-Mount lens system provides flexibility in optics selection. Connectivity includes a Full HDMI output for direct connection to external recorders or switchers, while stereo audio input is available through a Hirose breakout cable.

The camera is powered via 12V DC, suited to studio installations. There is no internal storage — the CV-346 is a dedicated live-output camera designed to integrate directly into broadcast and production infrastructure.

Pros — Marshall Electronics CV-346

  • ✓Compact 58.6 x 56 x 56 mm body makes it suitable for tight studio and POV mounting scenarios
  • ✓Wide frame rate support including 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, and 24fps covers both broadcast and international production standards
  • ✓4:2:2 color sampling benefits professional chroma keying and color grading workflows

Cons — Marshall Electronics CV-346

  • ✗Maximum output is limited to 1080p — no 4K or higher resolution option available
  • ✗No internal storage media; the camera relies entirely on external capture or live switching infrastructure
  • ✗No image stabilization of any kind (in-body or digital), which limits handheld or mobile use cases

Resources & Downloads — Marshall Electronics CV-346

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-346

What lens mount does the Marshall CV-346 use?+
The CV-346 uses a C-Mount lens system, which is a well-established standard in compact and studio cameras. This gives users access to a wide selection of compatible lenses for various production needs.
What video resolutions and frame rates does the CV-346 support?+
The camera outputs up to 1920 x 1080 at a maximum of 60fps. Supported frame rates include 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, and 24fps, covering both NTSC and PAL broadcast standards as well as standard cinematic frame rates.
How does audio work on the CV-346?+
The CV-346 accepts stereo audio input via a Hirose breakout cable. There is no standard 3.5mm or XLR jack on the body itself, so the Hirose cable is required to connect microphones or other audio sources.
Does the CV-346 record internally to a memory card or drive?+
No — the CV-346 has no internal storage media. It is designed as a live output camera, sending its signal through Full HDMI to an external recorder, capture card, or production switcher.
What power source does the CV-346 require?+
The camera runs on a 12V DC power supply. This makes it best suited for fixed studio installations or rigs equipped with appropriate DC power, rather than standalone portable battery-powered operation.
What color sampling does the CV-346 offer for video output?+
The CV-346 outputs video with 4:2:2 color sampling. This is a professional-grade chroma subsampling format that retains more color detail than 4:2:0, making it well-suited for chroma keying and professional post-production.
