Marshall Electronics CV-380-CS 4K Studio Camera

The Marshall Electronics CV-380-CS is a 8.5 MP 1/2.5 inch cinema camera — with 4K video. Check GearFocus for current availability, with buyer protection on every purchase.

Marshall Electronics CV-380-CS 4K Studio Camera

Marshall Electronics CV-380-CS 4K Studio Camera

Get notified when one lists.

We'll text or email you the moment a Marshall Electronics CV-380-CS 4K Studio Camera is listed on GearFocus.

Have a Marshall Electronics CV-380-CS sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Marshall Electronics CV-380-CS on GearFocus

Camera Overview — Marshall Electronics CV-380-CS

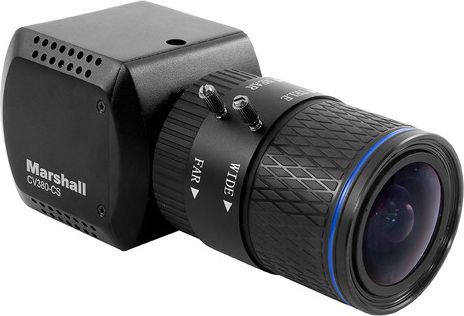

The Marshall Electronics CV-380-CS is a compact 4K studio camera built for professional broadcast and production environments. At its core sits an 8.5 MP, 1/2.5-inch Sony image processor-driven sensor capable of capturing 4K DCI resolution at 4096 x 2160 pixels. The camera covers a broad ISO range from 100 to 3200, giving operators meaningful flexibility across varying lighting conditions.

Video output reaches 4K DCI at up to 30fps, while 50fps, 59.94fps, and 60fps are available at lower resolutions, and the 8-bit 4:2:2 bit depth supports clean color reproduction for broadcast workflows. Color profile options include Standard and Custom modes. Connectivity is handled through HDMI 1.4 output, a USB port, and a 3.5mm TRS microphone jack, making integration into existing production rigs straightforward.

The lens mount is C-Mount, offering access to a wide range of cinema and broadcast lenses. The camera operates entirely on manual focus, which suits static studio setups where precision and repeatability matter more than speed. Power comes from a 12V DC external supply, appropriate for rack or rig-mounted studio use.

The aluminum alloy body measures 68 x 63 x 104 mm and weighs just 320g, keeping the footprint small for multi-camera studio arrays or tight installation spaces. There is no built-in image stabilization, no viewfinder, and no onboard display, reinforcing its identity as a fixed-position studio tool.

Key Features — Marshall Electronics CV-380-CS

4K DCI Resolution: Captures 4096 x 2160 video at up to 30fps, meeting professional broadcast and production delivery standards.

1/2.5-Inch Sony Sensor: 8.5MP sensor driven by a Sony image processor delivers clean output suited to controlled studio environments.

8-Bit 4:2:2 Color Sampling: Provides broadcast-grade color reproduction with solid chroma detail for integration into professional post workflows.

Wide Frame Rate Support: Covers 23.976, 24, 25, 29.97, 30, 50, 59.94, and 60fps to accommodate both international broadcast standards and cinematic frame rates.

C-Mount Lens Compatibility: Industry-common mount gives operators access to a broad selection of interchangeable cinema and broadcast lenses.

Manual Focus Design: Manual-only focus operation suits fixed studio positions where precise, repeatable framing is the priority.

Camera Specifications — Marshall Electronics CV-380-CS

Marshall Electronics CV-380-CS full specifications
SpecDetail
Use CasesStudio
TypeOther
Sensor1/2.5 inch
Resolution8.5 MP
ProcessorSony
ISO Range100 – 3200
AF SystemManual Focus Only
AF PointsManual focus only
Max Photo Resolution4096 x 2160 px
Max Video Resolution4K
Max Frame Rate30fps
Bit Depth8-bit 4:2:2

Description — Marshall Electronics CV-380-CS

The Marshall Electronics CV-380-CS is a purpose-built 4K studio camera designed for fixed broadcast and production installations. Powered by an 8.5 MP sensor measuring 1/2.5 inch and driven by a Sony image processor, it delivers 4K DCI (4096 x 2160) video output with 8-bit 4:2:2 color sampling. The camera supports a comprehensive set of frame rates — 23.976fps, 24fps, 25fps, 29.97fps, 30fps, 50fps, 59.94fps, and 60fps — covering broadcast standards across global markets.

ISO sensitivity runs from 100 to 3200, and color profiles include Standard and Custom options. The C-Mount lens system allows for flexible lens selection, while video output is handled via HDMI 1.4. Audio input is provided through a 3.5mm TRS microphone jack, and a USB port handles additional connectivity.

The aluminum alloy body weighs just 320g and measures 68 x 63 x 104 mm, making it well-suited for multi-camera studio arrays. Power is supplied via 12V DC external power, consistent with professional studio infrastructure. The camera is manual focus only with no image stabilization of any kind.

Pros — Marshall Electronics CV-380-CS

  • ✓4K DCI (4096 x 2160) maximum video resolution provides high-detail output for professional broadcast use
  • ✓Wide frame rate selection covering 23.976fps, 24fps, 25fps, 29.97fps, 30fps, 50fps, 59.94fps, and 60fps suits diverse production standards
  • ✓8-bit 4:2:2 bit depth delivers solid color sampling for broadcast-grade workflows

Cons — Marshall Electronics CV-380-CS

  • ✗Manual focus only with no autofocus system limits use cases to controlled, static studio environments
  • ✗No image stabilization of any kind — neither in-body nor digital
  • ✗No onboard display or viewfinder requires reliance on external monitoring equipment

Reviews — Marshall Electronics CV-380-CS

Videos — Marshall Electronics CV-380-CS

Marshall Electronics CV342-CSB & CV500-MB-2 Broadcast Cameras Overview | Full Compass — Full Compass

Resources & Downloads — Marshall Electronics CV-380-CS

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-380-CS

What lens mount does the Marshall CV-380-CS use?+
The CV-380-CS uses a C-Mount lens mount, which is common in broadcast and machine vision applications. This gives operators access to a wide selection of compatible studio and industrial lenses.
What is the maximum video resolution and frame rate this camera supports?+
The camera captures video at a maximum resolution of 4K DCI (4096 x 2160) with a maximum frame rate of 30fps at that resolution. Additional frame rates including 50fps, 59.94fps, and 60fps are also available.
Does the CV-380-CS have any autofocus capability?+
No — the camera is manual focus only with no autofocus system, subject tracking, or eye tracking. It is designed for fixed studio positions where focus is set and locked.
How is the camera powered?+
The CV-380-CS runs on 12V DC external power and requires an external power supply to operate. There is no internal battery, making it suited for permanent or semi-permanent studio installations.
What video output connections does the camera offer?+
The camera provides an HDMI 1.4 output for video signal transmission, along with a USB port and a 3.5mm TRS microphone jack for audio and data connectivity.
What color profiles are available for video recording?+
The CV-380-CS offers Standard and Custom color profiles for both photo and video capture, allowing operators to tune the image output to match their production pipeline.
