Marshall Electronics CV-502-MB 2.5MP Full HD Studio Camera

The Marshall Electronics CV-502-MB is a 2.5MP 1/3 inch camera — with 1080p video. Check GearFocus for current availability, with buyer protection on every purchase.

Marshall Electronics CV-502-MB 2.5MP Full HD Studio Camera

Marshall Electronics CV-502-MB 2.5MP Full HD Studio Camera

Get notified when one lists.

We'll text or email you the moment a Marshall Electronics CV-502-MB 2.5MP Full HD Studio Camera is listed on GearFocus.

Have a Marshall Electronics CV-502-MB sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Marshall Electronics CV-502-MB on GearFocus

Overview — Marshall Electronics CV-502-MB

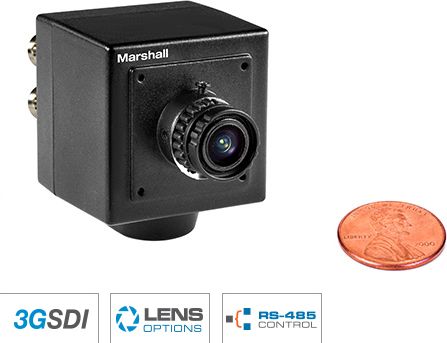

The Marshall Electronics CV-502-MB is a compact studio camera built around a 2.5MP, 1/3-inch sensor powered by Marshall's proprietary pixel technology. Designed for professional broadcast and point-of-view applications, it captures Full HD 1080p video at frame rates ranging from 25fps up to 60fps, covering a broad range of international broadcast standards including 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps. Video is output at 8-bit color depth, and the camera supports multiple color and exposure profiles — Standard, WDR, BLC, HLC, and Manual Gamma — giving operators meaningful control over image rendering in demanding lighting conditions.

The ISO range runs from 100 to 3200, providing flexibility across varied lighting environments. On the imaging side, digital electronic image stabilization is available. The camera accepts C-Mount lenses, making it compatible with a wide ecosystem of optics.

It runs on an external 12V DC power supply, suiting it to fixed studio and broadcast installations where mains power is readily available. The aluminum alloy body keeps weight down to just 140g, and the compact 37 x 37 x 35 mm form factor makes it easy to integrate into tight spaces on set, in rigs, or mounted on broadcast infrastructure. Focus is manual only, which is standard practice in controlled studio environments where operators set focus once and lock it in.

Key Features — Marshall Electronics CV-502-MB

2.5MP 1/3-Inch Sensor: Marshall's proprietary pixel technology delivers Full HD 1080p capture in a compact sensor format suited to studio and broadcast POV applications.

1080p Up to 60fps: Supports six frame rates — 25, 29.97, 30, 50, 59.94, and 60fps — covering major international broadcast standards out of the box.

C-Mount Lens Compatibility: Accepts the widely available C-Mount lens standard, giving operators access to a broad ecosystem of interchangeable optics.

Multiple Exposure Profiles: Standard, WDR, BLC, HLC, and Manual Gamma modes allow operators to adapt image rendering to challenging or variable lighting conditions.

ISO 100–3200 Range: Provides usable sensitivity across a range of studio and controlled environments, from bright setups to lower-light conditions.

Digital Image Stabilization: Electronic stabilization helps reduce the effect of minor vibration in fixed-mount or rigged broadcast installations.

Specifications — Marshall Electronics CV-502-MB

Marshall Electronics CV-502-MB full specifications
SpecDetail
Use CasesStudio
TypeOther
Sensor1/3 inch
Resolution2.5MP
ProcessorProprietary Marshall pixel technology
ISO Range100 – 3200
AF SystemManual Focus Only
AF PointsN/A
Max Video Resolution1080p
Max Frame Rate60fps
Bit Depth8-bit
Image StabilizationDigital / Electronic IS

Description — Marshall Electronics CV-502-MB

The Marshall Electronics CV-502-MB is a purpose-built studio camera featuring a 2.5MP sensor on a 1/3-inch format, processed by Marshall's proprietary pixel technology. It records Full HD 1080p video at 8-bit color depth across six supported frame rates — 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps — making it suited to both NTSC and PAL broadcast workflows. Operators can choose from five image profiles including Standard, WDR, BLC, HLC, and Manual Gamma to manage exposure and color rendering in varied lighting conditions.

ISO sensitivity spans 100 to 3200, and digital electronic image stabilization is built in. The camera uses a C-Mount lens interface, offering broad lens compatibility. Focus is manual only, appropriate for controlled broadcast environments.

Power comes from an external 12V DC supply rather than a battery. The aluminum alloy body measures just 37 x 37 x 35 mm and weighs 140g, enabling unobtrusive integration into studio rigs, fixed mounts, and broadcast infrastructure. There is no weather sealing, so it is designed for indoor use.

Pros — Marshall Electronics CV-502-MB

  • ✓Supports six frame rates (25fps to 60fps) covering major international broadcast standards
  • ✓Multiple color/exposure profiles — Standard, WDR, BLC, HLC, and Manual Gamma — for adaptive image control
  • ✓Compact aluminum alloy body at just 140g and 37 x 37 x 35 mm

Cons — Marshall Electronics CV-502-MB

  • ✗No weather sealing, limiting use to controlled indoor environments
  • ✗Manual focus only — no autofocus system available
  • ✗Requires an external 12V DC power supply; not self-powered or battery-operated

Videos — Marshall Electronics CV-502-MB

Marshall Electronics Brings Their Pro Series SDI/HDMI Broadcast POV Cameras to IBC 2017 — ProductionHUBTV

Resources & Downloads — Marshall Electronics CV-502-MB

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-502-MB

What video resolutions and frame rates does the CV-502-MB support?+
The CV-502-MB captures Full HD 1080p video at up to 60fps. Supported frame rates include 60fps, 59.94fps, 50fps, 30fps, 29.97fps, and 25fps, covering both NTSC and PAL broadcast standards.
What lenses are compatible with this camera?+
The CV-502-MB uses a C-Mount lens interface, which is a widely used standard in broadcast and industrial cameras. Any C-Mount compatible lens can be used with this body.
How is the camera powered?+
The CV-502-MB is powered by an external 12V DC power supply. It has no internal battery, making it best suited for fixed studio or broadcast installations with reliable mains power access.
Does the camera have autofocus?+
No — the CV-502-MB is a manual focus only camera. This is typical for fixed studio and broadcast setups where focus is pre-set and locked before a shoot begins.
What image profiles are available for exposure and color control?+
The camera offers five profiles: Standard, WDR (Wide Dynamic Range), BLC (Back Light Compensation), HLC (Highlight Compensation), and Manual Gamma. These give operators control over how the camera handles challenging or variable lighting conditions.
How large and heavy is the CV-502-MB body?+
The body measures 37 x 37 x 35 mm and weighs 140g. It is constructed from metal aluminum alloy, keeping it light and rigid for integration into broadcast rigs and tight mounting configurations.
