Overview — Marshall Electronics CV-506-H12

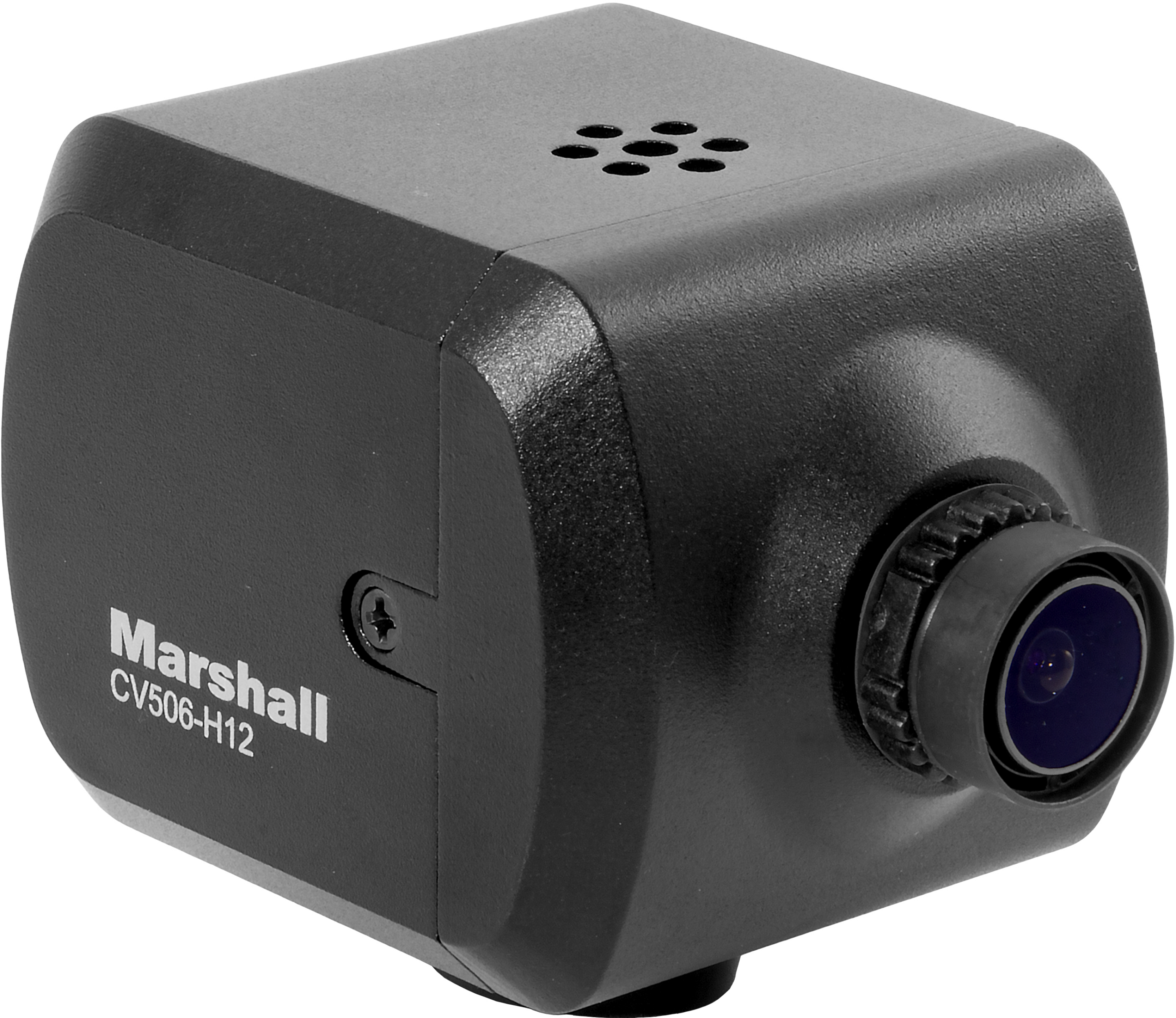

The Marshall Electronics CV-506-H12 is a miniature studio camera built for broadcast, television production, and specialized video capture environments where a compact, high-speed camera is required. At the heart of the camera is a 2.2MP sensor paired with a Sony Exmor image processor, outputting video at up to 1080p resolution with an impressive maximum frame rate of 120fps. The camera supports a broad range of frame rates — 120fps, 100fps, 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, 24fps, and 23.98fps — making it highly adaptable to international broadcast standards as well as high-speed slow-motion capture workflows.

Video is output in 8-bit 4:2:2 color over a full-size HDMI (Type A) connection, which is a standard and reliable interface for studio integration. A 3.5mm TRS stereo microphone jack supports both mic and line level audio input, adding flexibility for on-camera sound. The camera operates on 12V DC external power and features a metal body with reinforced structural wings, measuring approximately 44 x 44 x 56mm and weighing just 150g.

Focus is entirely manual. There is no built-in image stabilization, no wireless connectivity, and no onboard storage, positioning this as a purpose-built studio tool rather than a general-purpose camera.

Key Features — Marshall Electronics CV-506-H12

1080p at 120fps: Captures full HD video at up to 120fps, enabling high-speed slow-motion playback in broadcast and studio workflows.

Broad Frame Rate Support: Supports multiple frame rates including 23.98, 25, 29.97, 50, 59.94, and 120fps, covering international broadcast standards and high-speed capture needs.

8-Bit 4:2:2 Color Output: Broadcast-standard chroma sampling delivers clean color data well-suited for chroma keying and color grading in post-production.

Sony Exmor 2.2MP Sensor: Purpose-built 2.2MP sensor with Sony Exmor image processing optimized for dedicated video production rather than stills capture.

Full-Size HDMI Output: Type A HDMI connector integrates directly with broadcast switchers, monitors, and capture cards without adapters.

3.5mm Stereo Audio Input: TRS jack accepts both mic and line level signals, allowing on-camera audio capture without an external mixer.

Specifications — Marshall Electronics CV-506-H12

Marshall Electronics CV-506-H12 full specifications
SpecDetail
Use CasesStudio, Sports
TypeOther
SensorOther
Resolution2.2MP
ProcessorSony Exmor
AF PointsManual focus only
Max Video Resolution1080p
Max Frame Rate120fps
Bit Depth8-bit 4:2:2
Image StabilizationNone
HDMIFull-size HDMI (Type A)
Battery12V DC (external power supply)

Description — Marshall Electronics CV-506-H12

The Marshall Electronics CV-506-H12 is a purpose-built miniature studio camera designed for broadcast and television production environments. Its 2.2MP sensor is paired with a Sony Exmor image processor and delivers video output at up to 1080p resolution. The camera's standout capability is its high-speed performance, reaching a maximum of 120fps while also supporting 100fps, 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, 24fps, and 23.98fps — covering virtually every international broadcast standard.

Video is output in 8-bit 4:2:2 over a full-size HDMI (Type A) port, and audio is handled via a 3.5mm TRS stereo jack that accepts both mic and line level input. The metal body with reinforced structural wings measures approximately 44 x 44 x 56mm and weighs just 150g, making it easy to integrate into tight studio rigs or specialty mounting positions. The camera requires 12V DC external power and is manual focus only, with no wireless connectivity or onboard storage.

Pros — Marshall Electronics CV-506-H12

  • ✓High-speed capture up to 120fps at 1080p, with a comprehensive range of frame rates including 120fps, 100fps, 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, 24fps, and 23.98fps
  • ✓8-bit 4:2:2 color output provides broadcast-friendly chroma sampling for clean keying and color grading
  • ✓Full-size HDMI (Type A) output offers straightforward integration with broadcast switchers and monitors

Cons — Marshall Electronics CV-506-H12

  • ✗Manual focus only — no autofocus system of any kind
  • ✗No image stabilization (no in-body or digital IS)
  • ✗No wireless connectivity — WiFi and Bluetooth are absent

Videos — Marshall Electronics CV-506-H12

Marshall Electronics Introduces Miniature High-Speed Camera & True 4K Compact Cameras at IBC 2018 — ProductionHUBTV

Resources & Downloads — Marshall Electronics CV-506-H12

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-506-H12

What is the maximum frame rate this camera can record at?+
The CV-506-H12 supports a maximum frame rate of 120fps. It also offers 100fps, 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, 24fps, and 23.98fps to cover a wide range of broadcast and production standards.
How does the camera connect to monitors or recording devices?+
The camera outputs video via a full-size HDMI (Type A) connector. There is no wireless output, USB, or onboard storage, so an external HDMI recorder or monitor is required to capture footage.
Does the CV-506-H12 have autofocus?+
No. The camera is manual focus only. There is no autofocus system, no subject tracking, and no eye-tracking functionality.
What power source does this camera use?+
The camera runs on a 12V DC external power supply. It does not support battery operation, so a reliable DC power source must be provided in the installation environment.
What are the camera's physical dimensions and weight?+
The body measures approximately 44 x 44 x 56mm (excluding lens and connectors) and weighs 150g. It is constructed from metal with reinforced structural wings for durability in studio mounting applications.
What audio input options are available?+
The camera includes a 3.5mm TRS stereo jack that accepts both microphone and line level signals, allowing direct audio integration without additional adapters in many standard studio setups.
