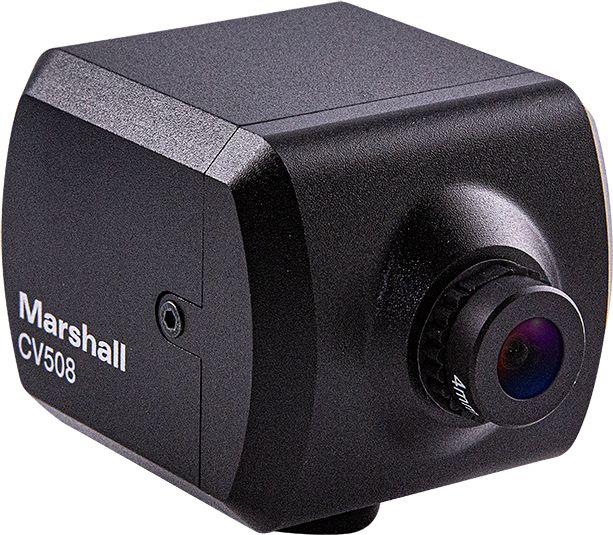

Marshall Electronics CV-508 Micro POV Studio Camera

The Marshall Electronics CV-508 is a 2.2MP Other camera — with 1080p video. Check GearFocus for current availability, with buyer protection on every purchase.

Marshall Electronics CV-508 Micro POV Studio Camera

Marshall Electronics CV-508 Micro POV Studio Camera

Get notified when one lists.

We'll text or email you the moment a Marshall Electronics CV-508 Micro POV Studio Camera is listed on GearFocus.

Have a Marshall Electronics CV-508 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Marshall Electronics CV-508 on GearFocus

Overview — Marshall Electronics CV-508

The Marshall Electronics CV-508 Micro POV Studio Camera is a compact, professionally oriented camera built for broadcast, studio, and live production workflows. At its core sits a 2.2MP Sony IMX CMOS sensor capable of delivering 1080p video output at frame rates spanning 23.976fps all the way up to 60fps, covering virtually every standard broadcast and production frame rate in use today. Video is captured at 10-bit 4:2:2 color depth with BT.709 color profile support, making it well-suited for professional broadcast pipelines that demand accurate, high-fidelity color reproduction.

The camera outputs via Micro HDMI and accepts a 3.5mm stereo audio input, keeping connectivity practical for embedded or rigged installations. It runs on external 12V DC power for continuous operation, making it ideal for fixed installations where battery management would be impractical. The body is constructed from aluminum alloy and measures just 40mm x 44mm x 55mm, weighing only 136g — a genuinely small footprint for a broadcast-grade device.

Lens options are handled through a C-Mount interface, offering flexibility in optical configuration. Focus is fixed, and digital image stabilization is available electronically. No wireless connectivity is included.

Key Features — Marshall Electronics CV-508

1080p HD Video Output: Outputs Full HD 1080p video over Micro HDMI, suitable for professional broadcast, studio, and live production environments.

10-Bit 4:2:2 Color Output: High color depth and chroma sampling ensures accurate, broadcast-grade color reproduction compatible with professional post-production pipelines.

Broadcast Frame Rate Support: Supports 23.976, 24, 25, 29.97, 30, 50, 59.94, and 60fps, covering virtually every standard broadcast and cinema frame rate.

C-Mount Lens Interface: Industry-common C-Mount allows use of a wide range of interchangeable lenses for flexible optical configuration.

Micro HDMI Video Output: Outputs 1080p video over Micro HDMI for straightforward connection to monitors, switchers, or recording devices.

3.5mm Stereo Audio Input: Onboard stereo audio input allows a microphone or line-level source to be connected directly to the camera.

Specifications — Marshall Electronics CV-508

Marshall Electronics CV-508 full specifications
SpecDetail
Use CasesStudio
TypeOther
SensorOther
Resolution2.2MP
ProcessorSony IMX CMOS
AF SystemManual Focus Only
AF PointsFixed Focus
Max Video Resolution1080p
Max Frame Rate60fps
Bit Depth10-bit 4:2:2
Video Color ProfilesBT.709
Image StabilizationDigital / Electronic IS

Description — Marshall Electronics CV-508

The Marshall Electronics CV-508 Micro POV Studio Camera is built around a 2.2MP Sony IMX CMOS sensor and delivers 1080p video at color depth of 10-bit 4:2:2 with a BT.709 color profile — specifications that align directly with professional broadcast standards. Frame rate options are comprehensive, covering 23.976fps, 24fps, 25fps, 29.97fps, 30fps, 50fps, 59.94fps, and 60fps, ensuring compatibility with virtually any production requirement. The body is machined from aluminum alloy and measures just 40mm x 44mm x 55mm at a weight of 136g, making it one of the more compact options for studio or rigged camera positions.

Connectivity includes a Micro HDMI output and a 3.5mm stereo audio input, with power handled via external 12V DC for uninterrupted continuous operation. The C-Mount lens interface opens up a range of optical choices, while digital electronic image stabilization is available on board. Focus is fixed/manual only, and there is no onboard storage, so an external recorder or monitor is required.

Pros — Marshall Electronics CV-508

  • ✓10-bit 4:2:2 color depth delivers broadcast-grade color fidelity for professional production pipelines
  • ✓Wide frame rate support spanning 23.976fps to 60fps covers virtually all standard broadcast and cinema frame rates
  • ✓Compact aluminum alloy body measuring just 40mm x 44mm x 55mm and weighing 136g enables tight or discreet mounting scenarios

Cons — Marshall Electronics CV-508

  • ✗No weather sealing, limiting use in outdoor or uncontrolled environments
  • ✗Fixed focus with no autofocus system means focus must be set manually and cannot adapt to moving subjects
  • ✗No onboard storage media, requiring a direct connection to a recorder or monitor at all times

Videos — Marshall Electronics CV-508

Compact 4k Cameras CE420-CS, CV506 and CV503 from Marshall at NAB 2019 — KITPLUS

Resources & Downloads — Marshall Electronics CV-508

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-508

What video resolutions and frame rates does the CV-508 support?+
The CV-508 outputs up to 1080p video. Supported frame rates include 60fps, 59.94fps, 50fps, 30fps, 29.97fps, 25fps, 24fps, and 23.976fps, covering the full range of common broadcast and production standards.
How is the camera powered?+
The CV-508 runs on external 12V DC power, enabling continuous operation without the need to manage or swap batteries — making it well-suited for fixed studio or broadcast installations.
What lens mount does the CV-508 use?+
The camera uses a C-Mount lens interface, which provides compatibility with a broad range of C-Mount optics for different focal length and optical requirements.
Does the CV-508 have any image stabilization?+
The CV-508 includes digital electronic image stabilization. There is no in-body optical stabilization.
What audio and video connectivity does the CV-508 offer?+
The camera features a Micro HDMI output for video and a 3.5mm stereo audio input for external audio sources. There is no USB, Wi-Fi, or Bluetooth connectivity.
Is the CV-508 weather sealed for outdoor use?+
No, the CV-508 has no weather sealing. It is best suited for controlled indoor environments such as studios and broadcast facilities.
