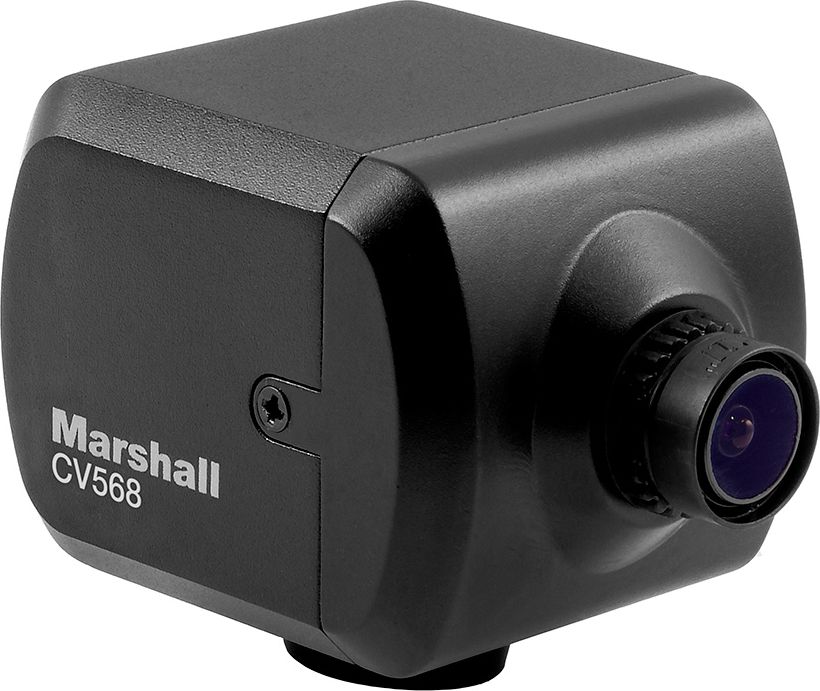

Marshall Electronics CV-568 Miniature Global Shutter Studio Camera

The Marshall Electronics CV-568 is a 1/1.8 inch camera — with Full HD (1080p) video. Check GearFocus for current availability, with buyer protection on every purchase.

Marshall Electronics CV-568 Miniature Global Shutter Studio Camera

Marshall Electronics CV-568 Miniature Global Shutter Studio Camera

Get notified when one lists.

We'll text or email you the moment a Marshall Electronics CV-568 Miniature Global Shutter Studio Camera is listed on GearFocus.

Have a Marshall Electronics CV-568 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Marshall Electronics CV-568 on GearFocus

Overview — Marshall Electronics CV-568

The Marshall Electronics CV-568 is a miniature studio camera built around a 1/1.8-inch Sony Exmor image processor-equipped sensor, designed for professional broadcast and production environments. Its compact aluminum alloy body measures just 59 x 59 x 60 mm and weighs 280g, making it well-suited for tight installation spaces where a full-size camera simply won't fit. The camera accepts C-Mount lenses, giving operators access to a wide range of interchangeable optics depending on the application.

For video output, it supports a broad set of formats including 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps, 1080i at 60, 59.94, and 50 fields per second, and 720p at 60, 59.94, and 50 fps. Output is delivered via HDMI Type A (1.3). Audio connectivity is handled through a mic/line level input with 2.5V bias and stereo embedding up to 48kHz.

The camera runs on an external DC 12V power supply and has no built-in display or viewfinder, which is typical for a fixed-installation studio unit. Focus is entirely manual via the attached lens, with no autofocus system on board. There is no image stabilization, no Wi-Fi, and no Bluetooth — this is a purpose-built, no-frills production camera intended for integration into structured broadcast workflows.

Key Features — Marshall Electronics CV-568

Global Shutter Sensor: Eliminates rolling shutter artifacts, making it well-suited for fast-moving subjects and broadcast environments where image integrity is critical.

1/1.8-Inch Sony Exmor Sensor: A well-regarded broadcast-grade sensor format that balances image quality with the compact body size required for studio installation use.

C-Mount Lens Compatibility: Accepts a wide range of interchangeable C-Mount lenses, giving operators flexibility to match optics to the specific production requirement.

Broad Frame Rate Support: Covers 1080p at up to 60fps, 1080i, and 720p across international broadcast frame rates including 23.98, 25, 50, and 59.94fps.

HDMI Type A Output: Delivers video output via HDMI 1.3 for straightforward connection to production monitors, capture cards, and video switchers.

Integrated Audio Embedding: Mic/line level input with 2.5V bias supports stereo audio embedding up to 48kHz, consolidating audio and video into a single output signal.

Specifications — Marshall Electronics CV-568

Marshall Electronics CV-568 full specifications
SpecDetail
Use CasesStudio
TypeOther
Sensor1/1.8 inch
ProcessorSony Exmor (model not specified)
AF SystemManual Focus Only
AF PointsManual focus via lens; no autofocus points
Max Video ResolutionFull HD (1080p)
Max Frame Rate60fps
Bit Depth8-bit (typical for 3G-SDI/HDMI output; not explicitly specified)
Image StabilizationNone
DisplayNone (no built-in display)
ViewfinderNone

Description — Marshall Electronics CV-568

The Marshall Electronics CV-568 is a purpose-built miniature studio camera housed in a rigid aluminum alloy body measuring 59 x 59 x 60 mm and weighing just 280g. At its core is a 1/1.8-inch sensor paired with a Sony Exmor image processor, delivering broadcast-ready video through an HDMI Type A (1.3) output. The camera supports an extensive range of frame rates: 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps, 1080i at 60, 59.94, and 50 fps, and 720p at 60, 59.94, and 50 fps, with a maximum output of 60fps.

Lens mounting is via the C-Mount standard, with focus handled entirely manually through the attached lens. Audio is supported through a mic/line level input (2.5V bias) with stereo embedding up to 48kHz. Power comes from an external DC 12V supply.

The camera has no built-in display, no viewfinder, no autofocus, and no image stabilization — making it a streamlined, integration-focused tool for structured broadcast and production installations.

Pros — Marshall Electronics CV-568

  • ✓Compact aluminum alloy body at just 59 x 59 x 60 mm and 280g enables flexible installation in tight spaces
  • ✓Wide frame rate support across 1080p, 1080i, and 720p formats including 23.98 and 50fps options
  • ✓Sony Exmor sensor in a 1/1.8-inch format provides a solid imaging foundation for broadcast use

Cons — Marshall Electronics CV-568

  • ✗No built-in display or viewfinder requires external monitoring equipment for setup and operation
  • ✗Manual focus only — no autofocus system of any kind is available
  • ✗Requires an external DC 12V power supply; no battery option for portable or standalone use

Videos — Marshall Electronics CV-568

Tod Musgrave of Marshall Electronics Shows Off New Cameras — ProductionHUBTV

Resources & Downloads — Marshall Electronics CV-568

Manuals & Guides

Frequently Asked Questions — Marshall Electronics CV-568

What lens mount does the Marshall CV-568 use?+
The CV-568 uses a C-Mount lens interface, allowing compatibility with a wide selection of C-Mount optics. Lens selection will directly impact the field of view and imaging characteristics, since the camera itself has no autofocus — focus is set manually through the lens.
What video resolutions and frame rates does the CV-568 support?+
The camera supports 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps; 1080i at 60, 59.94, and 50 fields per second; and 720p at 60, 59.94, and 50 fps. The maximum frame rate is 60fps. Output is via HDMI Type A (1.3).
How is the CV-568 powered?+
The CV-568 is powered by an external DC 12V power supply. There is no internal battery or battery compartment, so the camera requires a continuous external power source and is designed for fixed installation or studio use rather than run-and-gun scenarios.
Does the CV-568 have any audio input capability?+
Yes. The camera includes a mic/line level input with 2.5V bias, supporting stereo audio embedding at up to 48kHz. This allows audio to be embedded directly into the video signal output via the HDMI Type A connection.
Is the CV-568 weather sealed for outdoor use?+
No. The specifications indicate no weather sealing is present on this camera. While the aluminum alloy body provides structural rigidity, the camera is not rated for exposure to moisture or dust and is best suited for controlled indoor production environments.
