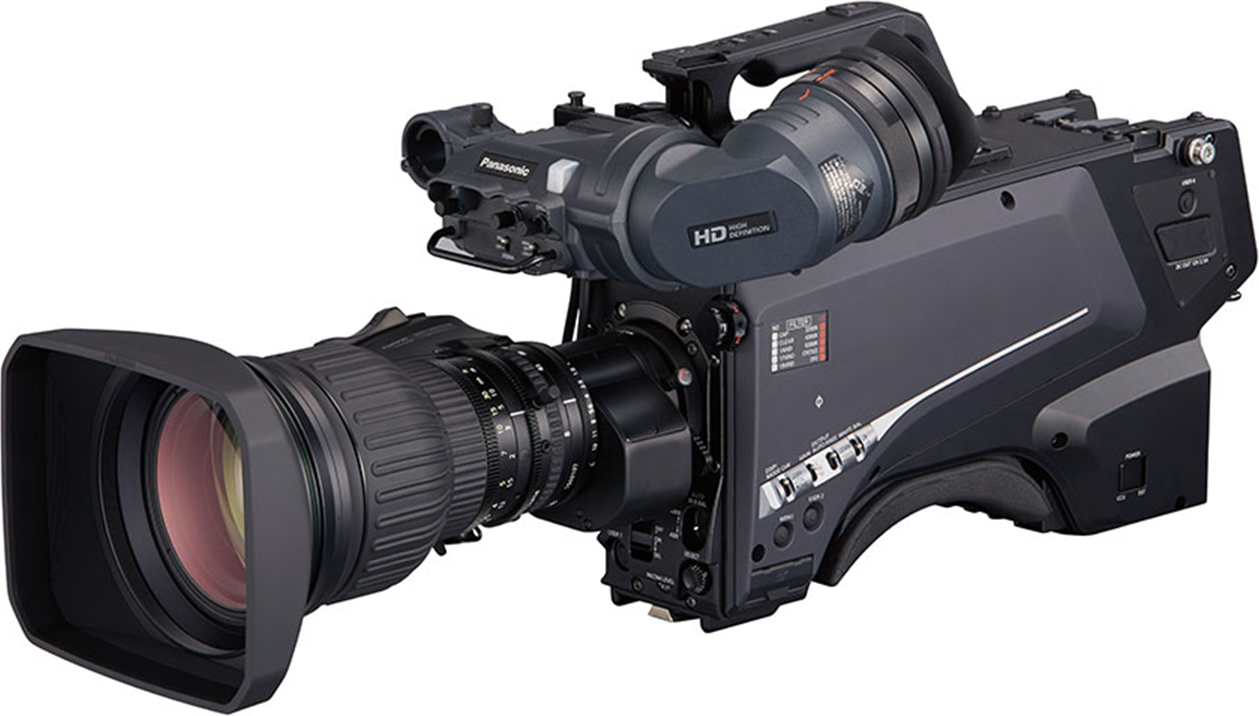

Panasonic AK-HC5000 Camcorder

The Panasonic AK-HC5000 is a 2.2 MP (per sensor), 3 x 2.2 MP MOS 2/3 inch cinema camera — with 1920 x 1080 video. Check GearFocus for current availability, with buyer protection on every purchase.

Panasonic AK-HC5000 Camcorder

Panasonic AK-HC5000 Camcorder

Get notified when one lists.

We'll text or email you the moment a Panasonic AK-HC5000 Camcorder is listed on GearFocus.

Have a Panasonic AK-HC5000 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Panasonic AK-HC5000 on GearFocus

Available Now on GearFocus

Panasonic AG-DVX100A 3CCD Cinema MiniDV Camcorder Turnkey Master Kit - 194 Hrs
PanasonicLike New

Panasonic AG-DVX100A 3CCD Cinema MiniDV Camcorder Turnkey Master Kit - 194 Hrs

$699.99
Panasonic Varicam LT 4K Cinema Camera Pro Kit *Read
PanasonicGood

Panasonic Varicam LT 4K Cinema Camera Pro Kit *Read

$2,299.00
Free shipping
Panasonic AG-HMC150P Video Camcorder Camera AVCCAM
PanasonicGood

Panasonic AG-HMC150P Video Camcorder Camera AVCCAM

$621.86
Free shipping

Camera Overview — Panasonic AK-HC5000

The Panasonic AK-HC5000 is a professional broadcast and studio camera built around a 2/3-inch 3MOS sensor configuration, combining three 2.2 MP MOS sensors for HD video acquisition. Designed for demanding live production, broadcast, and studio environments, the camera outputs video at up to 1920 x 1080 resolution with 10-bit color depth, giving colorists and broadcast engineers a meaningful degree of latitude in post-production or live grading workflows. The frame rate roster is impressively wide, spanning standard broadcast cadences such as 23.98p, 25p, 29.97p, 50i, and 59.94i alongside higher-speed options including 50p, 59.94p, 100 fps, 119.88 fps, 200 fps, and up to 239.76 fps — opening the door to slow-motion production work within a broadcast-grade body.

Color science tools onboard include CineGamma, Dynamic Range Stretch, HDR, User Gamma, and 12-axis Color Correction, providing flexible image control for varied production requirements. The camera uses a B4 lens mount, the industry-standard interface for broadcast lenses, and is powered externally via DC 12V through an XLR 4-pin connector or via a Camera Control Unit. The body is constructed from magnesium alloy and reinforced plastic, weighing 4.4 kg, with dimensions of 340 mm x 234 mm x 193 mm.

An optional viewfinder such as the AK-HVF100GJ provides a 9.0-inch 1920 x 1080 LCD display. The camera features XLR microphone input and headphone monitoring output, while video output relies on 3G-SDI, HD-SDI, and fiber connections rather than HDMI.

Key Features — Panasonic AK-HC5000

2/3-Inch 3MOS Sensor: Three discrete 2.2MP MOS sensors split light via a prism block for accurate color separation, a standard architecture in broadcast camera systems.

High-Speed Frame Rates: Supports high-speed recording at 100, 119.88, 200, and 239.76 fps at 1080i/720p resolutions, enabling broadcast-quality slow-motion capture within a studio camera body.

10-Bit Color Output: Records and outputs 10-bit color depth, giving engineers and colorists additional tonal latitude in live grading and post-production workflows.

12-Axis Color Correction: Onboard 12-axis color correction allows precise hue, saturation, and luminance adjustments for consistent image matching across multi-camera productions.

CineGamma & HDR Profiles: Includes CineGamma, Dynamic Range Stretch, HDR, and User Gamma options for flexible image rendering suited to a range of broadcast and production requirements.

B4 Lens Mount: Industry-standard B4 mount provides compatibility with the broad ecosystem of professional broadcast zoom and prime lenses from Canon, Fujinon, and others.

Camera Specifications — Panasonic AK-HC5000

Panasonic AK-HC5000 full specifications
SpecDetail
Use CasesStudio, Sports, Video / Cinematography
TypeOther
Sensor2/3 inch
Resolution2.2 MP (per sensor), 3 x 2.2 MP MOS
ProcessorNot specified (proprietary Panasonic broadcast image processing)
ISO Range200 – 3600
AF SystemManual Focus Only
AF PointsManual focus only
Max Photo ResolutionNot applicable (video camera)
Max Video Resolution1920 x 1080
Max Frame Rate240fps
Bit Depth10-bit

Description — Panasonic AK-HC5000

The Panasonic AK-HC5000 is a professional broadcast studio camera built for high-demand live production and studio environments. At its core is a 2/3-inch 3MOS sensor system, combining three 2.2 MP MOS sensors for HD image acquisition at up to 1920 x 1080 resolution with 10-bit color depth. The camera's extensive frame rate range — from standard cadences like 23.98p, 25p, 29.97p, 50i, and 59.94i through to high-speed options of 100 fps, 119.88 fps, 200 fps, and 239.76 fps — makes it a versatile tool across broadcast, sports, and slow-motion production applications.

Color science capabilities include CineGamma, Dynamic Range Stretch (DRS), HDR, User Gamma, and 12-axis Color Correction. The B4 lens mount connects the camera to industry-standard broadcast optics, while audio is handled via XLR microphone input and headphone monitoring output. Video output routes through 3G-SDI, HD-SDI, and fiber connections.

The body is constructed from magnesium alloy and reinforced plastic, weighing 4.4 kg with dimensions of 340 mm x 234 mm x 193 mm. ISO sensitivity ranges from 200 to 3600. An optional 9.0-inch 1920 x 1080 LCD viewfinder (AK-HVF100GJ) is available separately.

Pros — Panasonic AK-HC5000

  • ✓Wide frame rate support including 100 fps, 119.88 fps, 200 fps, and up to 239.76 fps for slow-motion broadcast production
  • ✓10-bit color depth provides meaningful tonal range for broadcast and live production workflows
  • ✓Comprehensive color tools including CineGamma, Dynamic Range Stretch, HDR, User Gamma, and 12-axis Color Correction

Cons — Panasonic AK-HC5000

  • ✗No weather sealing, which may limit deployment in outdoor or uncontrolled environments
  • ✗Maximum video resolution is 1920 x 1080 — no 4K or UHD output available
  • ✗Relies entirely on external DC 12V or CCU power; no self-contained battery operation

Videos — Panasonic AK-HC5000

Panasonic 4K/HD Cameras and Projectors Energize Redemption Church — Panasonic North America

Resources & Downloads — Panasonic AK-HC5000

Manuals & Guides

Frequently Asked Questions — Panasonic AK-HC5000

What lens mount does the AK-HC5000 use?+
The AK-HC5000 uses a B4 lens mount, the standard interface for professional broadcast lenses. This makes it compatible with a wide range of studio and ENG lenses designed for the B4 standard.
What are the maximum frame rates available on the AK-HC5000?+
The camera supports frame rates up to 239.76 fps, with additional high-speed options at 200 fps, 119.88 fps, and 100 fps. Standard broadcast cadences including 23.98p, 25p, 29.97p, 50i, 59.94i, 50p, and 59.94p are also available.
How is the AK-HC5000 powered?+
The camera is powered externally via a DC 12V supply through an XLR 4-pin connector, or through a Camera Control Unit (CCU). It does not operate on a self-contained battery pack, so it requires studio or external power infrastructure.
Does the AK-HC5000 include a viewfinder?+
A viewfinder is not included as standard but is available as an optional accessory. The AK-HVF100GJ is a compatible option, providing a 9.0-inch 1920 x 1080 LCD display with a 60Hz refresh rate.
What color profiles does the AK-HC5000 support?+
The camera supports CineGamma, Dynamic Range Stretch (DRS), HDR, User Gamma, and 12-axis Color Correction. These tools are available for both in-camera image control and live production color management.
What video output connections does the AK-HC5000 provide?+
The camera does not include an HDMI output. Instead, it relies on 3G-SDI, HD-SDI, and fiber outputs for video signal distribution, which are standard in professional broadcast and studio environments.
