Overview — Phase One 645DF

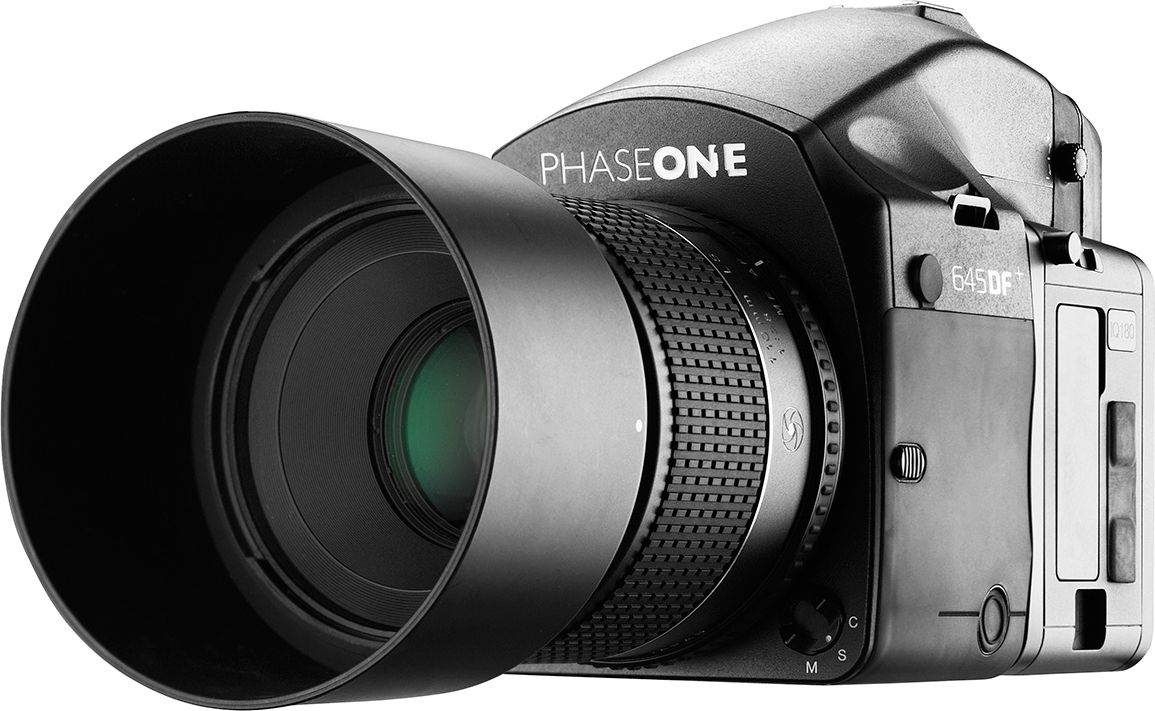

The Phase One 645DF is a professional medium format camera body built around the Mamiya 645 lens mount, making it compatible with an extensive range of 645-system glass. Constructed from a combination of metal and plastic, the body measures 155 x 155 x 135mm and weighs 1,148g — substantial, as expected from a medium format platform designed for critical imaging work. The autofocus system relies on phase detection with 3 selectable focus points, providing targeted control over focus placement rather than a wide, automated array.

The viewfinder is an optical pentaprism design, delivering a direct, clear optical view suited to deliberate, considered shooting. ISO sensitivity runs from 50 to 3200, giving photographers a native low-sensitivity option ideal for controlled lighting environments as well as moderate high-ISO headroom. The flash system supports a standard ISO hot shoe and PC sync connection, and notably includes compatibility with high-speed sync when used with leaf shutter lenses — a meaningful advantage for photographers working with flash in bright conditions.

The battery uses a rechargeable EJJ-type cell. No Wi-Fi, Bluetooth, or USB connectivity is present in this body, reflecting its generation and positioning as a dedicated capture platform intended to pair with a separate digital back.

Key Features — Phase One 645DF

Mamiya 645 Lens Mount: Compatible with the full range of Mamiya 645-system lenses, giving photographers access to a broad selection of medium format glass.

Digital Back Compatible: Designed to pair with a separate Phase One or compatible digital back, separating the capture platform from the imaging sensor for modular upgrades.

Phase Detection Autofocus: Three selectable focus points provide deliberate, precise focus placement suited to controlled studio and portrait work.

ISO 50–3200 Range: Native ISO 50 base sensitivity is ideal for studio and controlled-light environments where maximum image quality is the priority.

Leaf Shutter Sync Support: Compatible with high-speed sync when used with leaf shutter lenses, enabling flash use at any shutter speed in bright outdoor conditions.

Optical Pentaprism Viewfinder: Delivers a direct, clear optical view for deliberate, accurate composition without electronic lag or abstraction.

Specifications — Phase One 645DF

Phase One 645DF full specifications
SpecDetail
Use CasesStudio, Fashion
TypeMedium Format
SensorMedium Format
ISO Range50 – 3200
AF SystemPhase Detection
AF Points3 selectable points
Image StabilizationNone
ViewfinderOptical Pentaprism
BatteryRechargeable battery (EJJ type or equivalent)
Weather SealingNone
Dimensions155 x 155 x 135mm
Weight1148g

Description — Phase One 645DF

The Phase One 645DF medium format camera body is built around the Mamiya 645 lens mount and is designed to pair with a compatible digital back for high-resolution capture. The body is constructed from metal and plastic, with dimensions of 155 x 155 x 135mm and a weight of 1,148g. Autofocus is handled by a phase detection system with 3 selectable focus points, giving photographers precise control over focus placement.

The optical pentaprism viewfinder provides a clear, direct view for careful composition. The native ISO sensitivity spans ISO 50 to 3200, with the low-end setting particularly valuable in studio environments. Flash connectivity is covered by a standard ISO hot shoe and PC sync port, with support for high-speed sync when using leaf shutter lenses.

The camera runs on a rechargeable EJJ-type battery. Connectivity is intentionally minimal — there is no Wi-Fi, Bluetooth, or USB on the body — keeping the 645DF focused on its role as a dedicated capture platform within a broader medium format system.

Pros — Phase One 645DF

  • ✓Mamiya 645 lens mount opens access to a wide range of 645-system lenses
  • ✓ISO range of 50–3200 provides a true low-base sensitivity at ISO 50 for controlled studio use
  • ✓High-speed sync support via leaf shutter lenses expands flash versatility outdoors

Cons — Phase One 645DF

  • ✗Only 3 selectable AF points — limited compared to modern camera systems
  • ✗No Wi-Fi or Bluetooth connectivity for wireless image transfer or remote control
  • ✗No USB connectivity on the body itself

Videos — Phase One 645DF

Bear Images Presents: Phase One 645DF Auto Focus — bearimages

Resources & Downloads — Phase One 645DF

Manuals & Guides

Frequently Asked Questions — Phase One 645DF

What lenses are compatible with the Phase One 645DF?+
The 645DF uses the Mamiya 645 lens mount, as listed in the specifications. This makes it compatible with lenses designed for the Mamiya 645 system. Leaf shutter lenses in this mount also unlock the body's high-speed sync flash capability.
What is the ISO range of the 645DF?+
The camera offers an ISO range from 50 to 3200. The ISO 50 base setting is well suited to studio environments with controlled lighting where maximum tonal detail is the priority.
Does the Phase One 645DF have built-in image stabilization?+
No. The specifications confirm that in-body image stabilization, digital image stabilization, and any other stabilization type are all listed as absent or 'None' on this camera body.
Does the 645DF support wireless connectivity?+
No. According to the specifications, Wi-Fi, Bluetooth, and USB connectivity are all absent from this camera body. Data transfer and tethering would need to be handled through the attached digital back.
What type of viewfinder does the 645DF use?+
The 645DF features an optical pentaprism viewfinder. This provides a direct optical view through the lens, which is well suited to precise, deliberate composition in both studio and field settings.
How does the flash system work on the 645DF?+
The body includes a standard ISO hot shoe and a PC sync port for connecting flash equipment. When used with compatible leaf shutter lenses in the Mamiya 645 mount, the system supports high-speed sync, allowing flash use at higher shutter speeds than a typical focal plane shutter would permit.
