Camera Overview — RED Dragon 6K

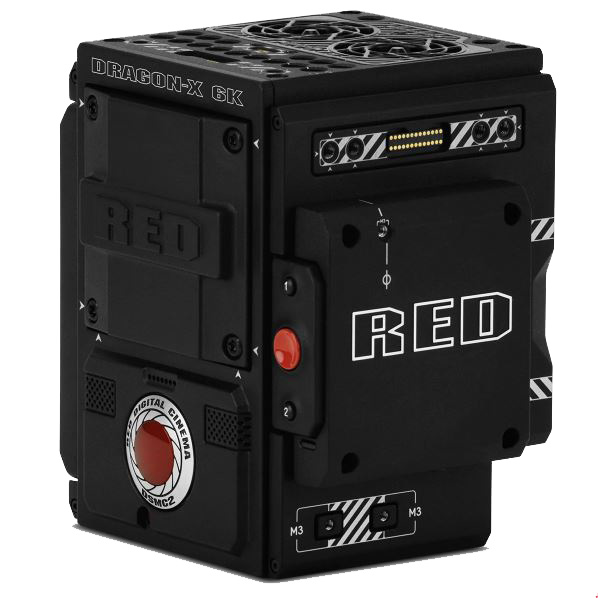

The RED DSMC2 Dragon 6K is a Super 35 cinema camera built around a 6K sensor, offering serious resolution headroom for professional filmmakers working in narrative, commercial, and documentary contexts. The camera records up to 6K at frame rates including 24fps, 30fps, and 60fps, giving shooters flexibility across a range of cinematic and broadcast delivery requirements. Video is captured in RED's proprietary RAW format alongside ProRes and DNxHR options, with 16-bit color depth and color profiles including REDColor and REDGamma for robust post-production latitude.

The native ISO range runs from 200 to 2000, which defines the camera's usable light sensitivity window. Storage is handled exclusively via RED MINI-MAG media. Connectivity includes HDMI, USB-C, and Wi-Fi, while audio is handled through a 3.5mm mic input.

The body is constructed from aluminum alloy, measures 140 x 100 x 120 mm, and weighs 1.52 kg — compact for a cinema-grade platform. The camera is weather sealed, adding a layer of protection for on-location shoots. Power comes from a V-Mount battery rated at 2 hours.

The built-in LCD display measures 4.7 inches at 1920x1080 resolution. Focus is manual only, which is standard practice for cinematic workflows where a dedicated focus puller or follow focus system is used. The lens mount is RED RF.

Key Features — RED Dragon 6K

6K Super 35 Sensor: The Dragon sensor captures up to 6K resolution on a Super 35 frame, providing significant cropping and reframing flexibility in post without sacrificing image quality.

16-Bit RAW Recording: 16-bit color depth in RAW capture delivers extensive dynamic range and grading latitude for demanding post-production workflows.

Multiple Recording Formats: Records natively in REDCODE RAW, ProRes, and DNxHR, accommodating everything from on-set offline editing to final delivery pipelines.

REDColor & REDGamma Profiles: RED's proprietary color science provides a consistent, well-established starting point for color grading across professional post facilities.

High Frame Rate Options: Supports 24fps and 30fps at 6K, with higher frame rates available at reduced resolutions — consult RED's frame rate tables for specifics.

RED MINI-MAG Storage: Uses RED's proprietary MINI-MAG media, designed to handle the sustained high data rates required for 6K RAW recording.

Camera Specifications — RED Dragon 6K

RED Dragon 6K full specifications
Spec	Detail
Use Cases	Video / Cinematography, Documentary, Studio
Type	Other
Sensor	Super 35
Resolution	6K
ISO Range	200 – 2000
AF System	Manual Focus Only
Max Video Resolution	6K
Max Frame Rate	60fps
Bit Depth	16-bit
Image Stabilization	None
Display	4.7 inches LCD
Display Resolution	1920x1080
Storage Media	RED MINI-MAG
Battery	V-Mount
Battery Life	2 hours
Weather Sealing	Weather Sealed
Dimensions	140 x 100 x 120 mm
Weight	1.52kg

Description — RED Dragon 6K

The RED DSMC2 Dragon 6K Cinema Camera is centered on a Super 35 sensor capable of capturing at 6K maximum resolution. Video can be recorded at 24fps, 30fps, or 60fps, with output in RAW, ProRes, or DNxHR formats and 16-bit color depth. Color science is handled via REDColor and REDGamma profiles, giving colorists significant grading latitude in post-production.

The camera's ISO range spans 200 to 2000, and focus is manual only. Storage is handled via RED MINI-MAG media, while connectivity includes HDMI, USB-C, and Wi-Fi. Audio input is provided by a 3.5mm mic input.

The body is built from aluminum alloy, measures 140 x 100 x 120 mm, weighs 1.52 kg, and carries a weather-sealed rating for location resilience. Monitoring is handled by a built-in 4.7-inch LCD at 1920x1080 resolution. Power is supplied via V-Mount battery.

The lens mount is RED RF, and there is no image stabilization of any kind.

Pros — RED Dragon 6K

✓6K maximum video resolution on a Super 35 sensor provides significant framing and reframing flexibility in post
✓16-bit color depth with REDColor and REDGamma profiles delivers extensive dynamic range latitude for color grading
✓Multiple recording formats — RAW, ProRes, and DNxHR — offer workflow flexibility from on-set editing to final delivery
✓Weather-sealed aluminum alloy body at 1.52 kg offers durability without excessive bulk for a cinema camera
✓4.7-inch 1920x1080 LCD display provides a large, detailed on-body monitor for framing and review
✓Wi-Fi connectivity alongside HDMI and USB-C supports versatile on-set monitoring and data transfer options

Cons — RED Dragon 6K

✗Manual focus only means external follow focus systems or dedicated focus pullers are required — no autofocus assistance available
✗ISO range tops out at 2000, which may limit flexibility in very low-light shooting situations
✗Storage is limited exclusively to RED MINI-MAG media, a proprietary and relatively costly format
✗No image stabilization of any kind — optical, in-body, or digital — requiring stabilization to be handled externally
✗Audio input is limited to a single 3.5mm mic input, which may be insufficient for professional multi-channel audio workflows

Videos — RED Dragon 6K

This 9 Year Old RED Sensor Still Produces INCREDIBLE Images!! — CVP

Frequently Asked Questions — RED Dragon 6K

What recording formats does the RED DSMC2 Dragon 6K support?+

The camera supports RAW, ProRes, and DNxHR recording formats. This gives editors and colorists the option to work with highly flexible RAW files or more immediately editable ProRes and DNxHR codecs depending on the production workflow.

What frame rates are available at 6K resolution?+

The camera supports 24fps, 30fps, and 60fps, with a maximum frame rate of 60fps. This covers standard cinematic and broadcast frame rates within the camera's documented frame rate options.

Does this camera have any autofocus capability?+

No — the RED DSMC2 Dragon 6K is manual focus only. There is no autofocus system, eye tracking, or subject tracking. Professional cinema productions typically pair this camera with a dedicated follow focus system or focus puller.

What storage media does the RED DSMC2 Dragon 6K use?+

The camera records exclusively to RED MINI-MAG media. This is a proprietary solid-state storage format, so users will need to factor in RED MINI-MAG cards and a compatible reader when planning their production workflow.

Is the camera body weather sealed?+

Yes, the bodyDesign specifications confirm the RED DSMC2 Dragon 6K is weather sealed. The body is constructed from aluminum alloy and measures 140 x 100 x 120 mm at a weight of 1.52 kg.

What lens mount does the RED DSMC2 Dragon 6K use?+

The camera uses a RED RF lens mount. Buyers should verify lens compatibility with their existing glass or plan lens selection around this mount when building out a kit.
