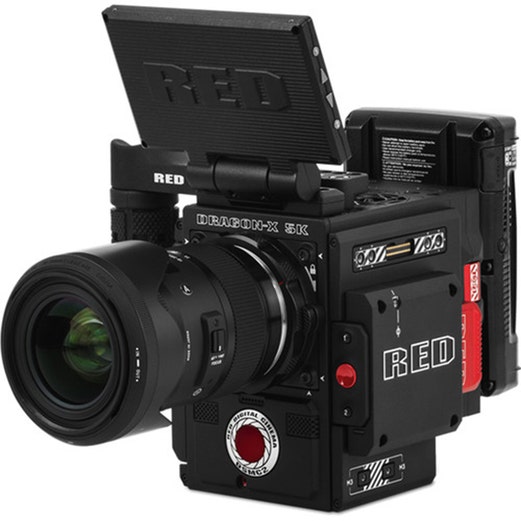

RED DSMC2 Dragon-X 5K Cinema Camera

The RED Digital Cinema Dragon-X 5K is a 5K Super 35 cinema camera — with 5K video. Check GearFocus for current availability, with buyer protection on every purchase.

RED DSMC2 Dragon-X 5K Cinema Camera

RED DSMC2 Dragon-X 5K Cinema Camera

Get notified when one lists.

We'll text or email you the moment a RED DSMC2 Dragon-X 5K Cinema Camera is listed on GearFocus.

Have a RED Digital Cinema Dragon-X 5K sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your RED Digital Cinema Dragon-X 5K on GearFocus

Camera Overview — RED Digital Cinema Dragon-X 5K

The RED DSMC2 Dragon-X 5K is a Super 35 cinema camera built around a 5K sensor with RED's Helium image processor, delivering a native ISO range of 250 to 12800. It records in REDCODE RAW and ProRes formats, capturing 16-bit color depth with Log3G10 and REDWideGamutRGB color profiles for maximum flexibility in post-production. The camera supports a wide range of frame rates — from 23.976fps all the way up to 96fps at 5K — making it a capable tool for both standard cinema work and high-frame-rate slow-motion capture.

Storage is handled exclusively via RED MINI-MAG media. The body is constructed from aluminum alloy, measures 104 x 126 x 146 mm, and weighs 1.52 kg, making it compact relative to many cinema rigs. A 4.7-inch, 1920x1080 LCD touchscreen and an electronic viewfinder with 1920x1080 resolution at 60Hz refresh rate are included for monitoring.

Connectivity includes Wi-Fi, USB-C, a 3.5mm mic input, and a 3.5mm headphone output. The camera accepts both Canon EF and PL mount lenses and is powered via a V-Mount battery system. No image stabilization of any kind is present, and focus is manual only.

Key Features — RED Digital Cinema Dragon-X 5K

5K Super 35 Sensor: The Dragon-X 5K sensor delivers cinema-grade resolution in the industry-standard Super 35 format, compatible with a wide range of cinema lenses and rigs.

REDCODE RAW Recording: REDCODE RAW preserves maximum dynamic range and color data, giving colorists extensive latitude in post-production.

REDWideGamutRGB & Log3G10: RED's native color science and log format are designed to work seamlessly with standard color grading tools and deliver wide-gamut HDR-capable output.

High Frame Rate Capture: Supports frame rates from 23.976fps up to 96fps at reduced resolutions, enabling slow-motion shots for cinematic production.

Dual Lens Mount Support: Compatible with both Canon EF and PL mount lenses, giving shooters access to a broad range of cinema and photographic glass.

ProRes & REDCODE RAW: Simultaneous or selectable recording in ProRes and REDCODE RAW supports both fast-turnaround editorial workflows and full-quality post pipelines.

Camera Specifications — RED Digital Cinema Dragon-X 5K

RED Digital Cinema Dragon-X 5K full specifications
SpecDetail
Use CasesVideo / Cinematography, Documentary, Studio
TypeOther
SensorSuper 35
Resolution5K
ProcessorHelium
ISO Range250 – 12800
AF SystemManual Focus Only
Max Video Resolution5K
Max Frame Rate96fps
Bit Depth16-bit
Video Color ProfilesLog3G10, REDWideGamutRGB
Image StabilizationNone

Description — RED Digital Cinema Dragon-X 5K

The RED DSMC2 Dragon-X 5K is a professional cinema camera built on a Super 35 sensor processed by RED's Helium image processor. It delivers 5K maximum video resolution with 16-bit color depth and supports color profiles including Log3G10 and REDWideGamutRGB, providing a robust foundation for professional color grading workflows. Recording formats include REDCODE RAW and ProRes, stored on RED MINI-MAG media.

The camera's native ISO range runs from 250 to 12800, and frame rate options extend from 23.976fps up to 96fps, covering standard cinema, broadcast, and high-frame-rate slow-motion applications. The aluminum alloy body measures 104 x 126 x 146 mm and weighs 1.52 kg. Monitoring is supported by a 4.7-inch 1920x1080 LCD display and an electronic viewfinder at 1920x1080 / 60Hz.

Connectivity includes Wi-Fi, USB-C, 3.5mm mic input, and 3.5mm headphone output. The camera accepts Canon EF and PL Mount lenses and draws power from a V-Mount battery system. No image stabilization or autofocus system is included.

Pros — RED Digital Cinema Dragon-X 5K

  • ✓5K Super 35 sensor with Helium image processor provides high-resolution cinema-grade capture
  • ✓16-bit color depth with Log3G10 and REDWideGamutRGB color profiles enables extensive post-production grading latitude
  • ✓Wide frame rate support up to 96fps opens options for high-frame-rate and slow-motion production

Cons — RED Digital Cinema Dragon-X 5K

  • ✗Manual focus only — no autofocus system of any kind is available
  • ✗No image stabilization (optical, in-body, or digital), requiring external support for smooth handheld shooting
  • ✗Storage is limited exclusively to proprietary RED MINI-MAG media, adding cost and workflow dependency

Reviews — RED Digital Cinema Dragon-X 5K

Videos — RED Digital Cinema Dragon-X 5K

RED Dragon-X DSMC2 Cinema Camera Review — LumaForge

Resources & Downloads — RED Digital Cinema Dragon-X 5K

Manuals & Guides

Frequently Asked Questions — RED Digital Cinema Dragon-X 5K

What recording formats does the RED DSMC2 Dragon-X 5K support?+
The camera records in REDCODE RAW and ProRes. Both formats are available natively, giving editors and colorists the choice between maximum data fidelity with REDCODE RAW or more universally compatible ProRes files.
What lenses can I use with this camera?+
The RED DSMC2 Dragon-X 5K supports both Canon EF and PL Mount lenses, as listed in the specifications. This gives filmmakers access to a wide range of cinema and photographic glass depending on their preferred ecosystem.
What is the maximum frame rate available at 5K?+
The camera supports a maximum frame rate of 96fps. Additional supported frame rates include 23.976, 24, 25, 29.97, 30, 48, 50, 59.94, and 60fps, providing flexibility for various production and broadcast standards.
What color profiles are available for recording?+
The camera offers Log3G10 and REDWideGamutRGB color profiles. These are designed to retain wide dynamic range and color gamut information for professional color grading in post-production.
Does the camera have any autofocus capability?+
No — the RED DSMC2 Dragon-X 5K is manual focus only. There is no autofocus system, eye tracking, or subject tracking available, which is typical for cinema cameras intended for controlled production environments.
What storage media does the Dragon-X 5K use?+
The camera records exclusively to RED MINI-MAG media. This is a proprietary storage format specific to RED cameras, so users will need to budget for RED MINI-MAG cards and a compatible reader for data offload.
