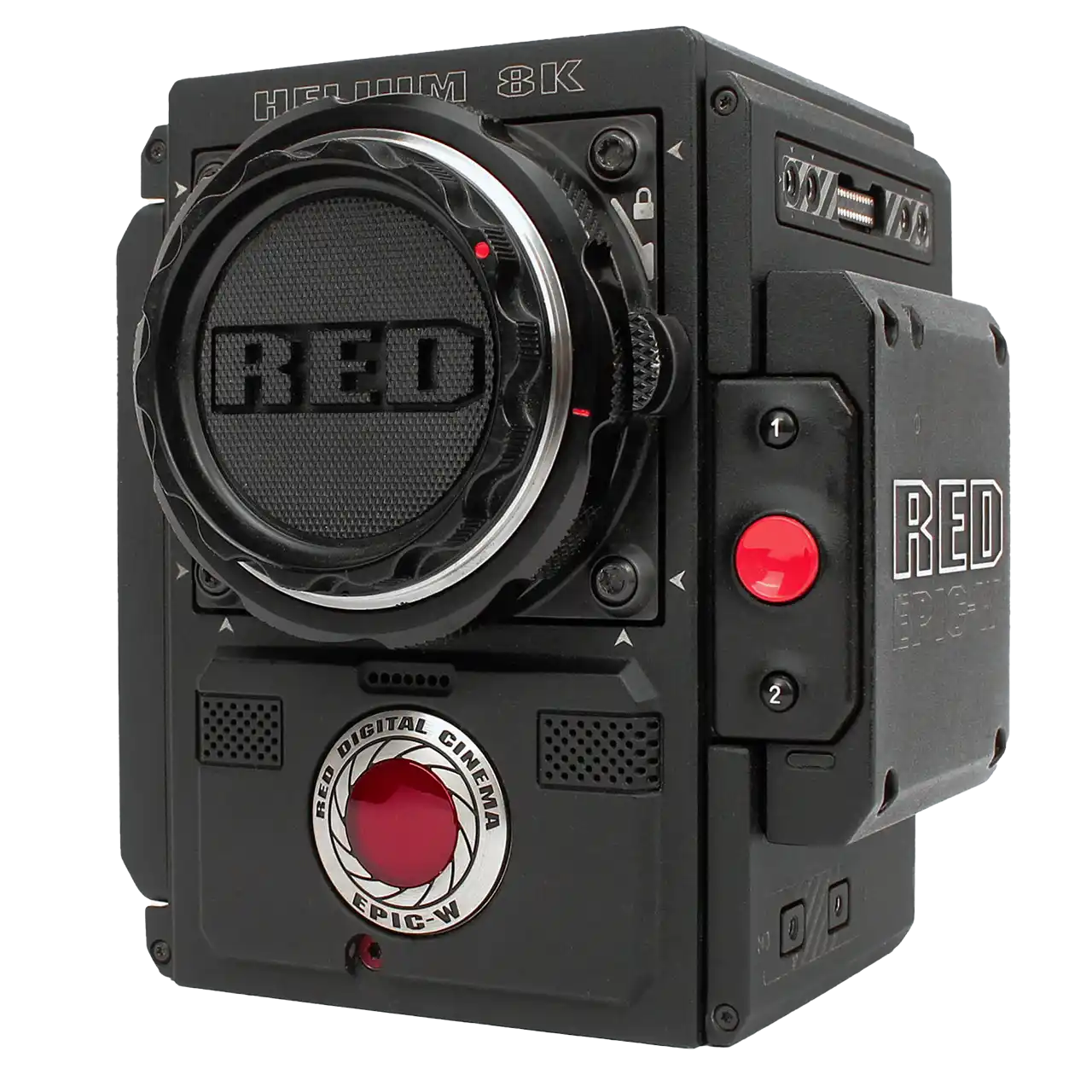

RED EPIC-W HELIUM 8K S35 Cinema Camera

The RED EPIC-W is a 35.4 megapixels (8192 x 4320 effective) Super 35 cinema camera — with 8192 x 4320 video. Used copies start from $25,000 on GearFocus, with buyer protection on every purchase.

RED EPIC-W HELIUM 8K S35 Cinema Camera

RED EPIC-W HELIUM 8K S35 Cinema Camera

RED EPIC-W — image 1
RED EPIC-W — image 2
RED EPIC-W — image 3
RED EPIC-W — image 4
RED EPIC-W — image 5
RED EPIC-W — image 6

RED EPIC-W HELIUM 8K LIVE Streaming Camera System

Condition: Excellent

Product Highlights

  • 8K Resolution
  • 16.5+ Stops Dynamic Range
  • Super 35 Sensor
  • REDCODE RAW Codec

Sell your RED EPIC-W on GearFocus

$25,000.00

Shipping at Checkout

Monthly payments available.

Shop with confidence. GearFocus Buyer Protection is included with every purchase.

Used RED EPIC-W Listings on GearFocus

RED EPIC-W HELIUM 8K LIVE Streaming Camera System
RED EPIC-W HELIUM 8K LIVE Streaming Camera System

Excellent

$20,000.00$-5000 price drop

$25,000.00

Camera Overview — RED EPIC-W

The RED EPIC-W HELIUM 8K S35 is a professional digital cinema camera built around a Super 35 sensor capable of capturing images at a maximum resolution of 8192 x 4320, delivering 35.4 megapixels of effective resolution. Driven by the RED Image Processing Pipeline (IPP2), the camera supports ISO sensitivity from 250 to 12800, giving cinematographers meaningful latitude across a range of lighting conditions. Video recording tops out at 8K FF 17:9 up to 60 fps, with 8K 2.4:1 up to 75 fps, 4K up to 120 fps, and 2K up to 240 fps — making it a genuinely versatile tool for both standard and high-speed capture.

Footage can be recorded as REDCODE RAW at 16-bit depth, or in Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Avid DNxHR HQX, and Avid DNxHD formats, covering most professional post-production pipelines. Storage is handled exclusively via RED MINI-MAG media. The camera body, which is machined from magnesium and aluminum alloy, weighs just 3.35 lb (BRAIN only) and measures 4.35 x 4.25 x 5.35 inches.

The PL mount supports a wide ecosystem of cinema lenses. Display and viewfinder options are modular, with an optional touchscreen LCD up to 7 inches and an optional DSMC2 EVF. Connectivity includes Wi-Fi and USB, with audio I/O available via an expander module.

Key Features — RED EPIC-W

35.4MP Super 35 Sensor: The HELIUM sensor captures 8192 x 4320 effective pixels, delivering exceptional detail for large-format digital cinema workflows.

8K Recording up to 60fps: Records at full 8K FF 17:9 up to 60fps, with 8K 2.4:1 up to 75fps, giving cinematographers flexibility for standard and widescreen formats.

High-Speed Frame Rates: Supports up to 120fps at 4K and up to 240fps at 2K, enabling slow-motion capture with resolution-specific frame rate options.

REDCODE RAW Recording: Records REDCODE RAW with high bit depth, preserving maximum dynamic range and color latitude for color grading in post-production.

Multi-Format Recording: Supports Apple ProRes 422 HQ, ProRes 422, Avid DNxHR HQX, and DNxHD alongside REDCODE RAW, covering virtually every professional post-production pipeline.

RED IPP2 Processing: The RED Image Processing Pipeline 2 delivers improved color science and a more streamlined grading workflow compared to earlier RED processing.

Camera Specifications — RED EPIC-W

RED EPIC-W full specifications
SpecDetail
TypeOther
SensorSuper 35
Resolution35.4 megapixels (8192 x 4320 effective)
ProcessorRED Image Processing Pipeline (IPP2)
ISO Range250 – 12800
AF SystemManual Focus Only
Max Photo Resolution8192 x 4320 (35.4 MP)
Burst Rate30 fps
Max Video Resolution8192 x 4320
Max Frame RateOther
Bit Depth16-bit (REDCODE RAW), 12-bit (Avid DNxHR HQX)
Video Color ProfilesREDCODE RAW, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Avid DNxHR HQX, Avid DNxHD

Description — RED EPIC-W

The RED EPIC-W HELIUM 8K S35 cinema camera centers on a Super 35 sensor delivering 35.4 megapixels of effective resolution at 8192 x 4320. The camera's imaging is handled by the RED Image Processing Pipeline (IPP2), with a native ISO range of 250 to 12800. For video, the camera supports 8K FF 17:9 at up to 60 fps, 8K 2.4:1 at up to 75 fps, 4K at up to 120 fps, and 2K at up to 240 fps, with recording options spanning REDCODE RAW (16-bit), Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Avid DNxHR HQX (12-bit), and Avid DNxHD.

Color science options include REDWideGamutRGB, DRAGONcolor2, DRAGONcolor, REDcolor4, REDcolor3, REDcolor2, and REDcolor. The BRAIN body is constructed from magnesium and aluminum alloy, weighs 3.35 lb, and measures 4.35 x 4.25 x 5.35 inches. It uses a PL mount and stores footage on RED MINI-MAG media.

The modular platform accommodates optional displays, viewfinders, and battery systems, and Wi-Fi connectivity is built in.

Pros — RED EPIC-W

  • ✓Maximum video resolution of 8192 x 4320 with a 35.4 MP Super 35 sensor for cinematic detail
  • ✓Broad frame rate options: up to 60 fps at 8K, up to 120 fps at 4K, and up to 240 fps at 2K
  • ✓16-bit REDCODE RAW capture alongside ProRes and DNx formats covers virtually every post pipeline

Cons — RED EPIC-W

  • ✗No weather sealing, making the camera vulnerable in rain or dusty environments without additional protection
  • ✗No in-body or digital image stabilization of any kind
  • ✗Audio jacks and some connectivity options require an additional expander module rather than being built in

Reviews — RED EPIC-W

Videos — RED EPIC-W

Red Epic-W Gear — NextWaveDV

Resources & Downloads — RED EPIC-W

Manuals & Guides

Frequently Asked Questions — RED EPIC-W

What is the maximum video resolution and frame rate this camera can achieve?+
The camera records up to 8192 x 4320 (8K FF 17:9) at up to 60 fps. In 8K 2.4:1 format it can reach 75 fps, while 4K tops out at 120 fps and 2K can reach 240 fps.
What recording formats does the RED EPIC-W HELIUM 8K S35 support?+
The camera supports REDCODE RAW at 16-bit depth, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Avid DNxHR HQX (12-bit), and Avid DNxHD. This covers most professional post-production workflows.
What lens mount does this camera use?+
The RED EPIC-W HELIUM 8K S35 uses a PL mount, which is the standard mount for professional cinema lenses.
What storage media does the camera require?+
The camera records exclusively to RED MINI-MAG media. No other storage formats are supported natively.
Does the camera have a built-in display or viewfinder?+
Both the display and viewfinder are optional modular accessories. The DSMC2 RED Touch LCD is available in 4.7-inch (1280 x 720) or 7-inch configurations, and an optional DSMC2 EVF provides a 1280 x 1024 electronic viewfinder with a 60Hz refresh rate.
Does the camera have built-in audio inputs?+
The camera does not have built-in 3.5mm microphone or headphone jacks. A 3.5mm microphone jack and headphone jack are available through an optional expander module.
