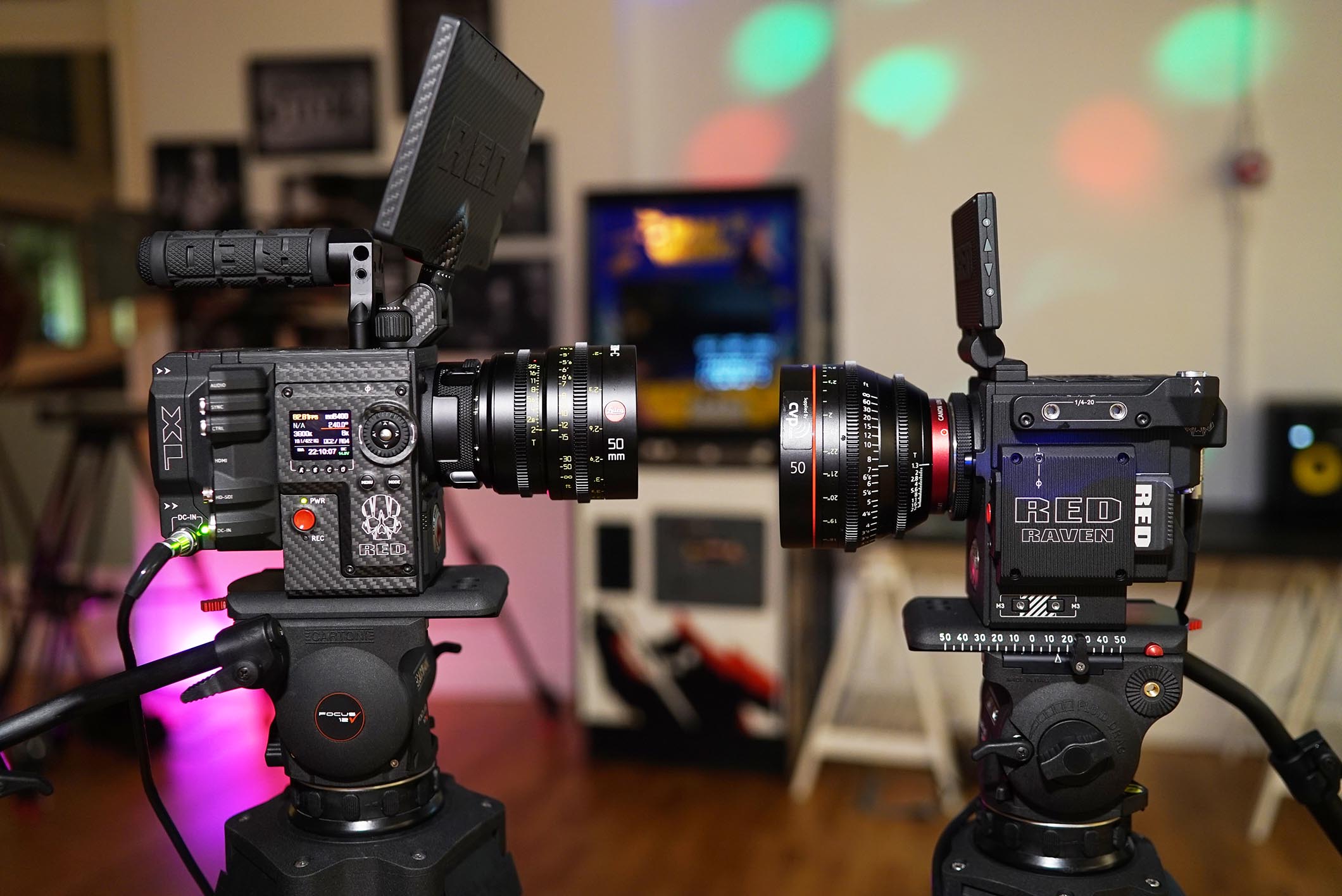

RED RAVEN 4.5K Cinema Camera

The RED RAVEN is a 9.9 MP Super 35 cinema camera — with Other video. Check GearFocus for current availability, with buyer protection on every purchase.

RED RAVEN 4.5K Cinema Camera

RED RAVEN 4.5K Cinema Camera

Get notified when one lists.

We'll text or email you the moment a RED RAVEN is listed on GearFocus.

Have a RED RAVEN sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your RED RAVEN on GearFocus

Camera Overview — RED RAVEN

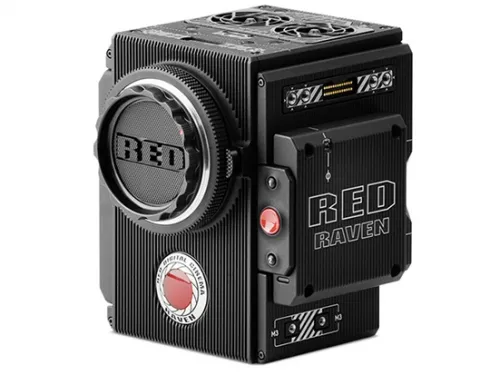

The RED RAVEN 4.5K Cinema Camera is a compact digital cinema body built around a Super 35 RED DRAGON sensor rated at 9.9 MP, delivering a maximum video resolution of 4.5K at up to 240fps. Recording is handled via RED MINI-MAG media, and the camera supports three color pipeline options: REDCODE RAW, Apple ProRes, and Avid DNxHD — giving editors flexibility across post-production workflows. Video is captured at 16-bit color depth, which underpins the RAW recording pipeline and provides substantial latitude for color grading.

The ISO range runs from 320 to 12800, offering meaningful sensitivity across controlled and available-light environments. The camera body is machined from aluminum alloy and weighs just 3.5 lb (camera brain only), with dimensions of 110.5 x 108 x 136 mm — a genuinely compact footprint for a cinema-grade system. The lens mount is Canon EF, a widely adopted mount with a broad range of compatible optics.

Focus is entirely manual, with no autofocus system present. Display and viewfinder options are external and optional — including LCD panels at 5.0, 7.0, or 9.0 inches with 1920 x 1136 resolution, and an optional OLED EVF at 1280 x 1024. Audio and HDMI connectivity require an expander module.

WiFi is built in; Bluetooth is not. There is no image stabilization of any kind onboard.

Key Features — RED RAVEN

Super 35 RED DRAGON Sensor: The 9.9MP Super 35 sensor delivers up to 4.5K (4608 x 2160) maximum resolution, providing cinema-grade image quality in a compact body.

16-Bit RAW Recording: REDCODE RAW capture at 16-bit color depth provides extensive latitude for color grading and exposure correction in post-production.

Three Recording Formats: Supports REDCODE RAW, Apple ProRes, and Avid DNxHD, covering a wide range of editorial and delivery workflows without transcoding.

High-Speed Frame Rates: High frame rate options are available at lower resolutions; standard cinema frame rates of 24, 25, and 30fps are supported at full resolution.

RED MINI-MAG Storage: Records exclusively to RED MINI-MAG solid-state media, designed for the high data rates required by REDCODE RAW at cinema resolutions.

Canon EF Lens Mount: Native Canon EF mount provides access to a broad ecosystem of compatible cinema and still lenses from multiple manufacturers.

Camera Specifications — RED RAVEN

RED RAVEN full specifications
SpecDetail
Use CasesDocumentary, Video / Cinematography
TypeOther
SensorSuper 35
Resolution9.9 MP
ProcessorRED DRAGON
ISO Range320 – 12800
AF SystemManual Focus Only
AF PointsN/A (manual focus only)
Max Photo Resolution4608 x 2160
Burst Rate0 fps
Max Video ResolutionOther
Max Frame Rate120fps

Description — RED RAVEN

The RED RAVEN 4.5K Cinema Camera is built around a Super 35 RED DRAGON sensor delivering 9.9 MP of resolution and a maximum video capture resolution of 4.5K. The recording pipeline supports REDCODE RAW, Apple ProRes, and Avid DNxHD, all at 16-bit color depth, giving colorists considerable latitude in post. Supported frame rates span 24fps through 240fps, with standard options at 25, 30, 48, 50, 60, and 120fps also available.

The native ISO range runs from 320 to 12800. The camera brain itself is machined from aluminum alloy, measures 110.5 x 108 x 136 mm, and weighs 3.5 lb without accessories. The Canon EF mount provides a widely supported lens interface.

All monitoring — including optional 5.0, 7.0, or 9.0 inch LCD panels and the optional BOMB EVF at 1280 x 1024 resolution — is external. Audio connections (3.5mm mic and headphone), 1080p HDMI output, and expanded I/O require an expander module. WiFi is onboard; Bluetooth is not. Media recording uses RED MINI-MAG exclusively, and focus is manual only.

Pros — RED RAVEN

  • ✓Super 35 RED DRAGON sensor at 9.9 MP enables 4.5K maximum video resolution
  • ✓16-bit color depth in video capture provides substantial grading headroom
  • ✓Three recording format options — REDCODE RAW, Apple ProRes, and Avid DNxHD — suit diverse post workflows

Cons — RED RAVEN

  • ✗Manual focus only — no autofocus system of any kind is present
  • ✗No weather sealing, which limits shooting in adverse conditions
  • ✗Display, viewfinder, audio I/O, and HDMI output all require optional expander modules or accessories, adding cost and complexity

Reviews — RED RAVEN

Videos — RED RAVEN

RED Raven Impressions: 4.5K! — Marques Brownlee

Resources & Downloads — RED RAVEN

Manuals & Guides

Frequently Asked Questions — RED RAVEN

What recording formats does the RED RAVEN support?+
The RED RAVEN records in REDCODE RAW, Apple ProRes, and Avid DNxHD. These options apply to both video and still image capture pipelines as listed in the specifications.
What is the maximum frame rate this camera can shoot?+
The camera supports frame rates of 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, 120fps, and 240fps, with 240fps listed as the maximum.
Does the RED RAVEN have a built-in monitor or viewfinder?+
No. Both the monitor and viewfinder are optional external accessories. LCD options are available in 5.0, 7.0, or 9.0 inch sizes with 1920 x 1136 resolution, and an optional OLED EVF offers 1280 x 1024 resolution.
What lens mount does the RED RAVEN use?+
The RED RAVEN uses a Canon EF lens mount. No other mount options are listed in the specifications.
Does the camera have built-in wireless connectivity?+
WiFi is built in. Bluetooth is not present according to the specifications.
What storage media does the RED RAVEN use?+
The RED RAVEN records exclusively to RED MINI-MAG media. No other storage card formats are listed in the specifications.
