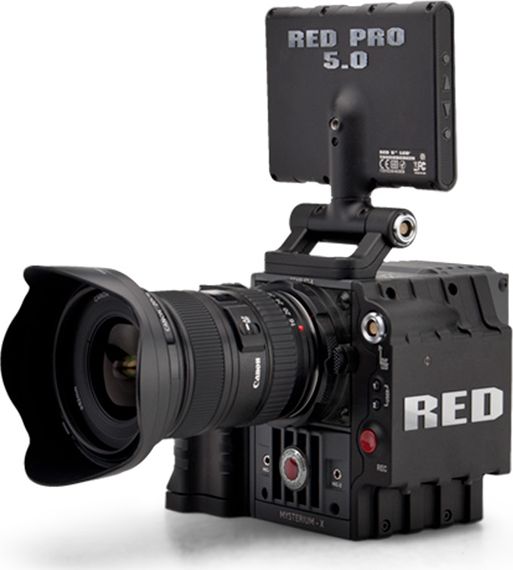

RED Scarlet MX Cinema Camera

The RED MX is a 14MP Super 35 cinema camera — with 4K video. Check GearFocus for current availability, with buyer protection on every purchase.

RED Scarlet MX Cinema Camera

RED Scarlet MX Cinema Camera

Get notified when one lists.

We'll text or email you the moment a RED MX is listed on GearFocus.

Have a RED MX sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your RED MX on GearFocus

Camera Overview — RED MX

The RED Scarlet MX is a professional digital cinema camera built around a Super 35 sensor powered by the RED Mysterium-X image processor. With a native resolution of 14MP, the camera delivers up to 5K maximum video resolution across a range of frame rates including 24fps, 30fps, 48fps, and 60fps — giving cinematographers flexibility across narrative, documentary, and high-frame-rate production work. The camera records in REDCODE RAW and ProRes formats, capturing footage at 16-bit color depth, and supports the REDLOGFilm and HDRx color profiles for a wide grading latitude in post-production.

ISO sensitivity runs from 200 to 3200, offering a working range suited to controlled lighting environments. The Scarlet MX uses a PL Mount, making it directly compatible with a broad ecosystem of professional cinema lenses. Storage is handled exclusively via RED MINI-MAG media.

The camera body is machined from aluminum alloy, measures 140 x 125 x 120 mm, and weighs 2.2 kg. Power comes from a V-Mount battery system. A 4.7-inch LCD display with 1280x720 resolution is built in, while viewfinder options are available as optional accessories.

Connectivity includes Mini HDMI, 3.5mm mic input, 3.5mm headphone output, and USB 2.0.

Key Features — RED MX

14MP Mysterium-X Sensor: RED's Super 35 Mysterium-X sensor delivers cinema-grade image quality with a native 14MP resolution suited to professional production.

4K Maximum Resolution: Records up to 4K, providing ample resolution for professional deliverables with headroom for cropping and reframing.

REDCODE RAW Recording: Captures footage in REDCODE RAW, giving colorists extensive latitude during post-production grading.

REDLOGFilm & HDRx Profiles: REDLOGFilm preserves wide dynamic range for grading, while HDRx captures a second exposure track for highlight recovery in high-contrast scenes.

PL Mount: Industry-standard PL mount provides direct compatibility with a broad range of professional cinema lenses from manufacturers such as ARRI, Zeiss, and Cooke.

High Frame Rate Options: Supports 24, 30, 48, and 60fps for flexibility across narrative, documentary, and high-frame-rate production formats.

Camera Specifications — RED MX

RED MX full specifications
SpecDetail
Use CasesVideo / Cinematography, Documentary, Studio
TypeOther
SensorSuper 35
Resolution14MP
ProcessorRED Mysterium-X
ISO Range200 – 3200
AF SystemManual Focus Only
Max Video Resolution4K
Max Frame Rate60fps
Bit Depth16-bit
Video Color ProfilesREDLOGFilm, HDRx
Image StabilizationNone

Description — RED MX

The RED Scarlet MX Cinema Camera is a Super 35 format camera driven by the RED Mysterium-X image processor and a 14MP sensor. It captures video at up to 5K maximum resolution with support for 24fps, 30fps, 48fps, and 60fps frame rates, making it adaptable across a variety of production demands. Recording is available in REDCODE RAW and ProRes at 16-bit color depth, with REDLOGFilm and HDRx color profiles built in for wide post-production latitude.

The ISO range spans 200 to 3200, and the camera uses a PL Mount for professional cinema lens compatibility. Storage runs exclusively through RED MINI-MAG media. Connectivity options include Mini HDMI, 3.5mm mic input, 3.5mm headphone output, and USB 2.0.

The body is constructed from aluminum alloy, measures 140 x 125 x 120 mm, and weighs 2.2 kg. A 4.7-inch LCD screen at 1280x720 resolution is built in, while a viewfinder is available as an optional accessory. Power is supplied via a V-Mount battery system.

Pros — RED MX

  • ✓5K maximum video resolution with frame rates up to 60fps across 24, 30, 48, and 60fps options
  • ✓16-bit color depth with REDLOGFilm and HDRx color profiles for extensive post-production grading flexibility
  • ✓Records in both REDCODE RAW and ProRes formats, providing versatile delivery options

Cons — RED MX

  • ✗Manual focus only — no autofocus system of any kind is available
  • ✗No image stabilization of any type (no in-body IS, no digital IS)
  • ✗ISO range tops out at 3200, limiting low-light versatility in uncontrolled environments

Reviews — RED MX

Videos — RED MX

RED Cinema Camera Under $2,000! — DSLR Video Shooter

Resources & Downloads — RED MX

Manuals & Guides

Frequently Asked Questions — RED MX

What recording formats does the RED Scarlet MX support?+
The Scarlet MX records in REDCODE RAW and ProRes. Footage is captured at 16-bit color depth, and the camera supports REDLOGFilm and HDRx color profiles for post-production flexibility.
What lens mount does the RED Scarlet MX use?+
The camera uses a PL Mount, which is the industry-standard mount for professional cinema lenses. No other mounts are listed in the specifications.
What storage media does the RED Scarlet MX require?+
The Scarlet MX exclusively uses RED MINI-MAG storage media. No other card formats are supported according to the specifications.
Does the RED Scarlet MX have autofocus?+
No. The camera is Manual Focus Only with no autofocus system, no eye tracking, and no subject tracking available.
What display does the RED Scarlet MX have built in?+
The camera features a built-in 4.7-inch LCD display with a resolution of 1280x720. A viewfinder is not included and is listed as an optional accessory.
What power system does the RED Scarlet MX use?+
The Scarlet MX is powered by a V-Mount battery system, which is a standard used across many professional cinema and broadcast cameras. Battery life is listed at 2 hours.
