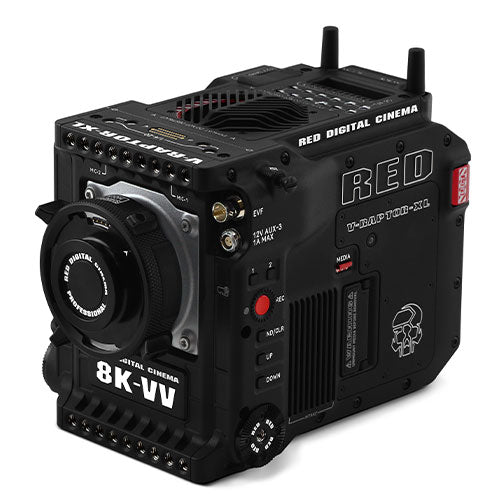

RED V-RAPTOR 8K VV Cinema Camera
The RED V-RAPTOR 8K VV is a 35.4 MP full-frame cinema camera — with 8K video. Check GearFocus for current availability, with buyer protection on every purchase.
RED V-RAPTOR 8K VV Cinema Camera
Get notified when one lists.
We'll text or email you the moment a RED V-RAPTOR 8K VV is listed on GearFocus.
Have a RED V-RAPTOR 8K VV sitting in your bag?
You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.
Camera Overview — RED V-RAPTOR 8K VV
Key Features — RED V-RAPTOR 8K VV
35.4MP Full-Frame Sensor: The VV-format sensor captures up to 8192 x 4320 pixels, providing exceptional detail and flexibility for large-format cinema production.
REDCODE RAW & ProRes Recording: Records in REDCODE RAW or multiple ProRes flavors (up to 422 HQ) in 16-bit depth, giving colorists maximum latitude in post-production.
Up to 120fps at Lower Resolutions: Supports 24, 25, 30, 48, 50, and 60fps at 8K, with high frame rate options including 120fps available at lower resolutions.
RED DSMC3 Platform: Third-generation DSMC processing enables the high data throughput required for 8K RAW recording and advanced on-camera processing.
RED IPP2 Color Science: Built-in IPP2 color pipeline and Custom LUT support streamline on-set monitoring and simplify DI workflows in post.
Dual 12G-SDI Outputs: Professional SDI connectivity supports on-set signal routing to monitors, recorders, and DIT stations without requiring HDMI adapters.
Camera Specifications — RED V-RAPTOR 8K VV
| Spec | Detail |
|---|---|
| Use Cases | Documentary, Video / Cinematography |
| Type | Other |
| Sensor | Full Frame (35mm) |
| Resolution | 35.4 MP |
| Processor | RED DSMC3 Platform |
| ISO Range | 250 – 12800 |
| AF System | Phase Detection, Face Detection AF |
| AF Points | On-sensor PDAF |
| Max Photo Resolution | 8192 x 4320 px |
| Max Video Resolution | 8K |
| Max Frame Rate | 120fps |
| Bit Depth | 16-bit |
Description — RED V-RAPTOR 8K VV
The RED V-RAPTOR 8K VV cinema camera is built around a full-frame 35mm sensor resolving 35.4 MP at up to 8192 x 4320 pixels, driven by the RED DSMC3 Platform image processor. It records video at 16-bit depth across a range of professional codecs — REDCODE RAW, ProRes 422 HQ, ProRes 422, ProRes 422 LT, and RED IPP2 — with frame rate options of 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, and 120fps. The native ISO range spans 250 to 12800, with color science built around RED IPP2 and support for Custom LUTs.
Connectivity centers on Dual 12G-SDI outputs, a USB-C port, and 3.5mm headphone and microphone jacks. Media is stored on CFexpress Type B cards. The aluminum alloy body weighs 1.8 kg, measures 152.4 x 108 x 108 mm, and carries a dust-resistant rating.
Autofocus is handled by on-sensor PDAF and Face Detection AF with subject tracking. The camera uses a PL Mount and is powered by a Micro V-Mount battery.
Pros — RED V-RAPTOR 8K VV
- ✓Full-frame 35mm sensor at 35.4 MP resolution with a maximum capture size of 8192 x 4320 pixels
- ✓16-bit video bit depth with multiple codec options including REDCODE RAW, ProRes 422 HQ, ProRes 422, and ProRes 422 LT
- ✓Broad frame rate support up to 120fps covering standard, high-frame-rate, and slow-motion production needs
Cons — RED V-RAPTOR 8K VV
- ✗No built-in viewfinder — an external monitor or EVF is required for on-camera monitoring
- ✗No HDMI output; connectivity relies entirely on Dual 12G-SDI, which may require adapters in some workflows
- ✗No in-body or digital image stabilization of any kind
Reviews — RED V-RAPTOR 8K VV
Videos — RED V-RAPTOR 8K VV
RED V-RAPTOR 8K VV | In-Depth Review & Test Footage — CVP
Frequently Asked Questions — RED V-RAPTOR 8K VV
What video codecs does the RED V-RAPTOR 8K VV support?+
The camera supports REDCODE RAW, ProRes 422 HQ, ProRes 422, ProRes 422 LT, and RED IPP2. These are recorded at 16-bit depth, giving colorists significant flexibility in post-production.
What lens mount does the V-RAPTOR use?+
The RED V-RAPTOR 8K VV uses a PL Mount, which is the industry-standard mount for cinema lenses. No other mount options are listed in the specifications.
Does the camera have autofocus?+
Yes, it features on-sensor Phase Detection AF and Face Detection AF with subject tracking enabled. Eye tracking is not supported according to the specifications.
What storage media does the V-RAPTOR use?+
The camera records to CFexpress Type B cards. This is the only listed storage media format in the specifications.
Is the RED V-RAPTOR 8K VV weather sealed?+
The body carries a dust-resistant rating according to the specifications. It is not listed as fully weather sealed, so caution is advised in wet or harsh environments.
What output options are available for external monitors?+
The camera provides Dual 12G-SDI outputs. There is no HDMI output listed in the specifications, so external monitors will need to be SDI-compatible or used with an appropriate adapter.
