RED WEAPON WEAPON BRAIN Cinema Camera

The RED Digital Cinema WEAPON BRAIN is a 35.4MP Super 35 cinema camera — with 8K video. Check GearFocus for current availability, with buyer protection on every purchase.

RED WEAPON WEAPON BRAIN Cinema Camera

RED WEAPON WEAPON BRAIN Cinema Camera

Get notified when one lists.

We'll text or email you the moment a RED WEAPON WEAPON BRAIN Cinema Camera is listed on GearFocus.

Have a RED Digital Cinema WEAPON BRAIN sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your RED Digital Cinema WEAPON BRAIN on GearFocus

Camera Overview — RED Digital Cinema WEAPON BRAIN

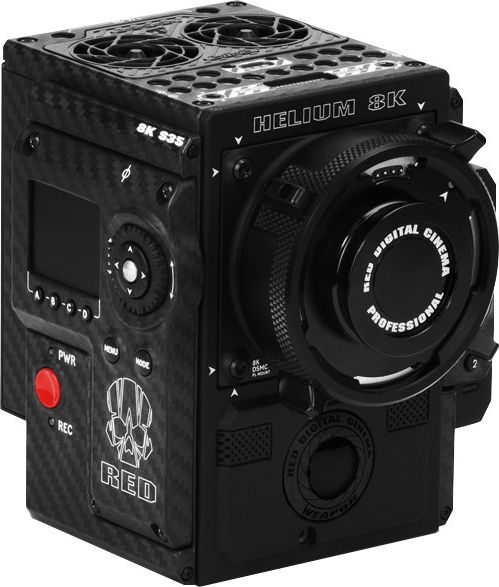

The RED WEAPON BRAIN is a modular DSMC2 cinema camera body built around a Super 35 sensor delivering 35.4MP resolution and up to 8K maximum video output. Designed for professional production environments, it records in REDCODE RAW, ProRes, DNxHR, and DNxHD color profiles at bit depths up to 16-bit, providing substantial latitude for color grading and post-production workflows. The camera supports an extensive range of frame rates — from 24fps up to a maximum of 300fps — enabling everything from standard cinematic capture to high-speed slow-motion sequences.

Storage is handled exclusively via RED MINI-MAG media, and the PL Mount lens system connects the body to a wide range of cinema glass. The body itself is constructed from carbon fiber, weighing 1,540g with dimensions of 143.85 x 125.5 x 95.0mm, and carries a weather-sealed rating for use in challenging on-set conditions. ISO sensitivity runs from 100 to 3200.

Connectivity includes HDMI output, a microphone jack, and Wi-Fi, while display and viewfinder functions rely on an external DSMC2 monitor. Power is supplied via modular V-mount or Gold mount battery options through the DSMC2 module system. The image processor is RED's proprietary ASIC.

With manual focus only, this is a camera built for deliberate, controlled cinematographic work.

Key Features — RED Digital Cinema WEAPON BRAIN

Super 35 Sensor: The Super 35 sensor supports up to 8K resolution acquisition, compatible with a wide range of cinema lenses via the PL mount.

REDCODE RAW Recording: Records in RED's proprietary RAW format at up to 16-bit color depth, providing extensive dynamic range and latitude for color grading in post.

Multiple Codec Support: In addition to REDCODE RAW, the camera records ProRes, DNxHR, and DNxHD for workflows that require immediately editable, broadcast-ready files.

High Frame Rate Options: Supports high frame rates including up to 300fps at reduced resolutions, enabling slow-motion capture alongside standard cinematic frame rates.

PL Mount Lens System: Industry-standard PL mount provides compatibility with a broad ecosystem of cinema lenses from manufacturers including ZEISS, Cooke, and Canon.

Modular DSMC2 Architecture: The Brain-based design allows power, I/O, display, and battery options to be configured via interchangeable DSMC2 modules for production-specific setups.

Camera Specifications — RED Digital Cinema WEAPON BRAIN

RED Digital Cinema WEAPON BRAIN full specifications
SpecDetail
Use CasesDocumentary, Video / Cinematography
TypeOther
SensorSuper 35
Resolution35.4MP
ProcessorRED ASIC
ISO Range100 – 3200
AF SystemManual Focus Only
AF PointsManual Focus Only
Max Photo Resolution35.4MP
Burst RateSingle Frame fps
Max Video Resolution8K
Max Frame RateOther

Description — RED Digital Cinema WEAPON BRAIN

The RED WEAPON BRAIN is a professional cinema camera body featuring a Super 35 sensor with 35.4MP resolution, processed through RED's proprietary RED ASIC image processor. It records video at up to 8K maximum resolution across a comprehensive set of frame rates — 24fps through 300fps — and captures in 16-bit color depth. Supported color profiles include REDCODE RAW, ProRes, DNxHR, and DNxHD for video, with REDWideGamutRGB and Rec. 2020 available as color science options.

The body is machined from carbon fiber, measures 143.85 x 125.5 x 95.0mm, weighs 1,540g, and carries a weather-sealed rating. Lens compatibility is built around a PL Mount. On-set monitoring requires an external DSMC2 monitor, and power is supplied via modular V-mount or Gold mount battery systems through the DSMC2 module architecture.

The camera's ISO range spans 100 to 3200, and focus is manual only. Connectivity on the body includes Wi-Fi, HDMI output, and a microphone jack, with storage handled via RED MINI-MAG media.

Pros — RED Digital Cinema WEAPON BRAIN

  • ✓Up to 8K maximum video resolution with 35.4MP sensor
  • ✓16-bit color depth recording enables extensive post-production latitude
  • ✓Wide frame rate support up to 300fps for high-speed slow-motion capture

Cons — RED Digital Cinema WEAPON BRAIN

  • ✗Manual focus only — no autofocus system of any kind
  • ✗No integrated display or viewfinder; external DSMC2 monitor required
  • ✗Storage limited exclusively to RED MINI-MAG media

Videos — RED Digital Cinema WEAPON BRAIN

Dope Tech: 8K RED Epic-W Unboxing! — Marques Brownlee

Resources & Downloads — RED Digital Cinema WEAPON BRAIN

Manuals & Guides

Frequently Asked Questions — RED Digital Cinema WEAPON BRAIN

What video formats and codecs does the RED WEAPON BRAIN support?+
The camera records in REDCODE RAW, ProRes, DNxHR, and DNxHD. Video is captured at up to 16-bit bit depth, providing substantial dynamic range and grading flexibility in post-production.
What is the maximum frame rate available?+
The RED WEAPON BRAIN supports a maximum frame rate of 300fps. It also supports 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, 120fps, and 240fps, covering a broad range of production and slow-motion requirements.
Does the camera have a built-in monitor or viewfinder?+
No. Both display and viewfinder functions require an external DSMC2 monitor. The resolution and refresh rate of the monitoring system will depend entirely on the external monitor used.
What lens mount does the RED WEAPON BRAIN use?+
The camera uses a PL Mount, which is standard for professional cinema lenses. The sensor is a Super 35 type with a 1.5x crop factor as listed in the specifications.
What storage media does the camera record to?+
The RED WEAPON BRAIN records exclusively to RED MINI-MAG storage media. No other storage formats are supported directly by the body.
What connectivity options are available on the camera body?+
The body includes Wi-Fi, HDMI output, and a microphone jack. It does not have a headphone jack, USB, or USB-C. Bluetooth is also absent from the body's connectivity.
