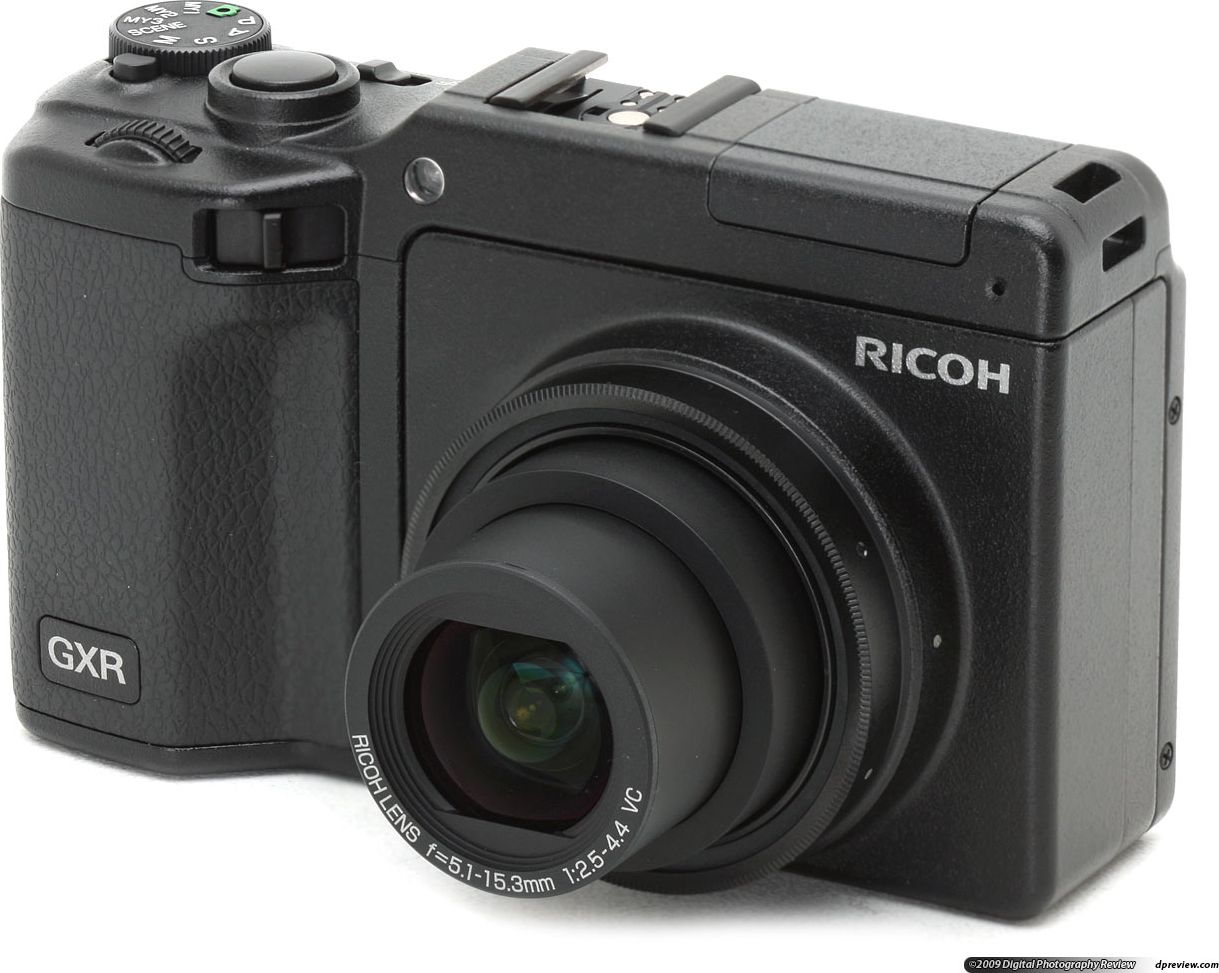

Ricoh GXR S10 24-72mm F2.5-4.4 VC Camera Module

The Ricoh S10 24-72mm F2.5-4.4 VC is a 10MP 1/1.7 inch mirrorless camera — with VGA video. Check GearFocus for current availability, with buyer protection on every purchase.

Ricoh GXR S10 24-72mm F2.5-4.4 VC Camera Module

Ricoh GXR S10 24-72mm F2.5-4.4 VC Camera Module

Get notified when one lists.

We'll text or email you the moment a Ricoh GXR S10 24-72mm F2.5-4.4 VC Camera Module is listed on GearFocus.

Have a Ricoh S10 24-72mm F2.5-4.4 VC sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Ricoh S10 24-72mm F2.5-4.4 VC on GearFocus

Available Now on GearFocus

Ricoh GXR kit with M-mount module, body, VF-2 Viewfinder, Ricoh VC P10 Zoom
RicohExcellent

Ricoh GXR kit with M-mount module, body, VF-2 Viewfinder, Ricoh VC P10 Zoom

$1,159.00
Ricoh GR IV Monochrome
RicohLike New

Ricoh GR IV Monochrome

$2,000.00

Camera Overview — Ricoh S10 24-72mm F2.5-4.4 VC

The Ricoh GXR S10 24-72mm F2.5-4.4 VC Camera Module is a self-contained lens-sensor unit designed exclusively for the Ricoh GXR modular camera system. At its core is a 10MP sensor housed in a 1/1.7-inch format, delivering a maximum still resolution of 3648x2736 pixels. The integrated lens covers a 24-72mm zoom range with a maximum aperture of f/2.5-4.4, and the module includes optical image stabilization (OIS) to help manage camera shake across the zoom range.

The autofocus system relies on contrast detection, and there is no eye tracking or subject tracking on board. For those who need visual confirmation of settings, a 3.0-inch fixed LCD with a high 920,000-dot resolution provides a clear and detailed live view. Video capability tops out at VGA resolution at 30fps, which reflects the module's positioning as a stills-first tool.

The unit accepts SD and SDHC memory cards for storage, connects via USB, and weighs in at 355g with dimensions of 114 x 70 x 44mm. ISO sensitivity spans from 100 to 3200, giving reasonable flexibility across lighting conditions. Neither Wi-Fi nor Bluetooth connectivity is included.

Key Features — Ricoh S10 24-72mm F2.5-4.4 VC

10MP 1/1.7" Sensor: The compact 1/1.7-inch sensor delivers up to 3648x2736 pixel stills, suitable for prints and everyday shooting.

24-72mm Integrated Zoom: The built-in lens covers a versatile wide-to-short-telephoto range equivalent, handling everyday shooting scenarios without a lens swap.

f/2.5 Maximum Aperture: The bright wide-end aperture allows more light in low-light conditions and enables some background separation at close focus distances.

Optical Image Stabilization: In-lens OIS compensates for camera shake across the zoom range, helping produce sharper handheld shots in lower light.

GXR Modular System Unit: This self-contained lens-sensor module slots into the Ricoh GXR body, allowing the entire optical and imaging system to be swapped as one unit.

920,000-Dot Fixed LCD: The high-resolution 3.0-inch rear display provides a detailed and sharp live view for composing and reviewing images.

Camera Specifications — Ricoh S10 24-72mm F2.5-4.4 VC

Ricoh S10 24-72mm F2.5-4.4 VC full specifications
SpecDetail
Use CasesTravel
TypePoint and Shoot
Sensor1/1.7 inch
Resolution10MP
ISO Range100 – 3200
AF SystemContrast Detection
Max Photo Resolution3648x2736
Max Video ResolutionVGA
Max Frame Rate30fps
Image StabilizationOptical (OIS)
Display3.0 inch Fixed LCD
Display Resolution920,000 dots

Description — Ricoh S10 24-72mm F2.5-4.4 VC

The Ricoh GXR S10 Camera Module is built around a 10MP sensor in a 1/1.7-inch format, capturing stills at up to 3648x2736 pixels. The integrated lens spans 24-72mm with a maximum aperture of f/2.5-4.4, and optical image stabilization (OIS) is built directly into the unit to help manage shake throughout the zoom range. Autofocus is handled by a contrast detection system.

The module's 3.0-inch fixed LCD at 920,000 dots delivers a sharp, detailed view for composing and reviewing images. ISO sensitivity runs from 100 to 3200, providing a practical range for everyday shooting scenarios. For video, the module records at VGA resolution at up to 30fps.

Storage is handled via SD and SDHC cards, and the unit connects to a host device via USB. The module weighs 355g and measures 114 x 70 x 44mm, making it a compact self-contained unit within the GXR system. Neither Wi-Fi nor Bluetooth is included.

Pros — Ricoh S10 24-72mm F2.5-4.4 VC

  • ✓Optical image stabilization (OIS) built into the module helps reduce camera shake
  • ✓High-resolution 3.0-inch fixed LCD at 920,000 dots provides a detailed and sharp display
  • ✓Integrated 24-72mm zoom range with a maximum aperture of f/2.5 at the wide end

Cons — Ricoh S10 24-72mm F2.5-4.4 VC

  • ✗Video is limited to VGA resolution at 30fps, unsuitable for modern video work
  • ✗No Wi-Fi or Bluetooth connectivity limits wireless sharing options
  • ✗No viewfinder of any type; shooting is restricted to the fixed LCD

Reviews — Ricoh S10 24-72mm F2.5-4.4 VC

Videos — Ricoh S10 24-72mm F2.5-4.4 VC

Ricoh GXR S10 24-72mm Review - Tiny 10MP CCD Magic — snappiness

Resources & Downloads — Ricoh S10 24-72mm F2.5-4.4 VC

Manuals & Guides

Frequently Asked Questions — Ricoh S10 24-72mm F2.5-4.4 VC

What sensor size and resolution does the GXR S10 module use?+
The module uses a 1/1.7-inch sensor with a resolution of 10MP, producing still images at a maximum of 3648x2736 pixels.
Does this module have image stabilization?+
Yes, the GXR S10 includes optical image stabilization (OIS). In-body IS and digital IS are both absent, so stabilization is handled entirely within the lens-sensor module itself.
What is the video capability of this camera module?+
Video recording is limited to VGA resolution at a maximum frame rate of 30fps. There are no listed color profiles or higher resolution video modes in the specifications.
What memory cards are compatible with this module?+
The GXR S10 module accepts SD and SDHC memory cards for image storage.
Does the module support wireless connectivity?+
No. Both Wi-Fi and Bluetooth are absent from this module. It does include USB connectivity for wired data transfer.
What autofocus system does the S10 module use?+
The module uses a contrast detection autofocus system. Eye tracking and subject tracking are not supported, and the number of focus points is not specified in the data.
