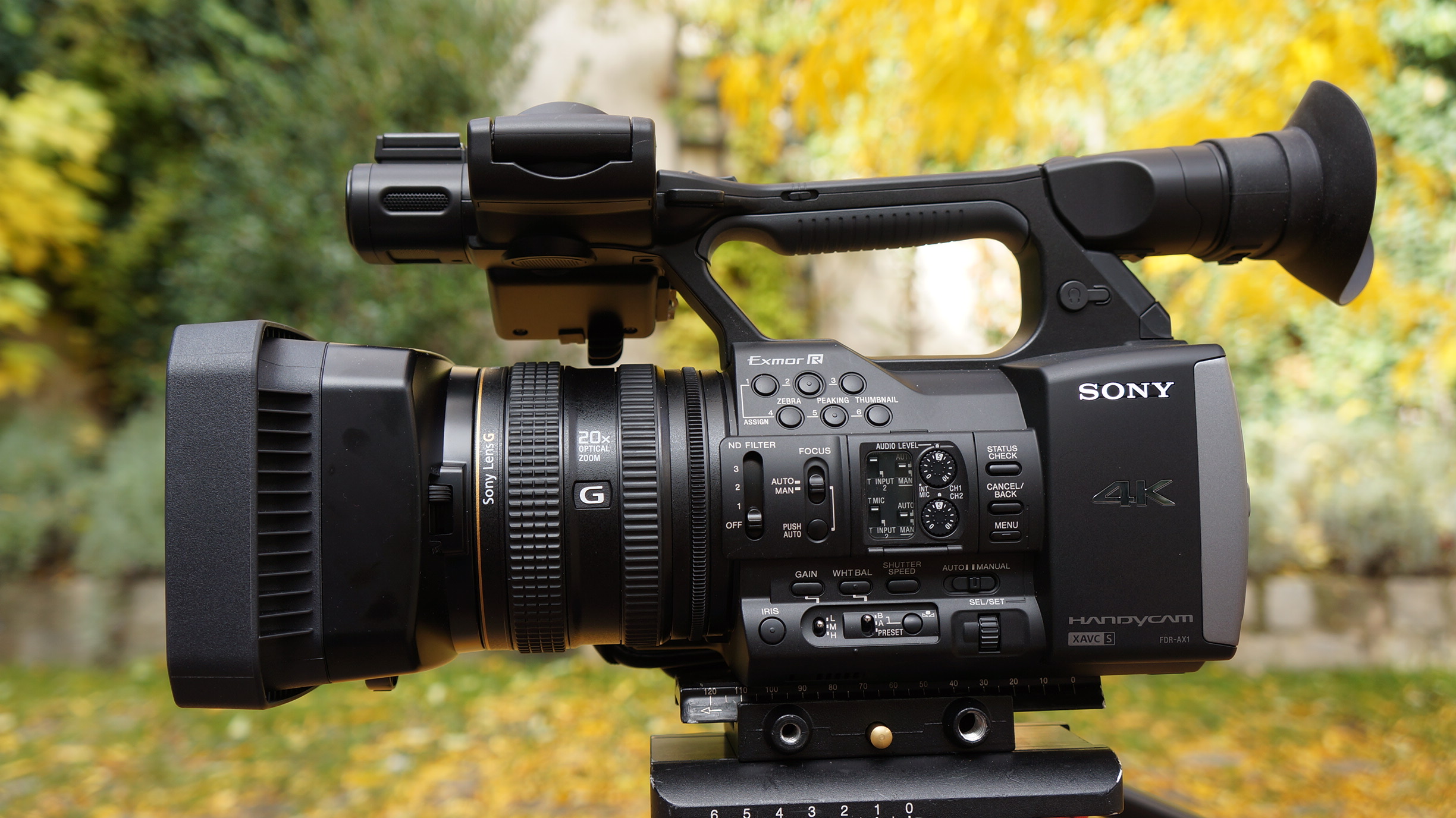

Sony FDR-AX1 Cinema Camera
The Sony FDR-AX1 is a 8.3 MP 1/2.3 inch cinema camera — with 4K video. Used copies start from $1,238.62 on GearFocus, with buyer protection on every purchase.
Sony FDR-AX1 Cinema Camera
Used Sony FDR-AX1 Listings on GearFocus
Camera Overview — Sony FDR-AX1
Key Features — Sony FDR-AX1
4K UHD Video Recording: Captures footage at 3840x2160 resolution at up to 30fps, covering broadcast, documentary, and event production needs.
Integrated G Lens with OIS: Built-in Sony G lens with optical image stabilization reduces camera shake during handheld operation without the image softening associated with digital stabilization.
Dual XLR Audio Inputs: Two professional XLR inputs with phantom power support allow direct connection of microphones and other balanced audio sources for field production.
XQD Card Recording: Records to XQD media, a fast and reliable storage format designed to handle the sustained write speeds required by 4K video workflows.
3.5-Inch Xtra Fine LCD: 1,229,000-dot LCD monitor provides a large, detailed view for exposure and focus checking during shooting or playback.
Electronic Viewfinder: Built-in EVF offers a high-resolution eye-level monitoring option useful in bright outdoor conditions.
Camera Specifications — Sony FDR-AX1
| Spec | Detail |
|---|---|
| Use Cases | Documentary |
| Type | Other |
| Sensor | 1/2.3 inch |
| Resolution | 8.3 MP |
| Processor | Professional 4K image processor |
| ISO Range | 100 – 3200 |
| AF System | Contrast Detection, Manual Focus Only |
| AF Points | Central area focusing |
| Max Photo Resolution | N/A (video-only device) |
| Max Video Resolution | 4K |
| Max Frame Rate | 30fps |
| Bit Depth | 8-bit |
Description — Sony FDR-AX1
The Sony FDR-AX1 is a dedicated video device built around an 8.3 MP, 1/2.3-inch sensor and a professional 4K image processor, capable of capturing footage at a maximum resolution of 4K UHD (3840 x 2160). Frame rate options of 24fps, 30fps, and 60fps cover a broad range of production formats, while 8-bit color depth and color profiles including Standard and customizable paint functions give operators flexibility over their image look in-camera. Recording is to XQD media, and the camera's ISO range spans 100 to 3200. Optical Image Stabilization (OIS) is onboard to assist with handheld operation.
The audio section features dual XLR inputs and a 3.5mm stereo headphone jack, while a Full HDMI output supports external monitoring. The 3.5-inch Xtra Fine LCD at 1,229,000 dots and 0.45-inch EVF at 1.5 million dots offer flexible on-set monitoring. The camera weighs 2,780g and measures 178 x 187 x 362 mm, with a body constructed from high-impact plastic with a metal chassis.
The NP-F970 InfoLITHIUM battery supports up to 170 minutes of recording per charge.
Pros — Sony FDR-AX1
- ✓4K UHD recording at 3840 x 2160 with frame rate options of 24fps, 30fps, and 60fps suits a variety of production needs
- ✓Dual XLR inputs combined with a 3.5mm stereo headphone jack deliver a professional audio monitoring and recording setup
- ✓Optical image stabilization (OIS) helps reduce camera shake during handheld shooting
Cons — Sony FDR-AX1
- ✗1/2.3-inch sensor size is relatively small for a professional cinema camera, which may limit dynamic range and low-light performance
- ✗ISO range tops out at 3200, which is modest compared to many professional video-oriented cameras
- ✗8-bit color depth limits post-production grading flexibility compared to cameras offering 10-bit or higher output
Videos — Sony FDR-AX1
Sony FDR AX1 4K video camera hands on review — Maarten Heilbron
Frequently Asked Questions — Sony FDR-AX1
What is the maximum video resolution and what frame rates are available?+
The FDR-AX1 records up to 4K UHD at 3840 x 2160. Supported frame rates are 24fps, 30fps, and 60fps, with 60fps being the maximum available frame rate.
What storage media does the FDR-AX1 use?+
The camera records to XQD cards. This is the only supported storage media format listed in the specifications.
Does the FDR-AX1 have professional audio inputs?+
Yes. The camera is equipped with dual XLR inputs for professional microphone connectivity. A 3.5mm stereo headphone jack is also included for audio monitoring.
What type of image stabilization does the FDR-AX1 use?+
The FDR-AX1 uses Optical Image Stabilization (OIS). There is no in-body or digital stabilization — only the optical system is present according to the specifications.
What monitoring options are available on the FDR-AX1?+
The camera features a 3.5-inch Xtra Fine LCD display with 1,229,000 dots and a 0.45-inch electronic viewfinder with 1.5 million dots. A Full HDMI output is also available for connecting an external monitor.
How long does the battery last, and what battery type does it use?+
The FDR-AX1 uses an NP-F970 InfoLITHIUM battery, which is rated for up to 170 minutes of recording time. The NP-F970 is a widely available battery type in professional video production.
