Drone Overview — Yuneec H520

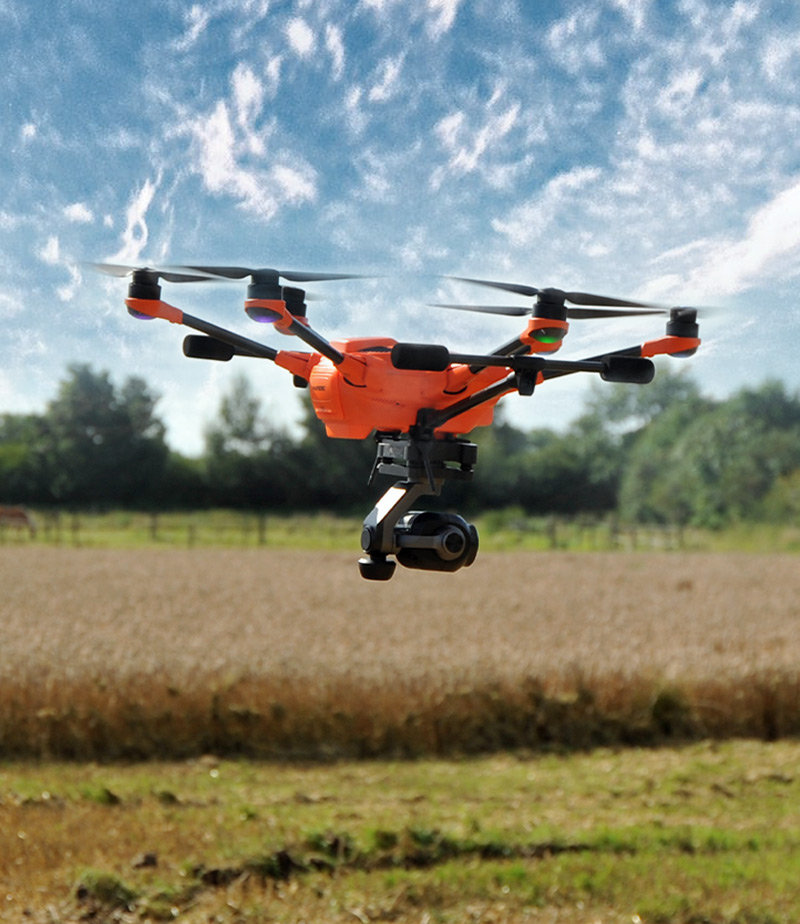

The Yuneec H520 is a professional hexacopter built for commercial and industrial aerial imaging work. At its core is a 1-inch, 20-megapixel sensor capable of capturing stills at 5472 x 3648 pixels in both JPEG and DNG (RAW) formats, giving operators flexibility in post-processing workflows. Video recording reaches 4K resolution with 10-bit in-camera color processing, and a broad frame rate selection spanning 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, and up to 120fps covers everything from cinematic capture to slow-motion analysis.

Gimbal stabilization keeps footage steady throughout flight, complementing the 1-inch sensor's imaging capabilities. The ISO range runs from 100 to 12800, providing usable sensitivity across varied lighting conditions. The H520 ships with the ST16S ground station controller, which features a built-in 7.0-inch 720p LCD touchscreen, eliminating the need for a separate mobile device.

Connectivity options include Wi-Fi, USB, a 3.5mm headphone jack, and HDMI output. Storage is handled via microSD, microSDHC, or microSDXC cards. The drone weighs 1633g, measures 520 x 455 x 295 mm, and is constructed from industrial-grade plastic and composite materials with dust-resistant protection.

The 4S 5250mAh 15.2V LiPo battery delivers approximately 25 to 28 minutes of flight time per charge.

Key Features — Yuneec H520

20MP 1-Inch Sensor: Captures stills at 5472 x 3648 pixels in JPEG or DNG (RAW), giving operators full flexibility in post-processing workflows.

4K Video Recording: Records 4K footage for high-resolution aerial capture suited to survey, inspection, and cinematic applications.

High Frame Rate Options: Supports multiple frame rates including cinematic and high frame rate options at lower resolutions for slow-motion capture.

3-Axis Gimbal Stabilization: Keeps footage smooth and level throughout flight without relying on digital stabilization that crops the frame.

Integrated ST16S Controller: Includes a dedicated ground station with a built-in 7.0-inch 720p LCD touchscreen, removing the need for a separate mobile device or tablet.

Hexacopter Redundancy: Six-rotor configuration allows the aircraft to maintain controlled flight even if one motor fails, adding a layer of reliability for commercial operations.

Drone Specifications — Yuneec H520

Yuneec H520 full specifications
SpecDetail
Iso min100
Iso max12800
Display size7.0 inches
Display typeST16S Controller LCD Touchscreen
Display resolution720p
TypeOther
Autofocus systemManual Focus Only
Autofocus eye TrackingNo
Autofocus focus PointsFixed focus
Autofocus subject TrackingNo
Battery type4S 5250mAh 15.2V LiPo
Battery battery Life25-28 minutes flight time

Description — Yuneec H520

The Yuneec H520 is a professional-grade hexacopter designed for demanding commercial and industrial aerial imaging applications. Its 20 MP sensor with a 1-inch type measures up to 5472 x 3648 px per still image, with both JPEG and DNG (RAW) capture formats supported. Video performance reaches 4K resolution with 10-bit in-camera color processing and frame rate options of 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, and 120fps.

Footage is kept steady by gimbal stabilization, while the ISO range of 100–12800 allows shooting in a variety of lighting conditions. The integrated ST16S controller eliminates the need for a separate display device, featuring a 7.0-inch 720p LCD touchscreen for real-time monitoring. Connectivity includes Wi-Fi, USB, HDMI output, and a 3.5mm headphone jack.

Media is stored on microSD, microSDHC, or microSDXC cards. Built from industrial-grade plastic and composite materials with dust-resistant protection, the H520 weighs 1633g and measures 520 x 455 x 295 mm. The 4S 5250mAh 15.2V LiPo battery supports 25 to 28 minutes of flight time per charge.

Pros — Yuneec H520

  • ✓1-inch, 20 MP sensor with 5472 x 3648 px maximum resolution and DNG (RAW) support for professional post-processing
  • ✓4K video with 10-bit in-camera color processing and a wide frame rate range up to 120fps
  • ✓Integrated ST16S controller with a 7.0-inch 720p LCD touchscreen eliminates the need for a separate device

Cons — Yuneec H520

  • ✗Manual focus only — no autofocus system, subject tracking, or eye tracking available
  • ✗At 1633g, the H520 is a substantial drone that may require additional transport planning
  • ✗No burst mode shooting and no maximum burst frame rate specified

Videos — Yuneec H520

Yuneec H520 - All About The H520 Battery — Terrestrial Imaging LLC

Resources & Downloads — Yuneec H520

Manuals & Guides

Frequently Asked Questions — Yuneec H520

What image formats does the Yuneec H520 support?+
The H520 captures stills in both JPEG and DNG (RAW) formats, as listed under photoSpecs.colorProfiles. This gives operators the option to shoot compressed files for quick delivery or RAW files for maximum post-processing control.
What is the maximum video resolution and frame rate?+
The H520 records video at a maximum resolution of 4K. Supported frame rates include 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, and 120fps, making it suitable for both standard and high-frame-rate slow-motion capture.
Does the H520 come with its own controller display?+
Yes. The drone is paired with the ST16S controller, which features a built-in 7.0-inch 720p LCD touchscreen. This means you do not need to attach a separate smartphone or tablet to operate the aircraft.
How long does the battery last per flight?+
The included 4S 5250mAh 15.2V LiPo battery provides approximately 25 to 28 minutes of flight time, as stated in the battery specifications.
Is the H520 weather sealed?+
The H520 carries a dust-resistant rating according to its bodyDesign.weatherSealing specification. It is not rated for full weather sealing, so operators should exercise caution in wet or heavily exposed environments.
What memory cards does the H520 accept?+
The H520 supports microSD, microSDHC, and microSDXC storage cards, as listed in the storageMedia specifications. Users should select a card appropriate for their recording resolution and frame rate requirements.
