Yuneec Typhoon H Plus Drone

The Yuneec Typhoon H Plus is a drone from Yuneec — known for its 20MP 1-Inch Sensor and RAW (DNG) Photo Capture. Check GearFocus for current availability, with buyer protection on every purchase.

Yuneec Typhoon H Plus Drone

Yuneec Typhoon H Plus Drone

Get notified when one lists.

We'll text or email you the moment a Yuneec Typhoon H Plus Drone is listed on GearFocus.

Have a Yuneec Typhoon H Plus sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Yuneec Typhoon H Plus on GearFocus

Drone Overview — Yuneec Typhoon H Plus

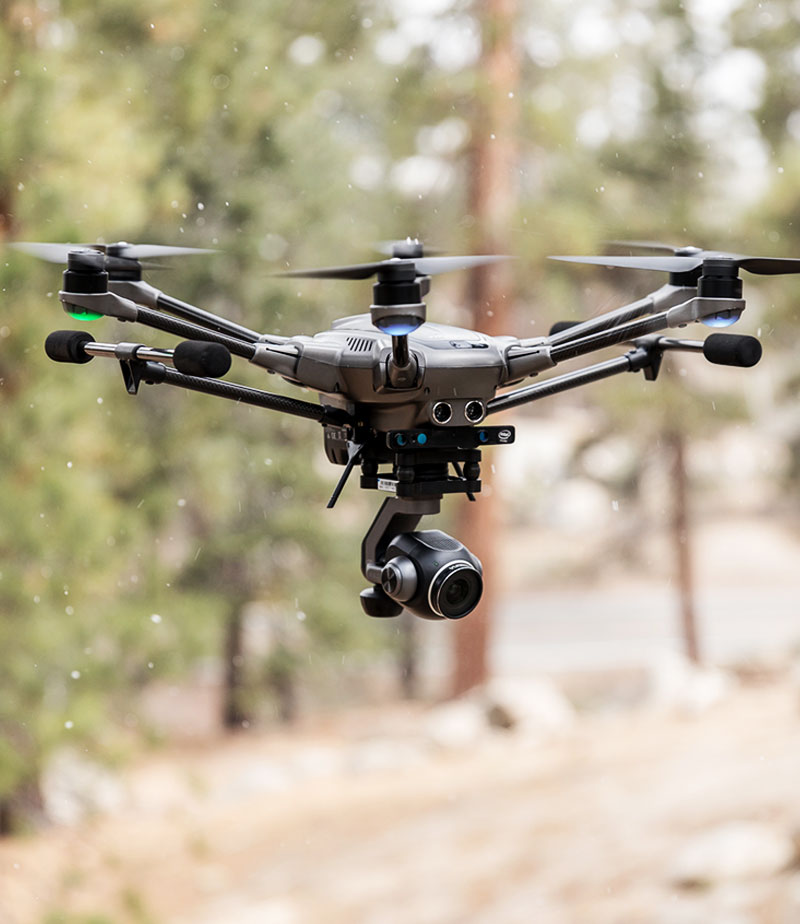

The Yuneec Typhoon H Plus is a hexacopter drone built around a 20 MP, 1-inch sensor camera capable of capturing stills at 5472x3648 px resolution with support for both Standard and RAW (DNG) color profiles. For video, it reaches up to 4K maximum resolution with a broad range of frame rates spanning 24fps all the way up to 120fps, recorded in 8-bit color depth. Gimbal stabilization keeps footage steady without relying on in-body or digital image stabilization.

The camera's ISO range runs from 100 to 6400, and burst mode allows up to 7 frames per second for fast-moving subjects. Images and video are stored on microSD cards. The drone is powered by a 4S 5250mAh LiPo battery rated for up to 28 minutes of flight time.

Connectivity includes USB and an HDMI output on the remote control. The included ST16S remote features a built-in 7-inch 720p (1280x720) LCD touchscreen, eliminating the need to mount a separate smartphone or tablet. The drone body is constructed from composite material and weighs 275g, with dimensions of 115x80x130mm.

No weather sealing is present. Autofocus is handled by a contrast detection system. This package suits aerial photographers who prioritize a large sensor and versatile frame rate options.

Key Features — Yuneec Typhoon H Plus

20MP 1-Inch Sensor: Larger than typical drone sensors, the 1-inch 20MP sensor captures more light and detail, producing stills at 5472x3648 px resolution.

RAW (DNG) Photo Capture: Supports DNG alongside Standard JPEG, giving photographers full control over exposure and color in post-processing.

4K Video Recording: Records 4K video with high frame rate options at lower resolutions, supporting both cinematic and slow-motion capture.

3-Axis Gimbal Stabilization: Mechanical gimbal keeps the camera steady during flight, delivering smooth footage without relying on digital stabilization that crops the frame.

Hexacopter Redundancy: Six-rotor design allows the drone to maintain stable flight even if one motor fails, adding a layer of safety over standard quadcopters.

Integrated ST16S Remote: The included controller features a built-in 7-inch 720p LCD touchscreen, so no smartphone or tablet is required to fly or monitor footage.

Drone Specifications — Yuneec Typhoon H Plus

Yuneec Typhoon H Plus full specifications
SpecDetail
Use CasesReal Estate, Aerial / Drone
Iso min100
Iso max6400
Display size7 inches
Display typeLCD touchscreen (on ST16S remote)
Display resolution720p (1280x720)
TypeOther
Autofocus systemContrast Detection
Autofocus eye TrackingNo
Autofocus subject TrackingNo
Battery type4S 5250mAh LiPo
Battery battery LifeUp to 28 minutes flight time

Description — Yuneec Typhoon H Plus

The Yuneec Typhoon H Plus pairs a 20 MP, 1-inch sensor with a maximum still resolution of 5472x3648 px and support for both Standard and RAW (DNG) color profiles, giving aerial photographers genuine flexibility in post-processing. Burst mode tops out at 7 frames per second, while the ISO range of 100–6400 handles a variety of lighting conditions. On the video side, maximum resolution reaches 4K across a comprehensive frame rate lineup — 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, and 120fps — all recorded in 8-bit color. Gimbal stabilization keeps the camera steady in flight without digital or in-body IS.

The included ST16S remote features a built-in 7-inch, 720p (1280x720) LCD touchscreen and an HDMI output, while the drone connects via USB for file transfer. Storage is handled by microSD. The airframe is built from composite material, weighing 275g with dimensions of 115x80x130mm, and is powered by a 4S 5250mAh LiPo battery rated for up to 28 minutes of flight time.

No weather sealing is included.

Pros — Yuneec Typhoon H Plus

  • ✓Large 1-inch, 20 MP sensor with 5472x3648 px maximum still resolution
  • ✓RAW (DNG) capture support alongside Standard color profile
  • ✓Wide video frame rate selection including 24fps, 30fps, 60fps, and up to 120fps at 4K maximum resolution

Cons — Yuneec Typhoon H Plus

  • ✗No weather sealing, limiting use in adverse conditions
  • ✗Video color depth is 8-bit only with only a Standard color profile — no log format available
  • ✗No Wi-Fi or Bluetooth connectivity on the drone

Reviews — Yuneec Typhoon H Plus

Videos — Yuneec Typhoon H Plus

Yuneec Typhoon H Review, vs DJI Phantom 4!! (4K) — AuthenTech - Ben Schmanke

Resources & Downloads — Yuneec Typhoon H Plus

Manuals & Guides

Frequently Asked Questions — Yuneec Typhoon H Plus

What resolution can the Yuneec Typhoon H Plus shoot stills and video at?+
The camera captures stills at up to 5472x3648 px at 20 MP. For video, the maximum resolution is 4K. Both RAW (DNG) and Standard color profiles are available for stills.
What frame rates are available for video recording?+
The Typhoon H Plus supports 24fps, 25fps, 30fps, 48fps, 50fps, 60fps, and 120fps. All video is recorded in 8-bit color depth with a Standard color profile.
Does the remote control have a built-in screen?+
Yes. The ST16S remote control includes a built-in 7-inch LCD touchscreen with 720p (1280x720) resolution, so no separate mobile device is required. It also features an HDMI output.
How long does the battery last and what type does it use?+
The drone uses a 4S 5250mAh LiPo battery rated for up to 28 minutes of flight time per charge.
Is the Yuneec Typhoon H Plus weather sealed?+
No. The specifications indicate no weather sealing, so the drone should be operated in dry conditions.
What storage media does the drone use?+
The Typhoon H Plus records to microSD cards. Files can be transferred via the USB connection.
