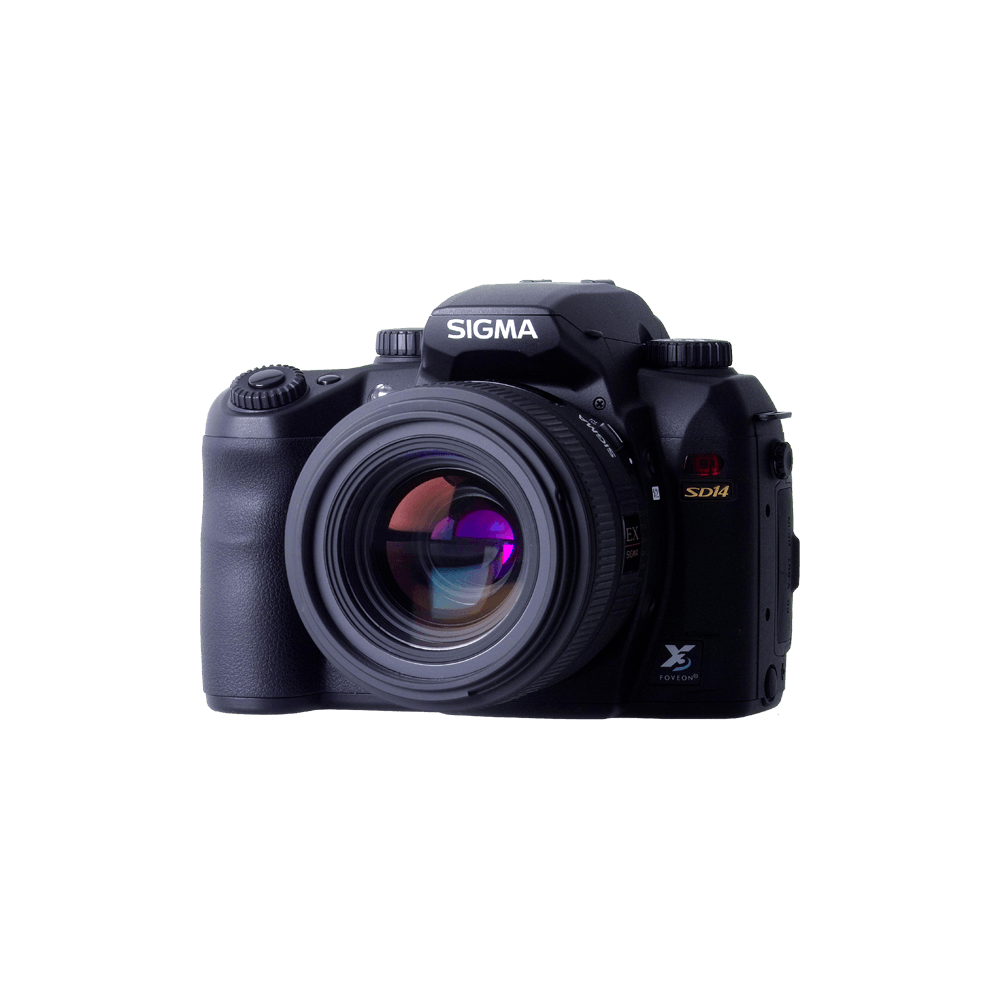

Sigma SD14 DSLR Camera

The Sigma SD14 is a 4.7 MP effective (2652 x 1768 x 3 layers, 14.1 million photodiodes) APS-C DSLR camera — known for its Foveon X3 APS-C Sensor and 14.1 Million Photodiodes. Check GearFocus for current availability, with buyer protection on every purchase.

Sigma SD14 DSLR Camera

Sigma SD14 DSLR Camera

Get notified when one lists.

We'll text or email you the moment a Sigma SD14 DSLR Camera is listed on GearFocus.

Have a Sigma SD14 sitting in your bag?

You'd be the first listing for this model.
Serious buyers are already watching — list yours in minutes.

Sell your Sigma SD14 on GearFocus

Available Now on GearFocus

SIGMA FP DIRECTORS VIEWFINDER CAMERA COMPLETE
SigmaExcellent

SIGMA FP DIRECTORS VIEWFINDER CAMERA COMPLETE

1 watching
$1,300.00
Sigma fp Body w/45mm kit SC:N/A
SigmaLike New

Sigma fp Body w/45mm kit SC:N/A

$1,299.99
Trusted partner
Sigma FP Mirrorless Camera and Accessories
SigmaExcellent

Sigma FP Mirrorless Camera and Accessories

1 watching
$1,240.00
Sigma DP2 Quattro
SigmaGood

Sigma DP2 Quattro

$1,099.00
Sigma DP1 Quattro
SigmaExcellent

Sigma DP1 Quattro

$999.00

Overview — Sigma SD14

The Sigma SD14 is a DSLR camera built around a uniquely structured sensor that sets it apart from conventional single-layer imaging systems. Its APS-C sensor delivers 4.7 MP effective resolution across 2652 x 1768 pixels, but the architecture goes deeper — 14.1 million photodiodes arranged across three layers are processed by Sigma's TRUE (Three-layer Responsive Ultimate Engine) image processor. On the output side, the camera produces interpolated JPEGs at up to 4608 x 3072 pixels, while RAW files reflect the native 2652 x 1768 capture.

The SD14 uses the Sigma SA lens mount, keeping it within Sigma's own optical ecosystem. Autofocus is handled by a 5-point phase detection system, and the optical pentaprism SLR viewfinder provides a traditional shooting experience. ISO sensitivity spans 100 to 800.

Burst shooting is supported at up to 3 frames per second. The body is constructed from polycarbonate with a metal chassis, weighs 700g, and measures 144 x 107 x 81 mm. Storage is via CompactFlash cards, and the 2.5-inch TFT LCD display resolves at 150,000 pixels.

A built-in pop-up flash with a guide number of 11 (ISO 100) is included, along with a standard ISO hot shoe. The BP-21 Li-ion battery is rated for approximately 500 shots per charge under CIPA standards. No video recording capability is listed in the specifications.

Color output supports both sRGB and Adobe RGB profiles.

Key Features — Sigma SD14

Foveon X3 APS-C Sensor: Captures full color data at every pixel across three stacked layers, unlike conventional sensors that interpolate color from a single-layer Bayer array.

14.1 Million Photodiodes: Three layers of 4.7MP each combine to record RGB information simultaneously, resulting in images with distinctive color accuracy and detail rendering.

TRUE Image Processor: Sigma's Three-layer Responsive Ultimate Engine processes the multi-layer sensor data to produce the final image output.

Sigma SA Lens Mount: Compatible exclusively with Sigma SA-mount lenses, keeping the system within Sigma's own optical lineup.

5-Point Phase Detection AF: Phase detection autofocus system with five focus points for reliable subject acquisition in typical shooting conditions.

Optical Pentaprism Viewfinder: Traditional SLR pentaprism viewfinder provides a direct, lag-free optical view of the scene.

Specifications — Sigma SD14

Sigma SD14 full specifications
SpecDetail
Use CasesStudio
TypeDSLR
SensorAPS-C
Resolution4.7 MP effective (2652 x 1768 x 3 layers, 14.1 million photodiodes)
ProcessorSigma TRUE (Three-layer Responsive Ultimate Engine)
ISO Range100 – 800
AF SystemPhase Detection
AF Points5 points
Max Photo Resolution4608 x 3072 (interpolated JPEG), 2652 x 1768 (RAW)
Burst Rate3 fps
Image StabilizationNone
Display2.5 inches TFT LCD

Description — Sigma SD14

The Sigma SD14 is a DSLR built on the Sigma SA lens mount with an APS-C sensor that captures 14.1 million photodiodes across three layers, processed by the Sigma TRUE (Three-layer Responsive Ultimate Engine) image processor. Effective resolution is 4.7 MP at a native 2652 x 1768 pixels in RAW, with interpolated JPEG output reaching 4608 x 3072 pixels. Both sRGB and Adobe RGB color profiles are available.

Autofocus uses a 5-point phase detection system, and the optical pentaprism SLR viewfinder gives a classic DSLR shooting feel. Burst mode reaches 3 frames per second. The ISO range runs from 100 to 800.

A 2.5-inch TFT LCD at 150,000 pixels handles image review. The built-in pop-up flash carries a guide number of 11 (ISO 100), with a standard ISO hot shoe and wireless flash support also on board. The body weighs 700g, measures 144 x 107 x 81 mm, and is built from polycarbonate with a metal chassis.

Storage is via CompactFlash, and the BP-21 Li-ion battery is rated for approximately 500 shots per charge under CIPA conditions.

Pros — Sigma SD14

  • ✓Three-layer sensor architecture with 14.1 million photodiodes processed by the TRUE engine for distinctive per-pixel color capture
  • ✓Dual color profile support — sRGB and Adobe RGB — giving flexibility for different output workflows
  • ✓Built-in pop-up flash (GN11 at ISO 100) plus standard ISO hot shoe and wireless flash support with compatible Sigma flash units

Cons — Sigma SD14

  • ✗ISO range tops out at 800, which is narrow compared to most DSLRs and limits low-light flexibility
  • ✗No video recording capability listed in specifications
  • ✗No image stabilization of any kind — neither in-body nor digital

Videos — Sigma SD14

Trying Sigma's Best Foveon Camera Yet — snappiness

Resources & Downloads — Sigma SD14

Manuals & Guides

Frequently Asked Questions — Sigma SD14

What lenses are compatible with the Sigma SD14?+
The SD14 uses the Sigma SA lens mount, so it is compatible with lenses designed for that mount. No other mount systems are listed as compatible in the specifications.
What is the actual capture resolution of the SD14?+
The native RAW capture resolution is 2652 x 1768 pixels (4.7 MP effective), produced by 14.1 million photodiodes across three sensor layers. Interpolated JPEG output can reach 4608 x 3072 pixels.
Does the SD14 have any flash capability?+
Yes. The camera includes a built-in pop-up flash with a guide number of 11 at ISO 100. It also has a standard ISO hot shoe for external flash units and supports wireless flash with the Sigma EF-500 DG SUPER.
What storage media does the SD14 use?+
The SD14 records to CompactFlash (CF) cards. No other storage formats are listed in the specifications.
Can the SD14 record video?+
No. The video specifications for the SD14 show no listed resolution, frame rates, or other video parameters, indicating the camera does not offer video recording functionality.
Is the SD14 weather sealed?+
No. The body design specifications explicitly list weather sealing as 'None.' The body is constructed from polycarbonate with a metal chassis but offers no environmental protection rating.
