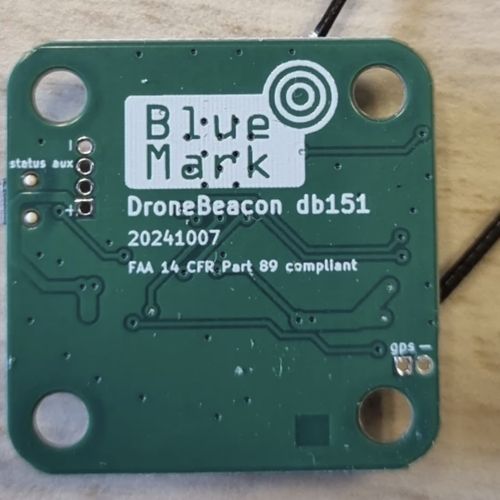

NEW! Bluemark DB151 pcb DroneBeacon FAA Remote ID - The ORIGINAL Anti-Karen RID Module!

This is the official US site for purchasing the BlueMark the modules through Alien Drones! BlueMark extends its family of RemoteID transponders for FPV drones with the db151pcb module. DroneBeacon FPV is a family of modules that are so-called direct or broadcast audited Remote ID long-range transponders (both FAA and EU). Audited RemoteID means that an external audit has confirmed that these modules are compliant with regulation in the USA and EU.

Specifcations:

Bluetooth and WiFi 2.4GHz, output power (ERP): + 20 dBm (100 mW)

Positioning

GPS, 2.5m positioning precision

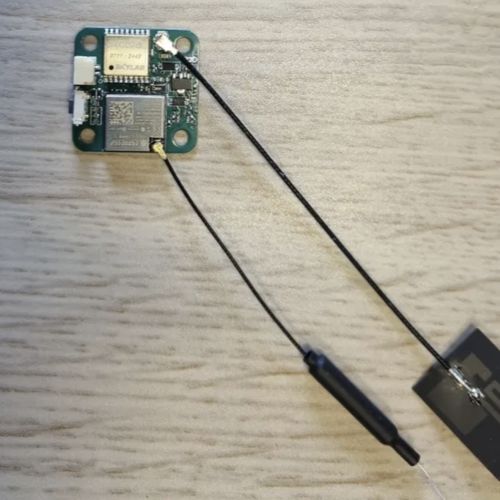

Antennas

3 dBi WLAN/BLE antenna (IPEX3 connector)

0 dBi GPS antenna (IPEX connector)

Power

2-pin JST-GH 1.25mm connector 4.75 – 15 V

auxiliary unpopulated 2.54mm header 4.75 – 15 V

reverse polarity protection

voltage spike protection

Fastening mechanism

4x M3 screws

Operating temperature

-10°C to +50°C

Dimensions

27 x 27 x 5 mm

20 x 20 mm mounting hole grid M3.

Weight

~3.8 gram (including antennas, without ~2.5 gram)

How to Configure Video: https://youtu.be/6nrq-DlshcI

Bluemark site Manuals and firmware here: https://dronescout.co/dronebeacon-ext-power/?v=796834e7a283
